Yamaha VX110 Sport User Manual

5-81
E
POWR
CONNECTING RODS AND PISTONS

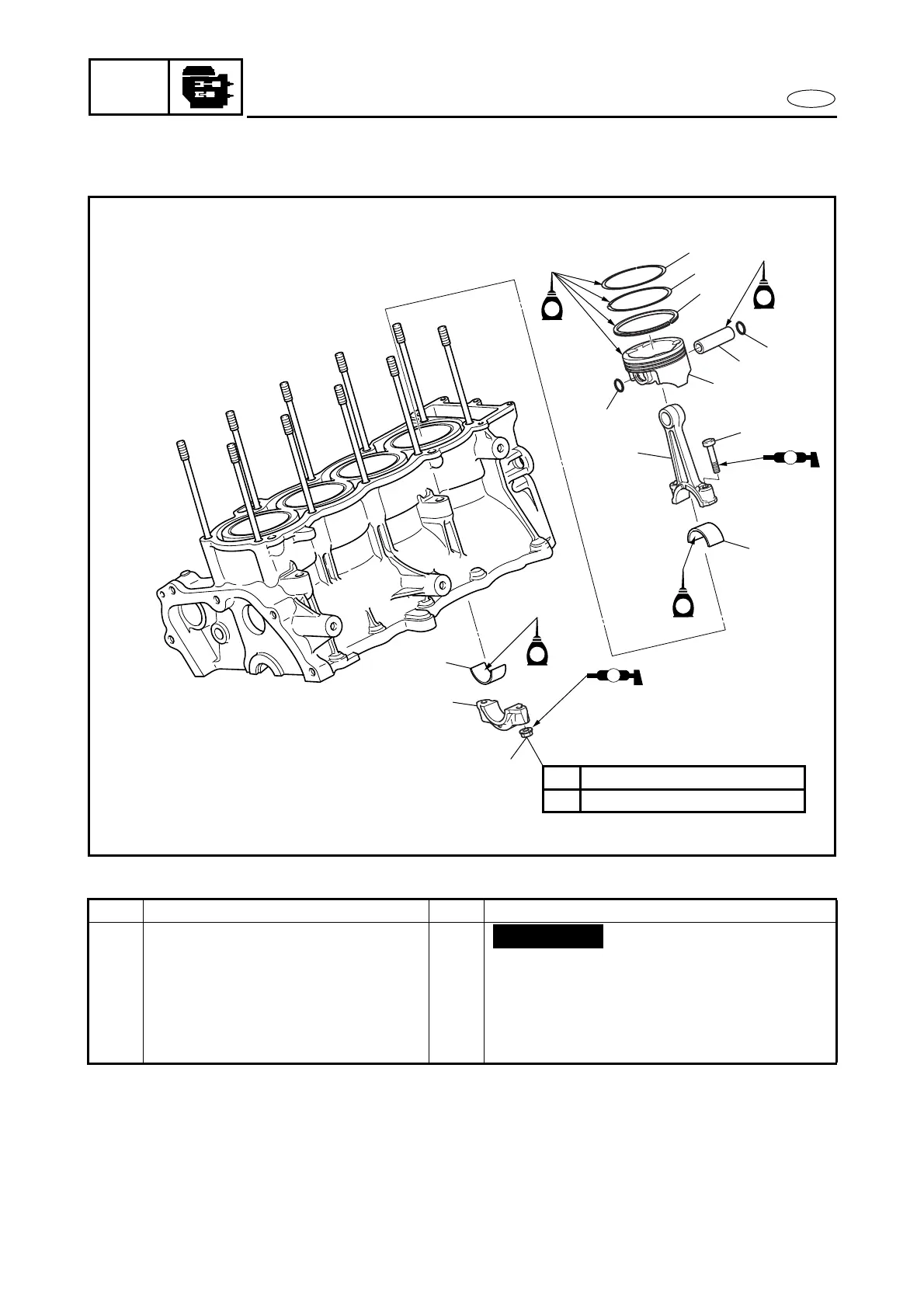

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
8Bolt 8
9 Big end upper bearing 4
10 Top ring 4
11 2nd ring 4
12 Oil ring 4
Reverse the removal steps for installation.
E
E
E
E
1
2
3
10
11
12
4
5
6
8
7
9
2nd 120 ± 5˚
1st 20 N • m (2.0
kgf
•
m, 14 ft
•
Ib)
MM
MM
4
Not reusable

Yamaha VX110 Sport Specifications

General

Displacement	1052cc
Type	Personal Watercraft
Width	46.1 inches
Seating Capacity	2
Engine Type	4-stroke, 4-cylinder
