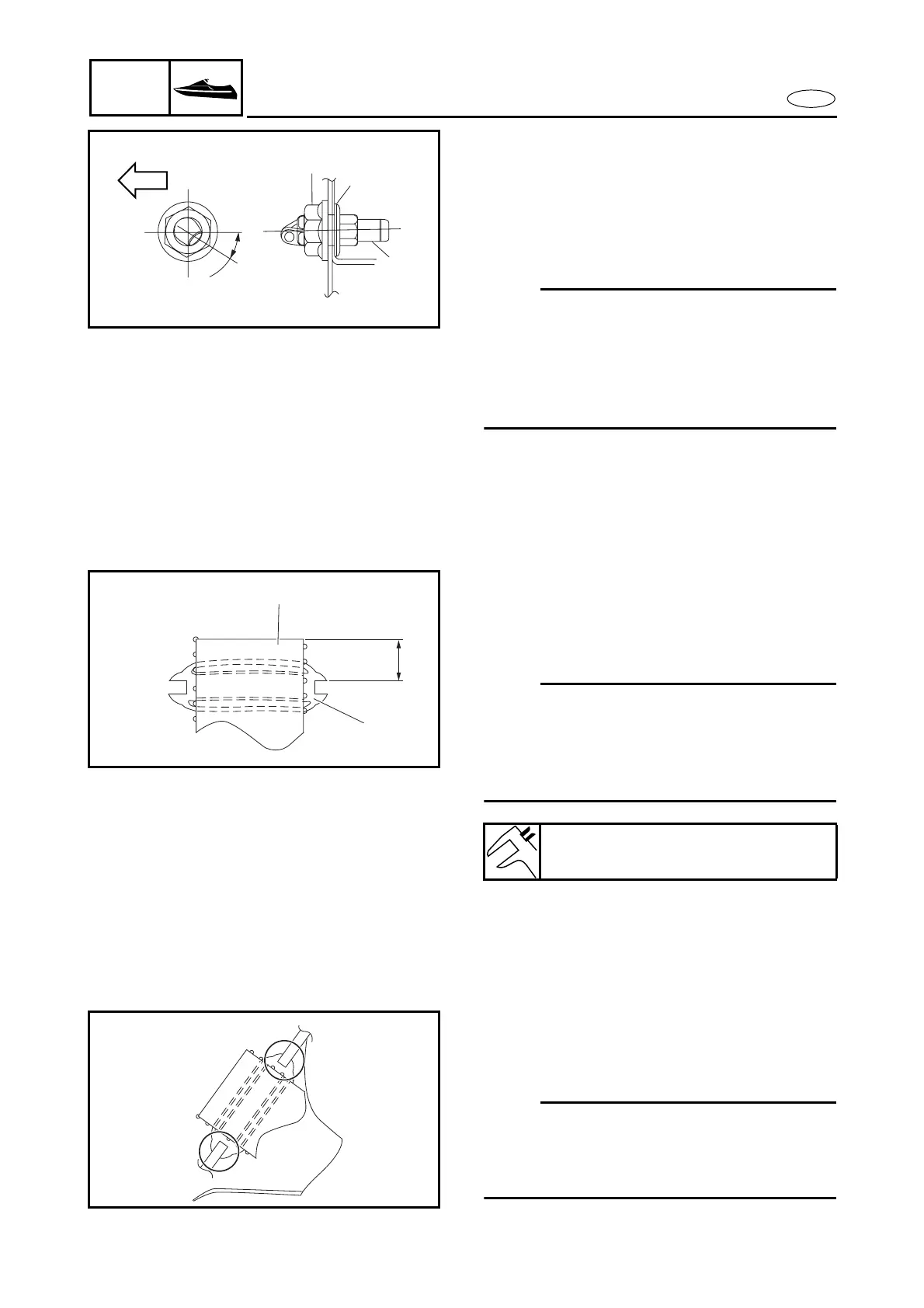

Cooling water pilot outlet installation
1. Install:
• Cooling water pilot outlet
1
• Seal
2
• Nut
3
NOTE:
• When installing the cooling water pilot outlet,
face the discharge hole toward the stern and
downward at a 30° angle from the horizontal
line as shown in the illustration.
• Tighten the nut while holding the cooling
water pilot outlet in place.
30Ëš
FWD
3
1
2
Grommet installation
1. Install:
• Ventilation hose
1
• Grommet
2
NOTE:
Install the grommet on the ventilation hose,
making sure that the end of the hose protrudes
the specified length
a from the groove around
the outside of the grommet as shown in the
illustration.
Specified length a:
30–40 mm (1.18–1.57 in)
1
2
a
Ventilation hose assembly installation
1. Install:
• Ventilation hose assembly
NOTE:
When installing the ventilation hose assembly,
make sure that the grommet is properly seated
in the hole in the inner hull as shown in the
illustration.
