6-1
E
JET
PUMP
INTAKE GRATE AND RIDE PLATE

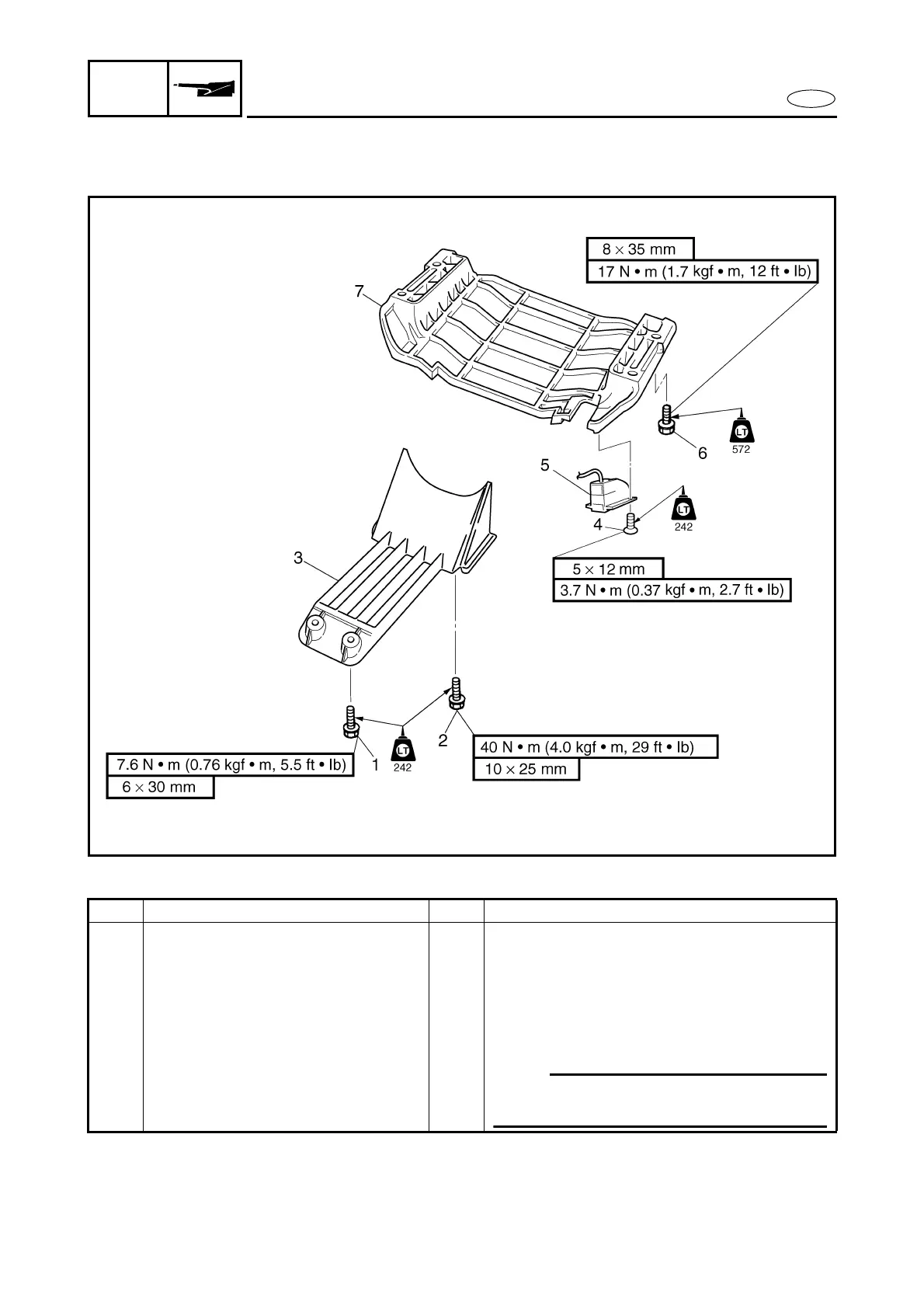

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
INTAKE GRATE, RIDE PLATE,
AND INTAKE DUCT REMOVAL
Follow the left “Step” for removal.
1Bolt 2
2Bolt 2
3 Intake grate 1
4Screw 4
5 Speed sensor 1
NOTE:
Route the speed sensor lead between the
jet pump unit and the bilge hose.
INTAKE GRATE AND RIDE PLATE
