6-9
E
JET
PUMP
IMPELLER DUCT AND DRIVE SHAFT

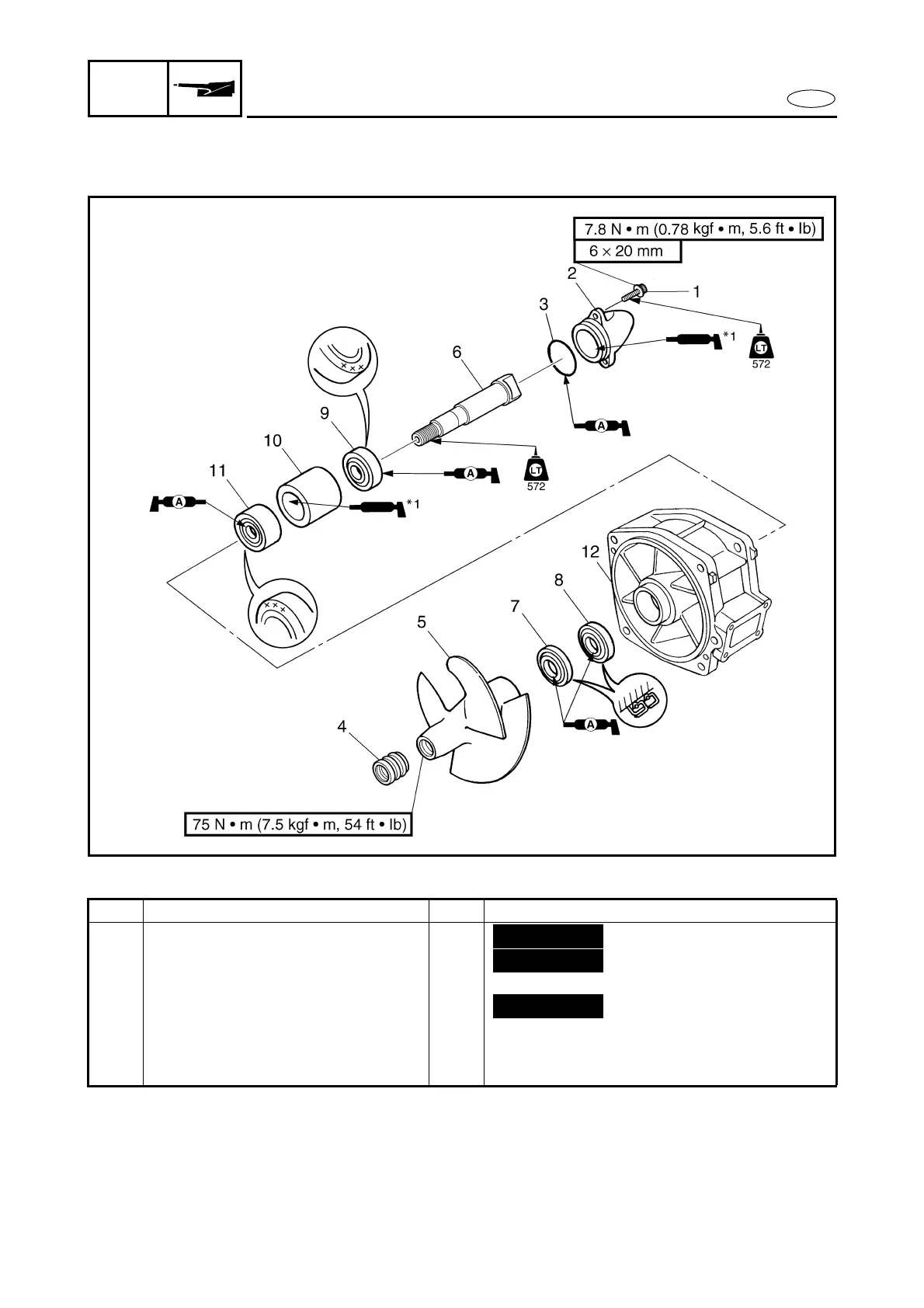

EXPLODED DIAGRAM
*1: EPNOC grease AP #0
Step Procedure/Part name Q’ty Service points
8 Oil seal 1
9 Rear bearing 1
10 Spacer 1
11 Front bearing 1
12 Impeller duct 1
Reverse the disassembly steps for
assembly.
Not reusable
Not reusable
Not reusable
