Yamaha VX110 Sport User Manual

7-8
E
– +
ELEC
ECM AND RECTIFIER/REGULATOR

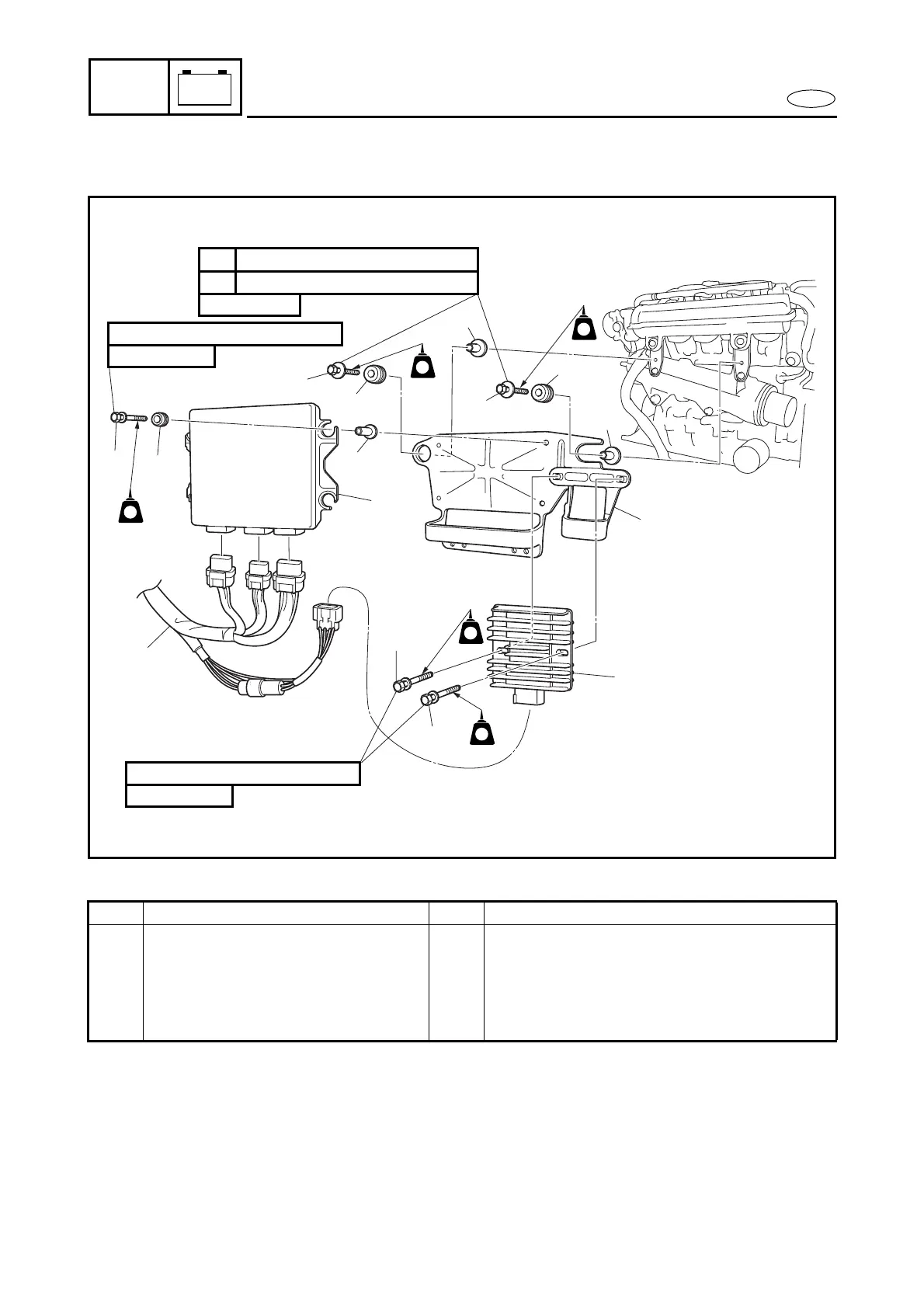

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
8Bolt 2
9Bracket 1
10 Grommet 2
11 Collar 2
Reverse the removal steps for installation.
2nd 18 N • m (1.8 kgf • m, 13 ft • Ib)
1st 8.8 N • m (0.88 kgf • m, 6.4 ft • Ib)
8 × 35 mm
6 × 30 mm
4.0 N • m (0.4 kgf • m, 2.9 ft • Ib)
6 × 30 mm
4.0 N • m (0.4 kgf • m, 2.9 ft • Ib)
LT
572
LT
LT
242
LT
LT
242
LT
LT
572
LT
LT
572
LT
4
6
5
1
2
2
3
9
10
8
10
8
11
11
7

Yamaha VX110 Sport Specifications

General

Displacement	1052cc
Type	Personal Watercraft
Width	46.1 inches
Seating Capacity	2
Engine Type	4-stroke, 4-cylinder
