STARTER MOTOR

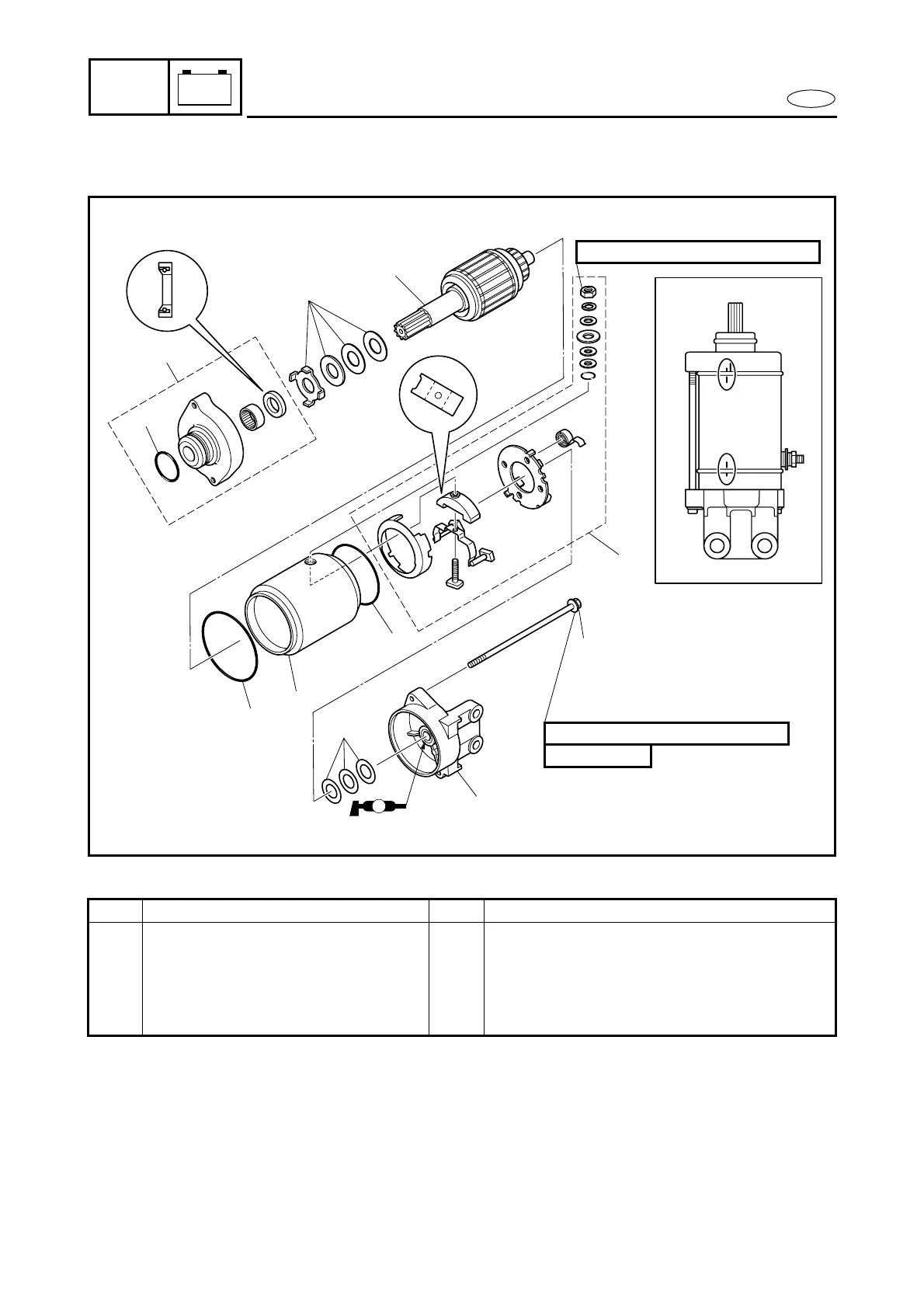

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
7 Starter motor rear cover 1
8 Brush holder assembly 1
9 Starter motor yoke 1
Reverse the disassembly steps for
assembly.
AA
5 × 114 mm
6.4 N • m (0.64 kgf • m, 4.6 ft • Ib)
5
7
2
9
4
4
6
5
3
1
8
8.8 N • m (0.88 kgf • m, 6.4 ft • Ib)
