surement is in operation.
2. Reset the distance-compensation
tripmeter to zero by pushing the
“RESET” button for at least two
seconds.
Resetting the distance-compensation
tripmeter in combination with the stop-
watch
1. Stop the stopwatch.
2. Reset the distance-compensation
tripmeter and the stopwatch to
zero by pushing the “RESET” but-
ton for at least two seconds.

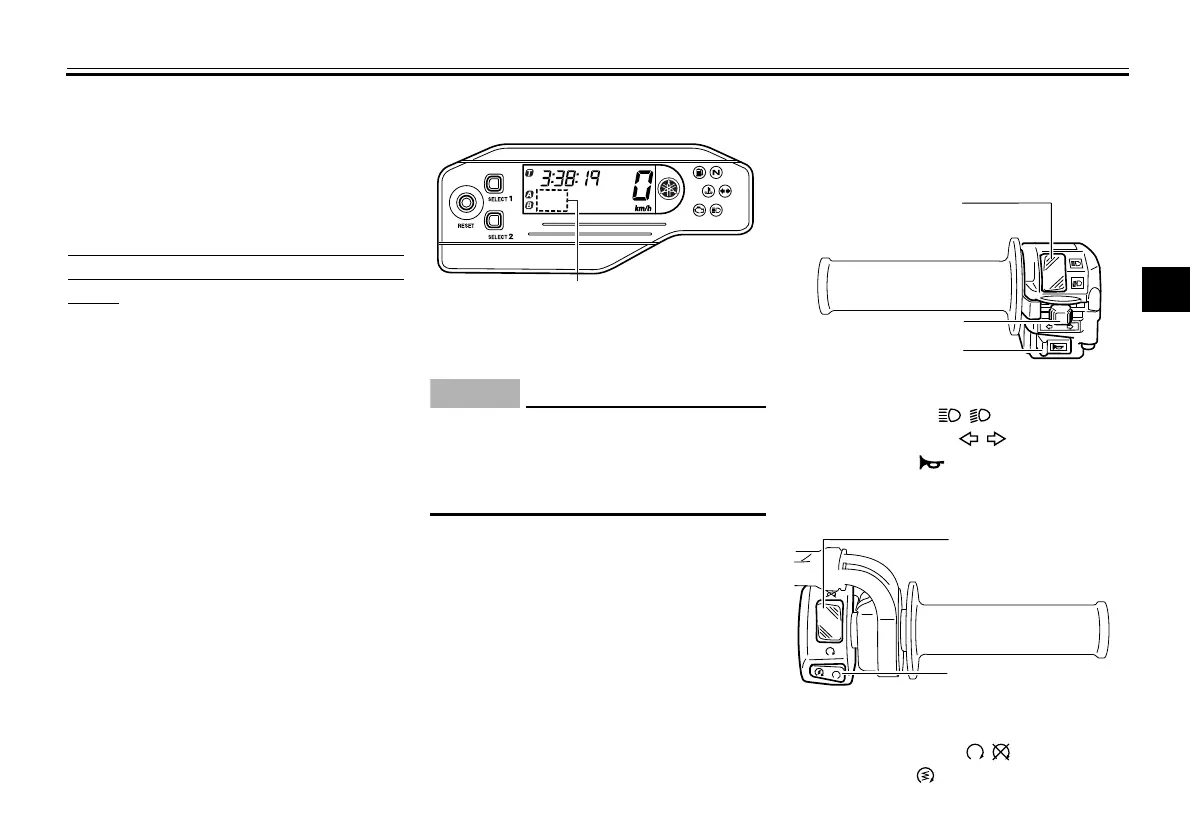

Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the display will indi-
cate an error code.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
NOTICE
ECA11591
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
EAU1234F
Handlebar switches
Left
Right
1. Error code display
1
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1. Engine stop switch “ / ”
2. Start switch “ ”
1
2
3
1
2
32D-28199-EB.book 8 ページ ２０１３年７月３日 水曜日 午前１１時８分

Yamaha WR250X Specifications

General

Displacement	250cc
Bore x Stroke	77.0mm x 53.6mm
Compression Ratio	11.8:1
Fuel System	Fuel Injection
Final Drive	Chain
Front Tire	110/70-17
Rear Tire	140/70-17
Seat Height	35.2 in
Fuel Capacity	2.0 gal
Engine Type	Liquid-cooled DOHC 4-stroke; 4 valves
Ignition	TCI (Transistor Controlled Ignition)
Front Suspension	Inverted fork
Rear Suspension	Single shock
Front Brake	298mm hydraulic disc
Rear Brake	230mm hydraulic disc
Transmission	6-speed
