PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
2
3
4
5
6
7
8
9
EAU48374
Adjusting the clutch lever free
play
The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
1. Slide the rubber cover back at the
clutch lever.
2. Loosen the locknut.
3. To increase the clutch lever free
play, turn the clutch lever free play
adjusting bolt in direction (a). To
decrease the clutch lever free play,
turn the adjusting bolt in direction
(b).
TIP
If the specified clutch lever free play
could be obtained as described above,
skip steps 4–7.
4. Fully turn the adjusting bolt in di-
rection (a) to loosen the clutch ca-
ble.
5. Slide the rubber cover back further
down the clutch cable, and then
loosen the locknut.
6. To increase the clutch lever free
play, turn the clutch lever free play
adjusting nut in direction (a). To
decrease the clutch lever free play,
turn the adjusting nut in direction
(b).
7. Tighten the locknut at the clutch
cable, and then slide the rubber
cover to its original position.
8. Tighten the locknut at the clutch le-
ver, and then slide the rubber cov-
er to its original position.

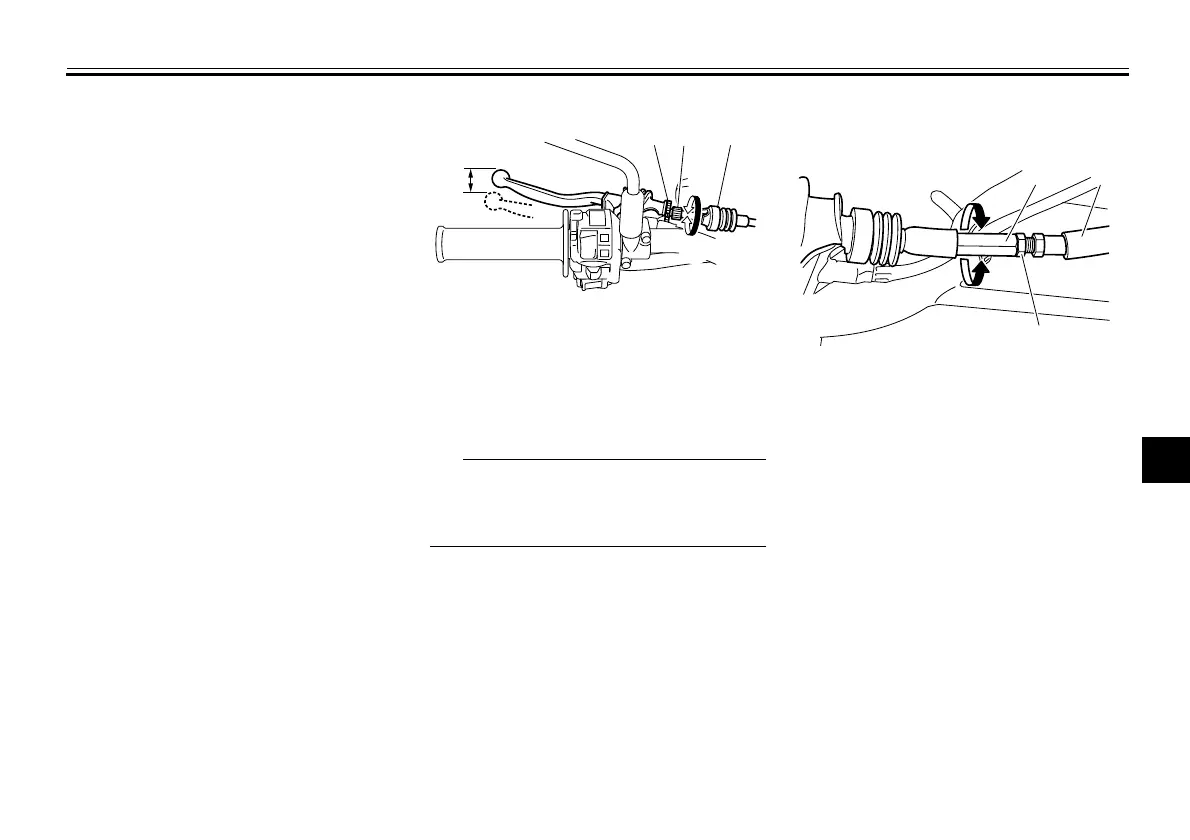

1. Clutch lever free play
2. Locknut (clutch lever)
3. Clutch lever free play adjusting bolt
4. Rubber cover
3
2
1
4
(a)
(b)
1. Locknut (clutch cable)
2. Clutch lever free play adjusting nut (clutch
cable)
3. Rubber cover
1
2
3
(a)
(b)
