INSTRUMENT AND CONTROL FUNCTIONS
3-14
2
3
4
5
6
7
8
9

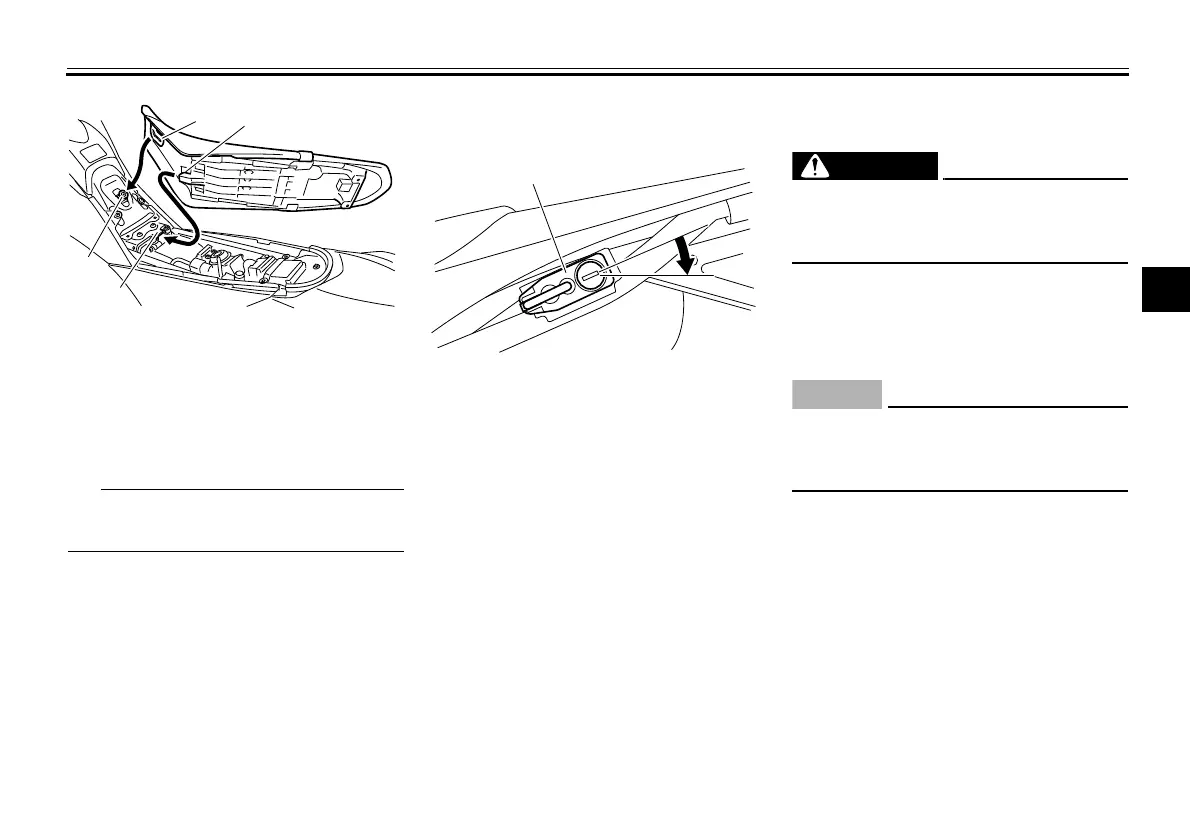

2. Place the seat in the original posi-
tion, and then tighten the bolts.
Make sure that the seat is properly se-
cured before riding.
EAU14283
Helmet holder
To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in the
original position, and then remove the
key. WARNING! Never ride with a
helmet attached to the helmet hold-
er, since the helmet may hit objects,
causing loss of control and possibly
an accident.
[EWA10162]
EAU45203
Adjusting the front fork
EWA10181
Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result.
This front fork is equipped with rebound
damping force adjusting screws and
compression damping force adjusting
screws.
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw on each
fork leg in direction (a). To decrease the
rebound damping force and thereby
soften the rebound damping, turn the
adjusting screw on each fork leg in di-
rection (b).
1. Slot
2. Projection
3. Seat holder
1. Helmet holder
2. Open.
32D-28199-EB.book 14 ページ ２０１３年７月３日 水曜日 午前１１時８分
