PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
1
2
3
4
5
6
7
8
9
EAU18772
Removing and installing
panels
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU45132

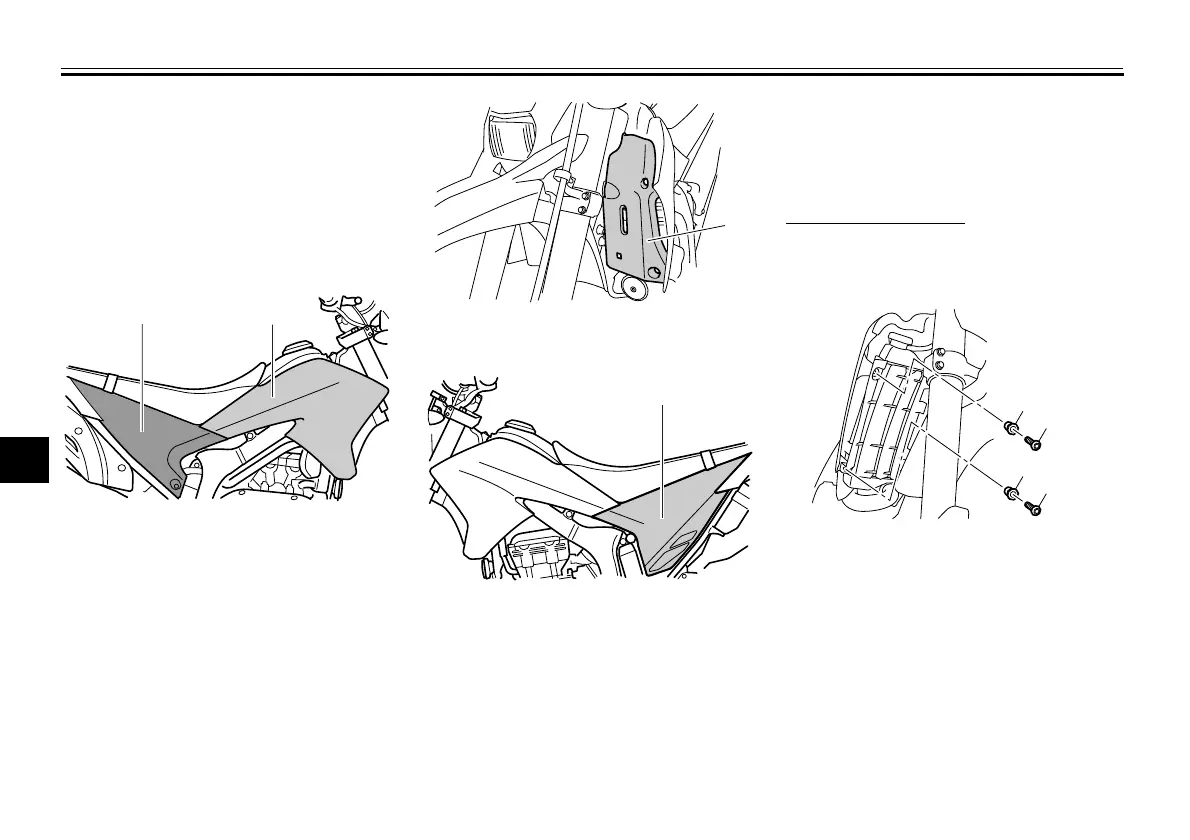

Panel A
To remove the panel
1. Remove the seat. (See
page 3-13.)
2. Remove the bolts and collars.
1. Panel A
2. Panel B
1
2
1. Panel C
1. Panel D
1
1
1. Bolt
2. Collar
2
1
2
1
32D-28199-EB.book 8 ページ ２０１３年７月３日 水曜日 午前１１時８分

Yamaha WR250X Specifications

General

Displacement	250cc
Bore x Stroke	77.0mm x 53.6mm
Compression Ratio	11.8:1
Fuel System	Fuel Injection
Final Drive	Chain
Front Tire	110/70-17
Rear Tire	140/70-17
Seat Height	35.2 in
Fuel Capacity	2.0 gal
Engine Type	Liquid-cooled DOHC 4-stroke; 4 valves
Ignition	TCI (Transistor Controlled Ignition)
Front Suspension	Inverted fork
Rear Suspension	Single shock
Front Brake	298mm hydraulic disc
Rear Brake	230mm hydraulic disc
Transmission	6-speed
