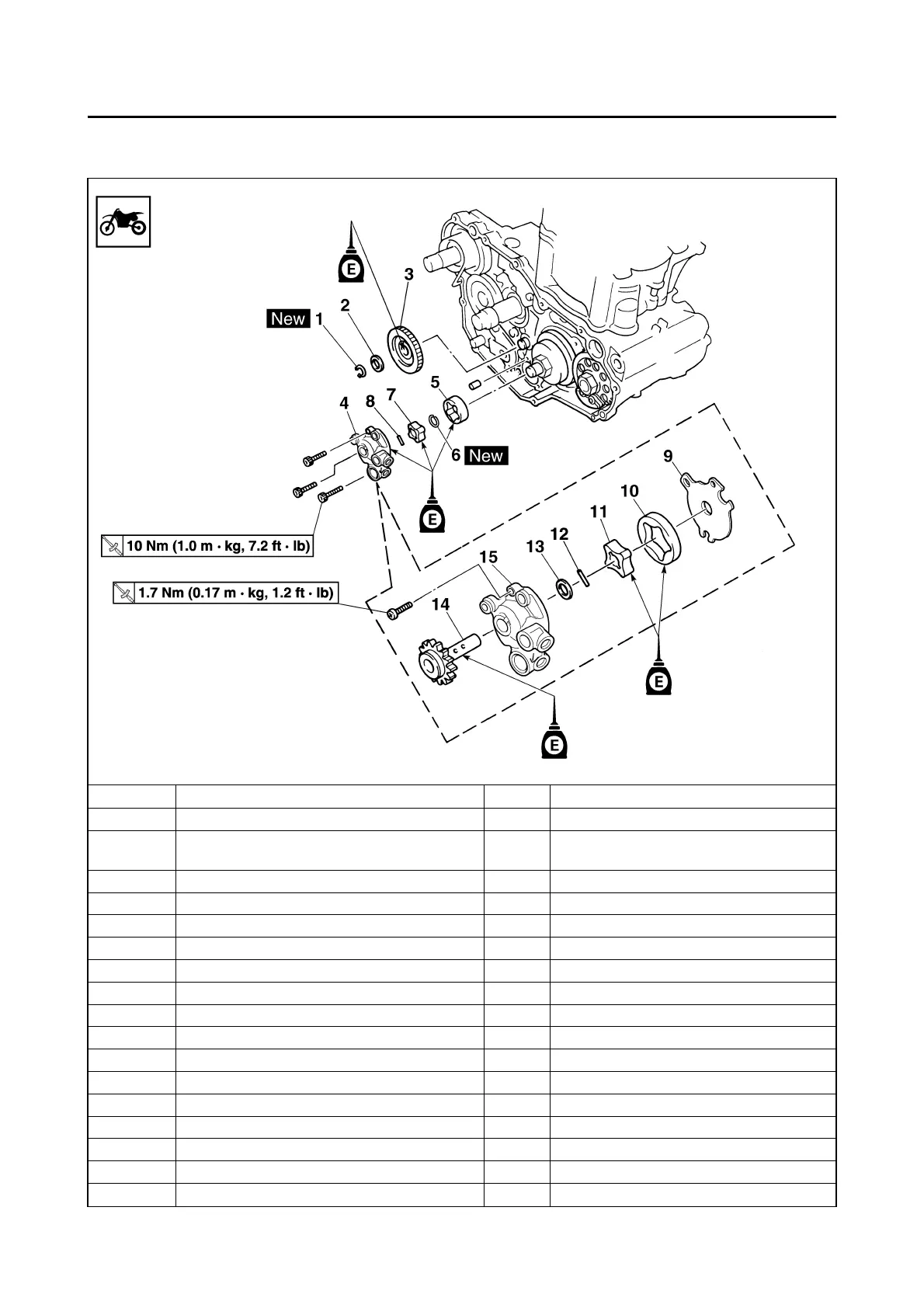

OIL PUMP

REMOVING THE OIL PUMP

Order Part name Q'ty Remarks

Primary driven gear Refer to "CLUTCH" section.

Right crankcase cover

Refer to "OIL FILTER ELEMENT AND WA-

TER PUMP" section.

1 Circlip 1

2 Washer 1

3 Oil pump drive gear 1

4 Oil pump assembly 1

5 Outer rotor 2 1

6 Circlip 1

7 Inner rotor 2 1

8 Dowel pin 1

9 Oil pump cover 1

10 Outer rotor 1 1

11 Inner rotor 1 1

12 Dowel pin 1

13 Washer 1

14 Oil pump drive shaft 1

15 Rotor housing 1
