CYLINDER HEAD
CYLINDER HEAD

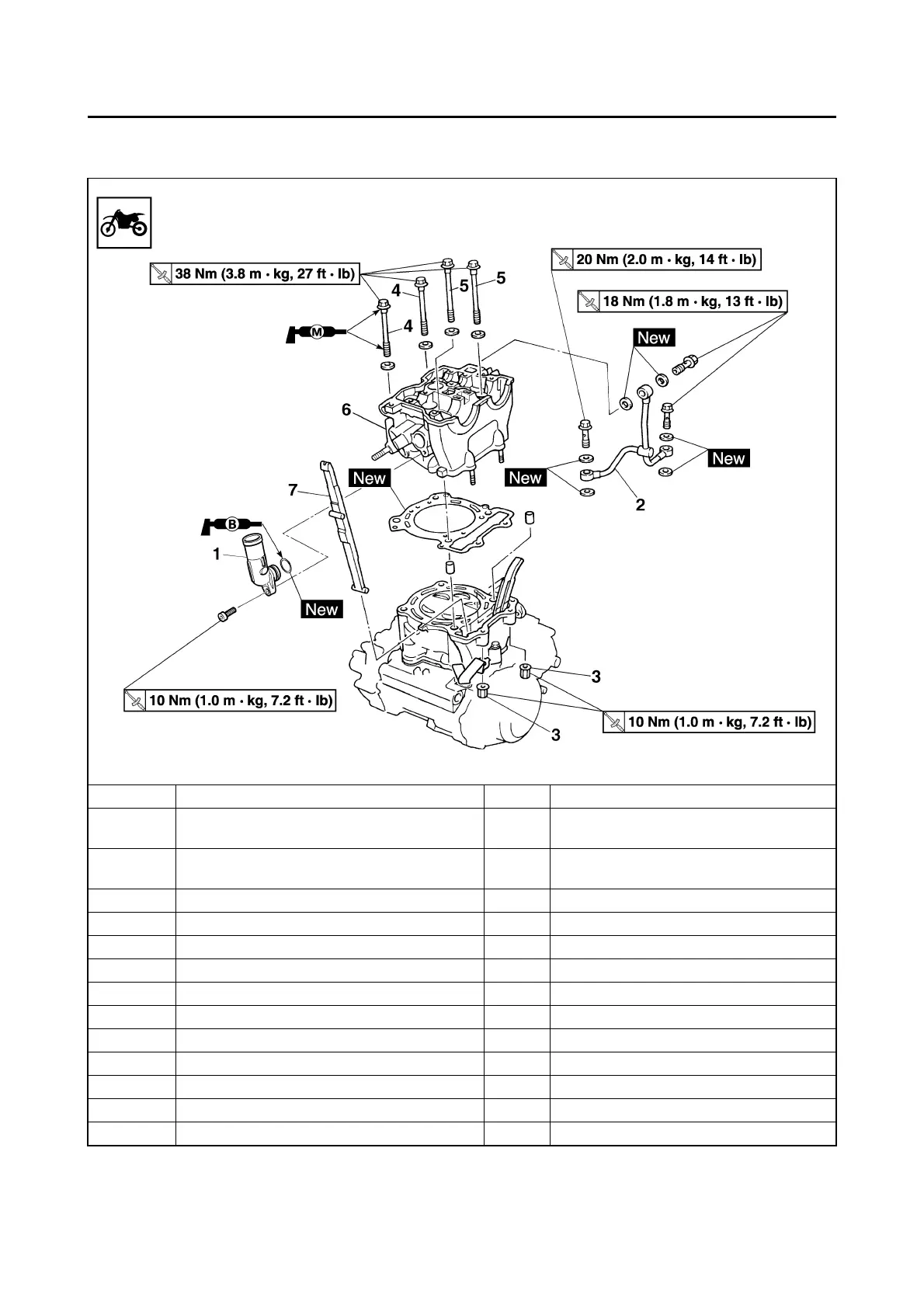

REMOVING THE CYLINDER HEAD
Order Part name Q'ty Remarks
Seat and fuel tank
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
Exhaust pipe and silencer
Refer to "EXHAUST PIPE AND SILENCER"
section.
Radiator hose 1 Disconnect at cylinder head side.
Carburetor Refer to "CARBURETOR" section.
Camshaft Refer to "CAMSHAFTS" section.
Upper engine bracket Refer to "ENGINE REMOVAL" section.
1 Radiator pipe 1
2 Oil delivery pipe 1
3Nut 2
4 Bolt [L = 135 mm (5.31 in)] 2
5 Bolt [L = 145 mm (5.71 in)] 2
6 Cylinder head 1
7 Timing chain guard (exhaust side) 1
