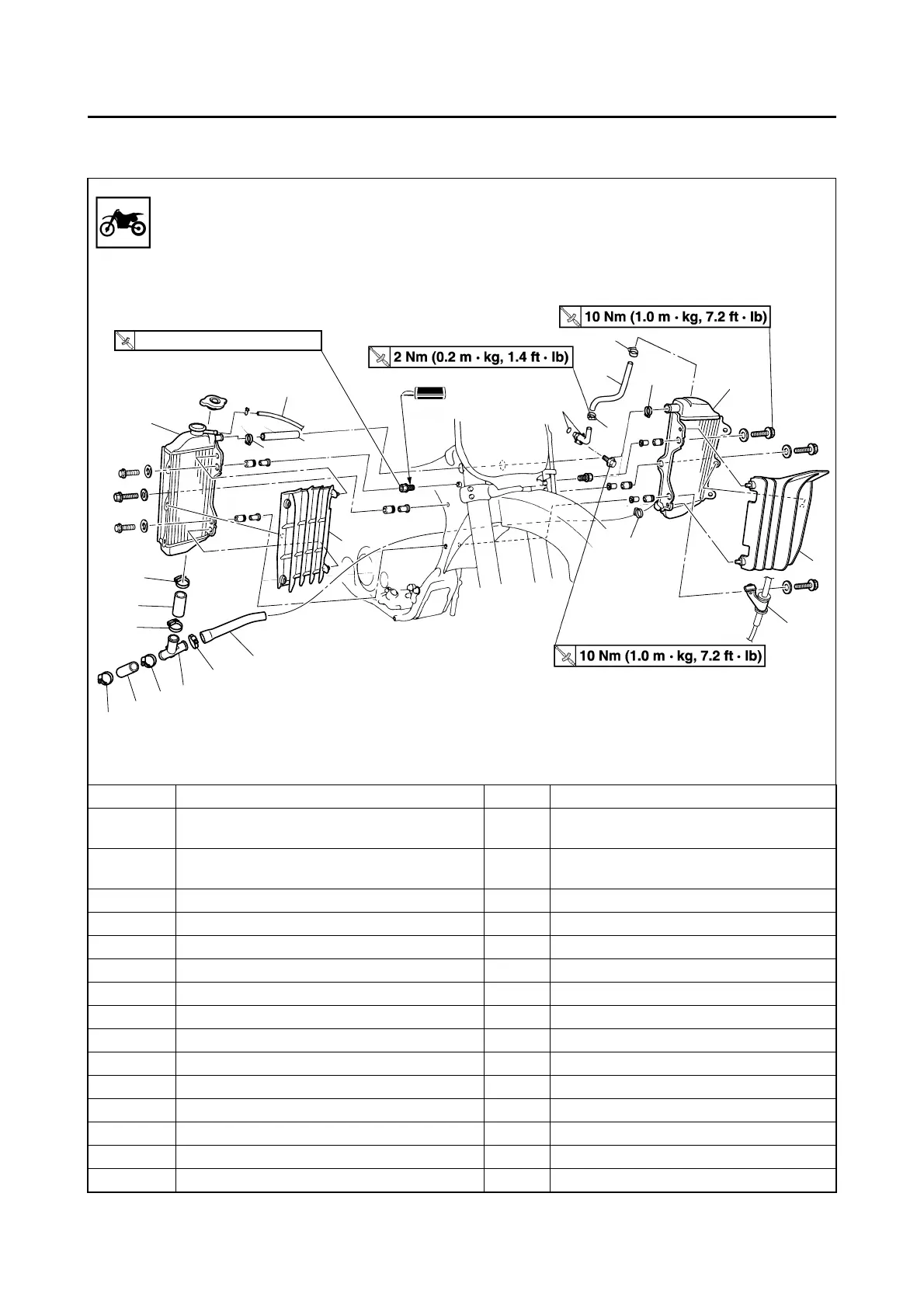

RADIATOR
RADIATOR
REMOVING THE RADIATOR
Order Part name Q'ty Remarks
Drain the coolant.
Refer to "CHANGING THE COOLANT" sec-
tion in the CHAPTER 3.
Seat and fuel tank
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
1 Radiator guard 2
2 Radiator hose clamp 10 Only loosening.
3 Clutch cable holder 1
4 Radiator hose 1 1
5 Left radiator 1
6 Radiator hose 4 1
7Pipe 1
8 Radiator hose 5 1
9 Right radiator 1
10 Radiator hose 2 1
11 Radiator hose 3 1
12 Radiator breather hose 1
13 Radiator pipe 1 1
2
4
2
3
13
2
2
2
2
2
11
7
8
2
2
6
9
2
10
12
1
5
1
T
R
.
.
20 Nm (2.0 m

kg, 14 ft

Ib)
