4-14
CAMSHAFTS
CAMSHAFTS

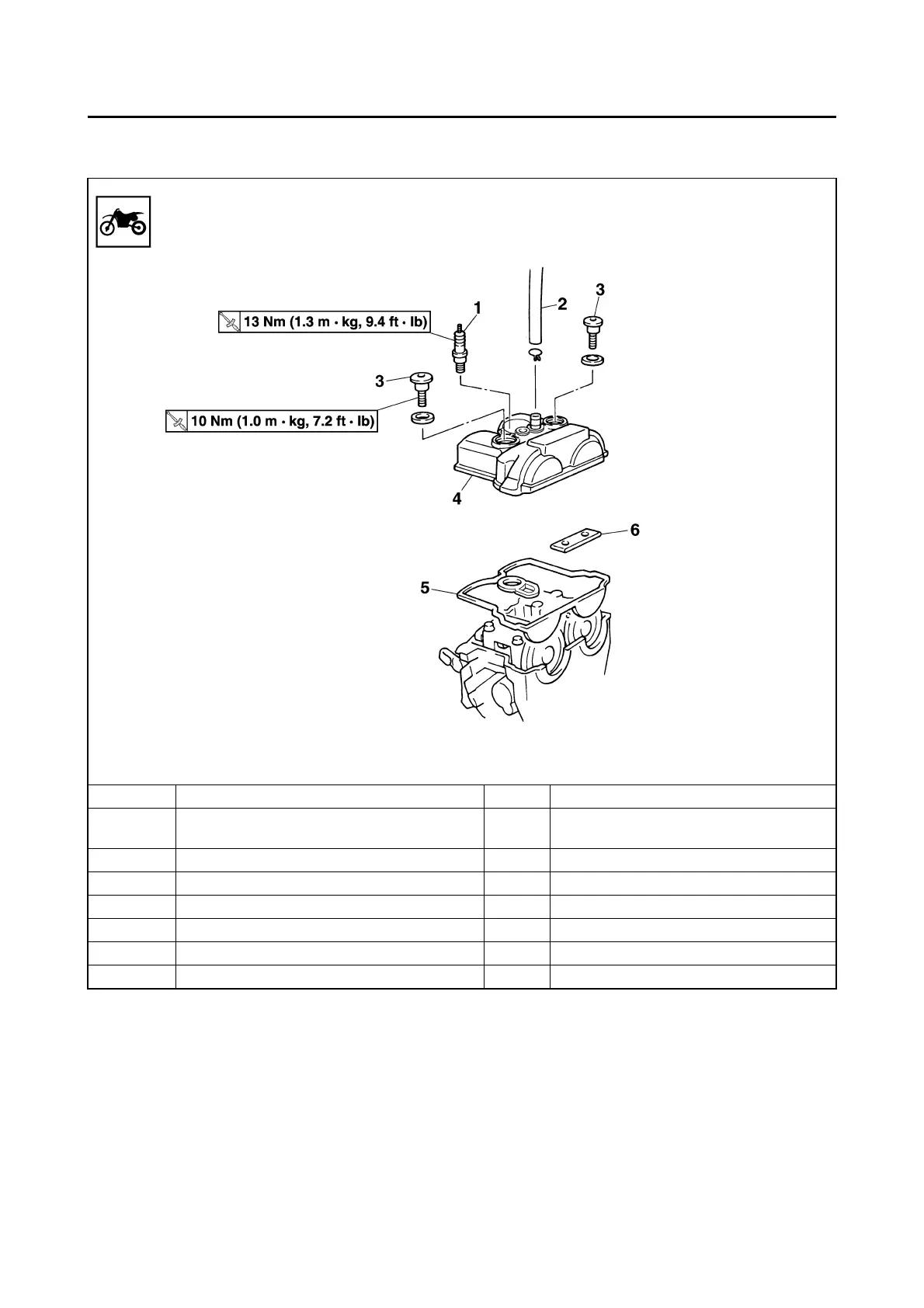

REMOVING THE CYLINDER HEAD COVER
Order
Part name
Q'ty
Remarks
Seat and fuel ta
nk
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
1
Spark plug
1
2
Cylinder head breather hose
1
3
Bolt (cylinder head cover)
2
4
Cylinder head cover
1
5
Cylinder head cover gasket
1
6
Timing chain guide (top side)
1
87
89
