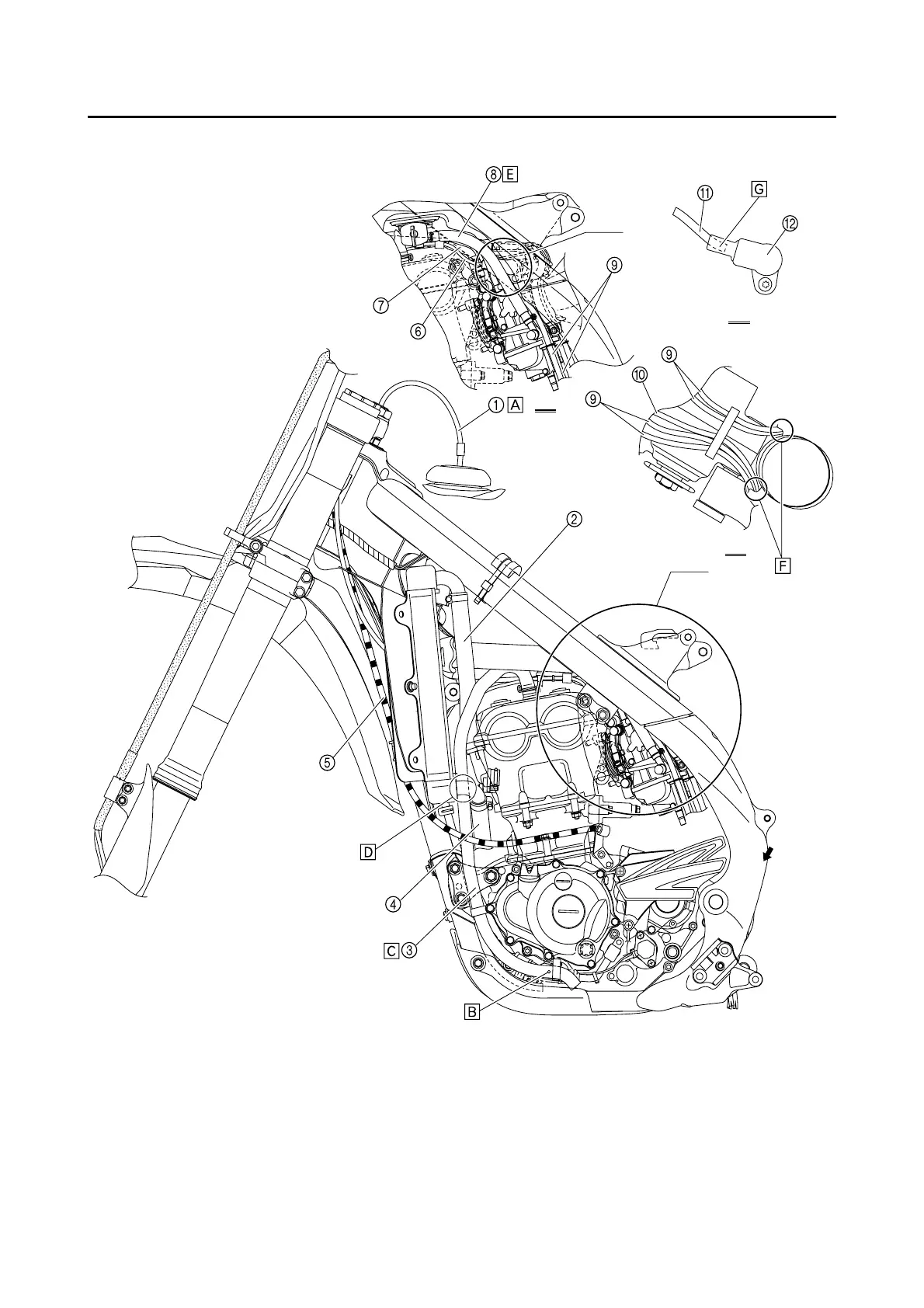

CABLE ROUTING DIAGRAM
CABLE ROUTING DIAGRAM
1. Fuel tank breather hose
2. Radiator hose 1
3. Cylinder head breather hose
4. Radiator hose 3
5. Clutch cable
6. Throttle position sensor lead
7. Hot starter cable
8. Fuel hose
9. Carburetor breather hose
10. Carburetor overflow hose
11. Throttle position sensor lead
protector
12. Throttle position sensor cover
A. Insert the end of the fuel tank
breather hose into the hole in
the steering stem.
B. Aligh the paint mark on the cylin-
der head breather hose with the
front end of the hose guide.
A
B
A
C
B
C
