4-51
ENGINE REMOVAL
ENGINE REMOVAL

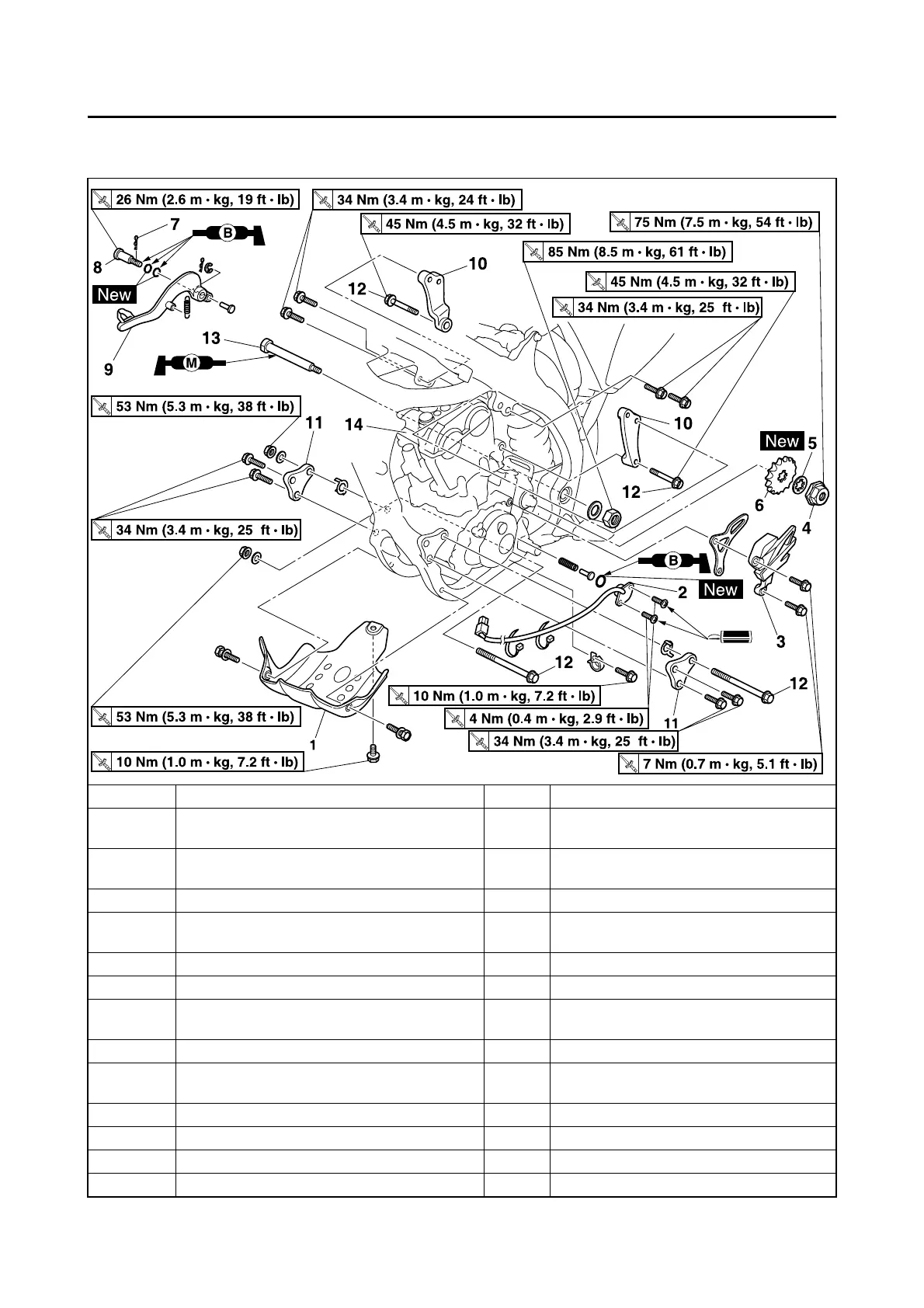

REMOVING THE ENGINE
Order Part name Q'ty Remarks
Hold the machine by placing the suitable stand
under the frame.
Refer to "HANDLING NOTE".
Seat and fuel tank
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
Carburetor Refer to "CARBURETOR" section.
Exhaust pipe and silencer
Refer to "EXHAUST PIPE AND SILENCER"
section.
Clutch cable Disconnect at the engine side.
Radiator Refer to "RADIATOR" section.
Shift pedal
Refer to "KICK SHAFT AND SHIFT SHAFT"
section.
Cylinder head breather hose Refer to "CAMSHAFTS" section.
Drain the engine oil.
Refer to "CHANGING THE ENGINE OIL"
section in the CHAPTER 3.
Oil hose and oil tank breather hose Refer to "OIL PUMP" section.
Ignition coil
Disconnect the CDI magneto lead.
1 Lower engine guard 1
To Next Page
