Yamaha YZ250F(Z) User Manual

4-49
CDI MAGNETO
CDI MAGNETO

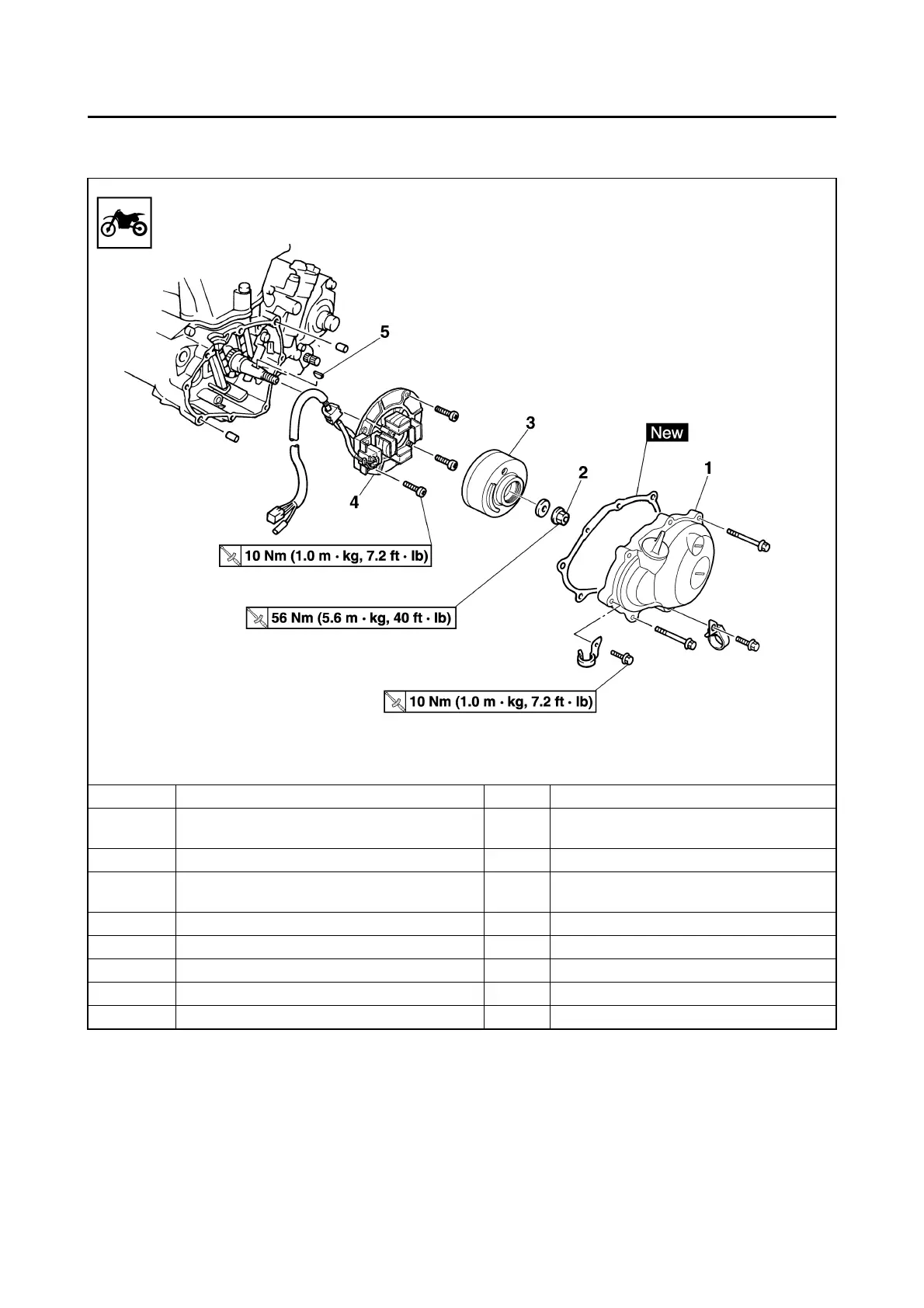

REMOVING THE CDI MAGNETO
Order Part name Q'ty Remarks
Seat and fuel tank
Refer to "SEAT, FUEL TANK AND SIDE
COVERS" section.
Disconnect the CDI magneto lead.
Shift pedal
Refer to "KICK SHAFT AND SHIFT SHAFT"
section.
1 Left crankcase cover 1
2 Nut (rotor) 1 Refer to removal section.
3 Rotor 1 Refer to removal section.
4 Stator 1
5 Woodruff key 1
