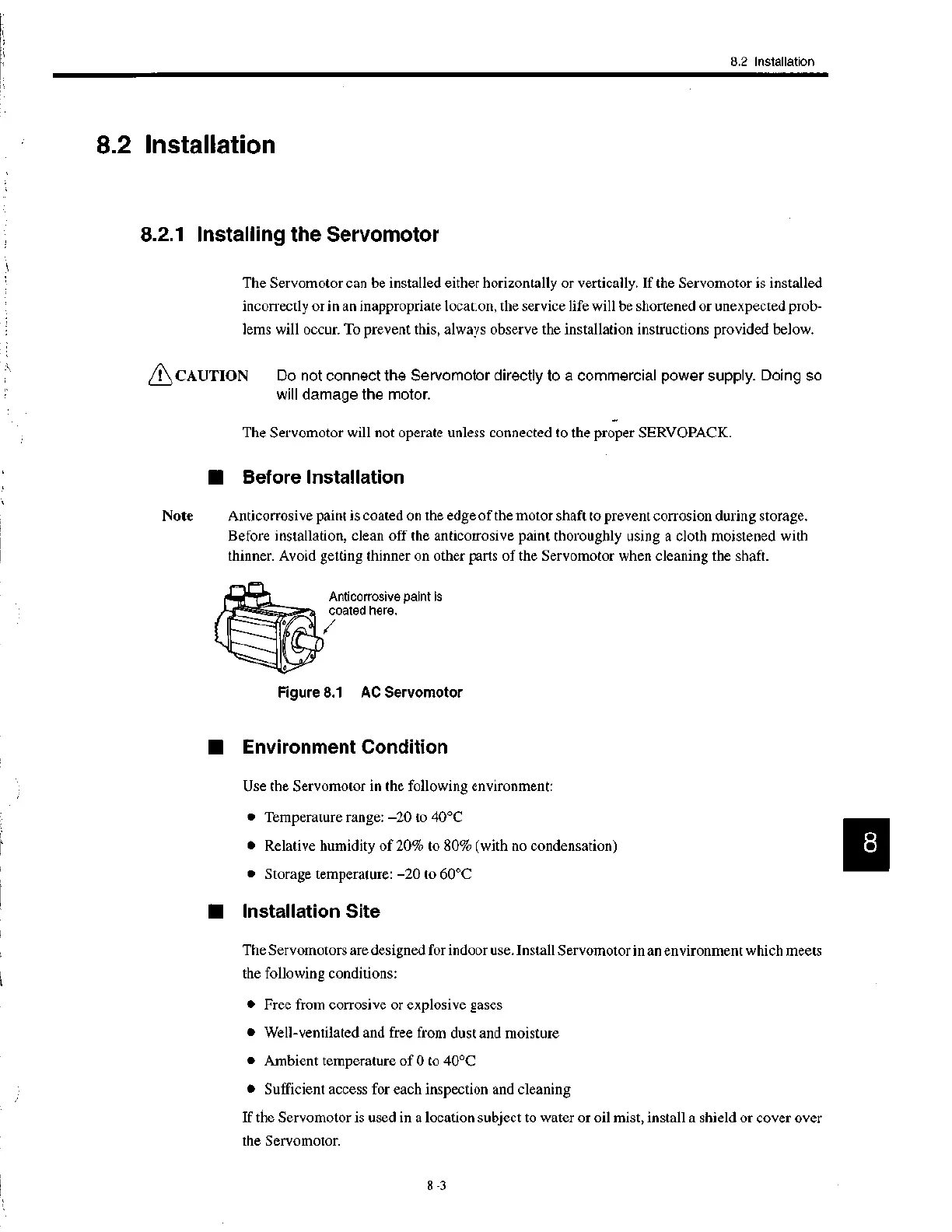

8.2 Installation
8.2 Installation
8.2.1 Installing the Servomotor
The Servomotor can be installed either horizontally or vertically. If the Servomotor is installed
incorrectly or in an inappropriate location, the service life will be shortened or unexpected prob-
lems will occur. To prevent this, always observe the installation instructions provided below.
(\ CAUTION Do not connect the Servomotor directly to a commercial power supply. Doing so
will damage the motor.
The Servomotor will not operate unless connected to the proper SERVOPACK.
■ Before Installation
Note Anticorrosive paint is coated on the edge of the motor shaft to prevent corrosion during storage.
Before installation, clean off the anticorrosive paint thoroughly using a cloth moistened with
thinner. Avoid getting thinner on other parts of the Servomotor when cleaning the shaft.
Anticorrosive paint is
coated here.
Figure 8.1 AC Servomotor
■ Environment Condition
Use the Servomotor in the following environment:
• Temperature range: —20 to 40°C
• Relative humidity of 20% to 80% (with no condensation)
• Storage temperature: —20 to 60°C
■ Installation Site
The Servomotors are designed for indoor use. Install Servomotor in an environment which meets
the following conditions:
• Free from corrosive or explosive gases
• Well-ventilated and free from dust and moisture
• Ambient temperature of 0 to 40°C
• Sufficient access for each inspection and cleaning
If the Servomotor is used in a location subject to water or oil mist, install a shield or cover over
the Servomotor.
8 -3
