Yealink SIP-T40G Administrator's Guide

Phone Provisioning
82

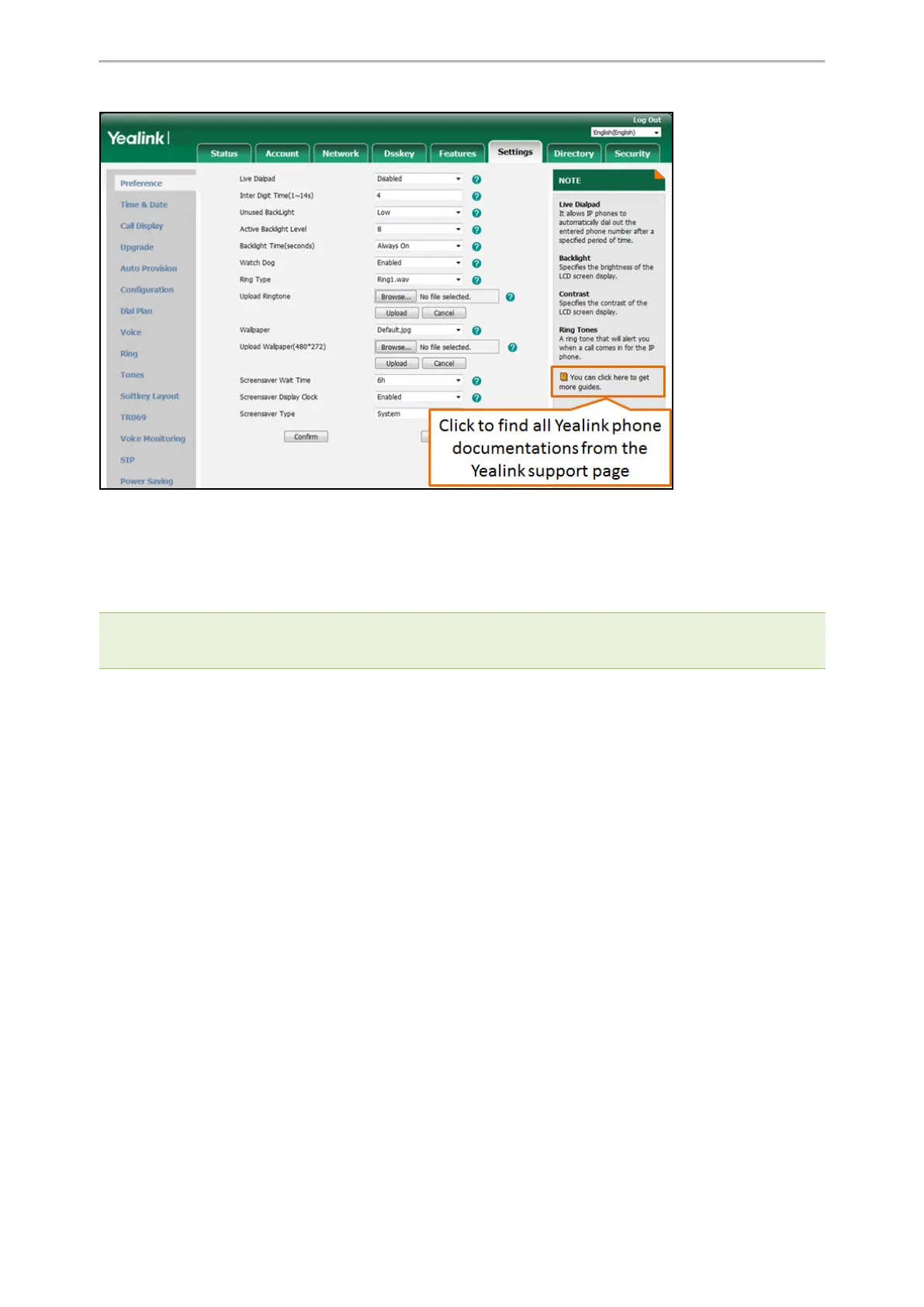

Phone User Interface
The phone user interface makes configurations available to users and administrators; but the Advanced/Advanced
Settings option is only available to administrators and requires an administrator password (default: admin).
You can configure the phones via the phone user interface on a per-phone basis.
Note: When you manually configure a phone via the phone user interface, the changes associated with non-static parameters
you make will be stored in the MAC-local CFG file. For more information on MAC-local CFG file, refer to MAC-local CFG
File.
Related Topic
User and Administrator Identification
Central Provisioning
Central provisioning enables you to provision multiple phones from a provisioning server that you set up, and main-
tain a set of boot files, configuration files and resource files for all phones in the central provisioning server.
The following figure shows how the phone interoperates with provisioning server when you use the centralized pro-
visioning method:

Yealink SIP-T40G Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Wall mountable	Yes
Wi-Fi	No
Security algorithms	AES, HTTPS, SSL/TLS
Networking standards	IEEE 802.3af
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP, TFTP, HTTP, HTTPS
Voice codecs	G.711, G.711a, G.711u, G.722, G.726, G.729ab
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.6 W
Certification	CE, FCC, ISO 9001
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Volume control	Digital
Display diagonal	2.3 \
Display resolution	132 x 64 pixels
Lines quantity	3 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	175 mm
Width	212 mm
Height	54 mm
