York MILLENNIUM Y24 User Manual

102777-YIM-E-0206
40 Unitary Products Group

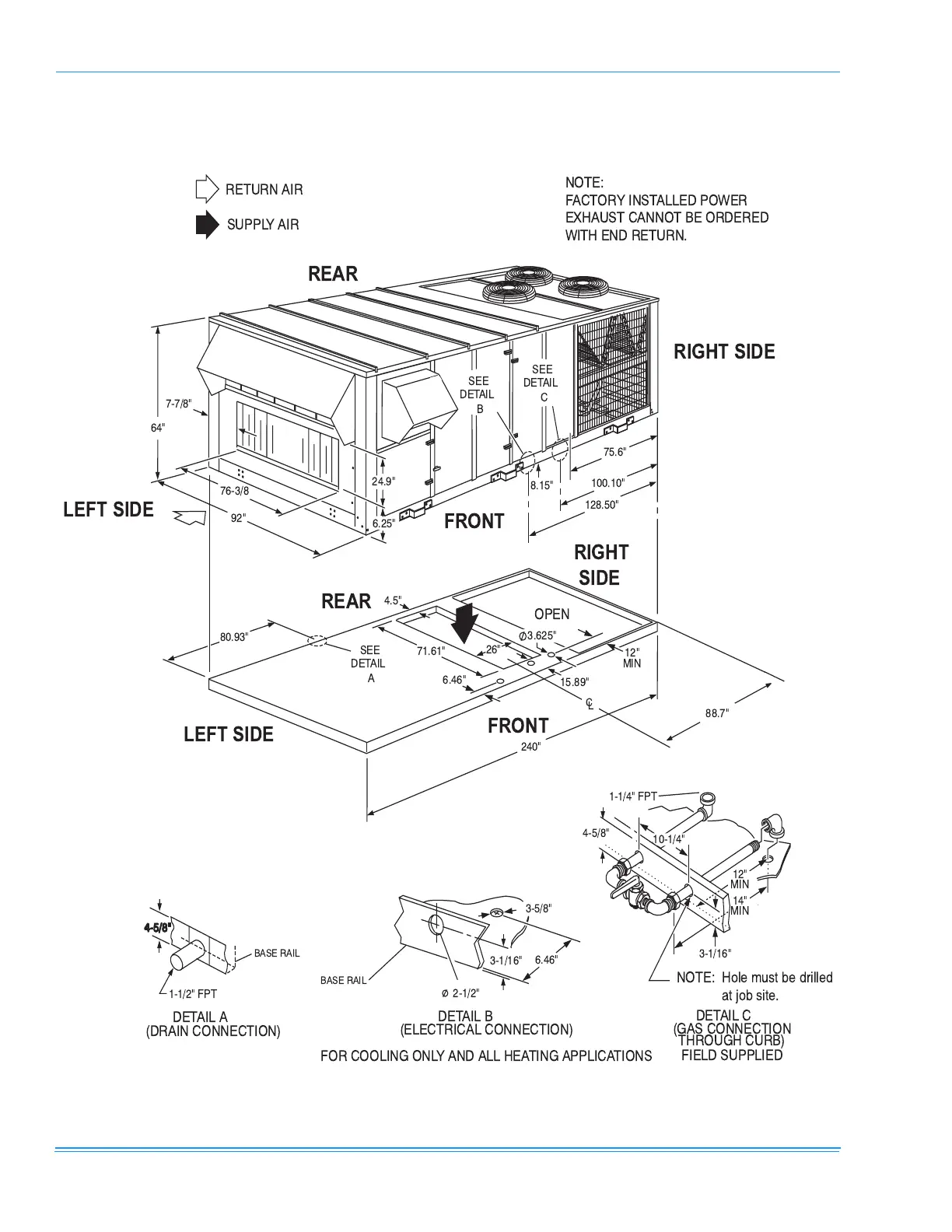

FIGURE 14 - END RETURN, BOTTOM SUPPLY
RETURN AIR
SUPPLY AIR
240"
64"
92"
80.93"
SEE
DETAIL
A
100.10"
128.50"
SEE
DETAIL
B
75.6"
OPEN
7-7/8"
8.15"
76-3/8
24.9"
6.25"
26"
4.5"
15.89"
71.61"
SEE
DETAIL
C
4-5/8"
1-1/2" FPT
3.625"
6.46"
12"
1-1/4" FPT
10-1/4"
3-1/16"
3-5/8"
6.46"
3-1/16"
MIN
14"
MIN
12"
MIN
2-1/2"
NOTE:
FACTORY INSTALLED POWER
EXHAUST CANNOT BE ORDERED
WITH END RETURN.
C
L
88.7"
4-5/8"
DETAIL A
(DRAIN CONNECTION)
DETAIL B
DETAIL C
(ELECTRICAL CONNECTION)
(GAS CONNECTION
THROUGH CURB)
FOR COOLING ONLY AND ALL HEATING APPLICATIONS
NOTE: Hole must be drilled
at job site.
FIELD SUPPLIED
BASE RAIL
BASE RAIL

 
 




 

