SECTION 10 – MAINTENANCE

Form 150.63-NM9

Issue date: 5/20/2021

The following table shows the minimum, maximum, and default values.

Table 32 - Minimum, Maximum, and Default Values

DESCRIPTION MINIMUM MAXIMUM DEFAULT

DE MODIFIER ADDRESS -1 41943 -1

DE MODIFIER OFFSET -1 99 -1

P1 BAUD RATE 1200 76800 4800

1200, 4800, 9600, 19200, 38400, 76800, AUTO SELECTABLE

P2 BAUD RATE 1200 57600 1200

1200, 4800, 9600, 19200, 38400, 57600 SELECTABLE

P1, P2 MANUAL Mac

ADDRESS

-1 127 -1

P1, P2 PARITY NONE IGNORE NONE

NONE, EVEN, ODD, IGNORE SELECTABLE

P1 PROTOCOL BACNET API BACNET

BACNET, API SELECTABLE

P2 PROTOCOL TERMINAL MODBUS CLIENT API

TERMINAL, MODBUS IO, MODBUS SERVER, API, MODBUS CLIENT selectable

P1, P2 STOP BITS 1 2 1

RESET REAL TIME ERROR NO YES NO

035-02550-xxx I/O Board

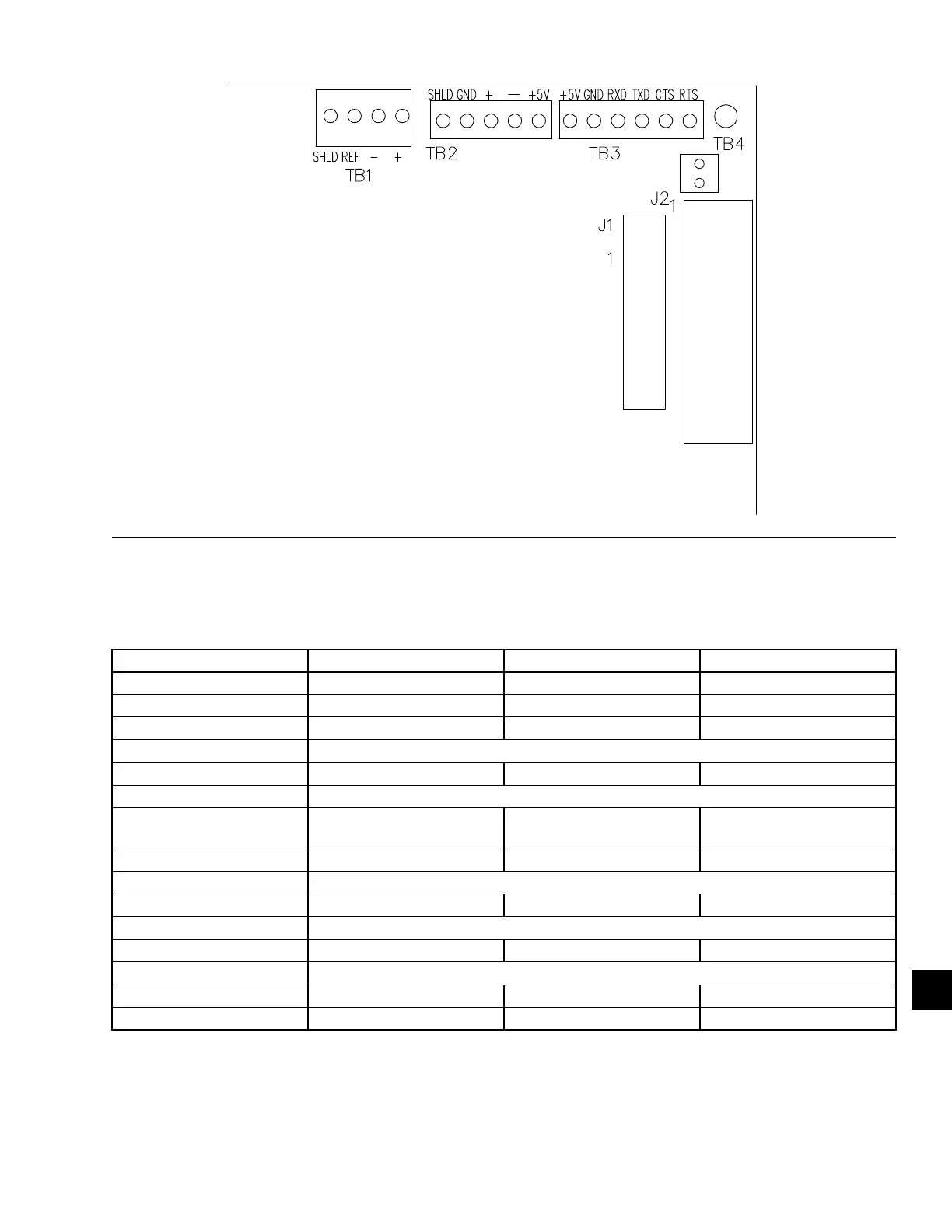

Figure 46 - Micro Panel Connections
