York ZF 240 Series User Manual

1061903-XIM-A-0713
8 Johnson Controls Unitary Products

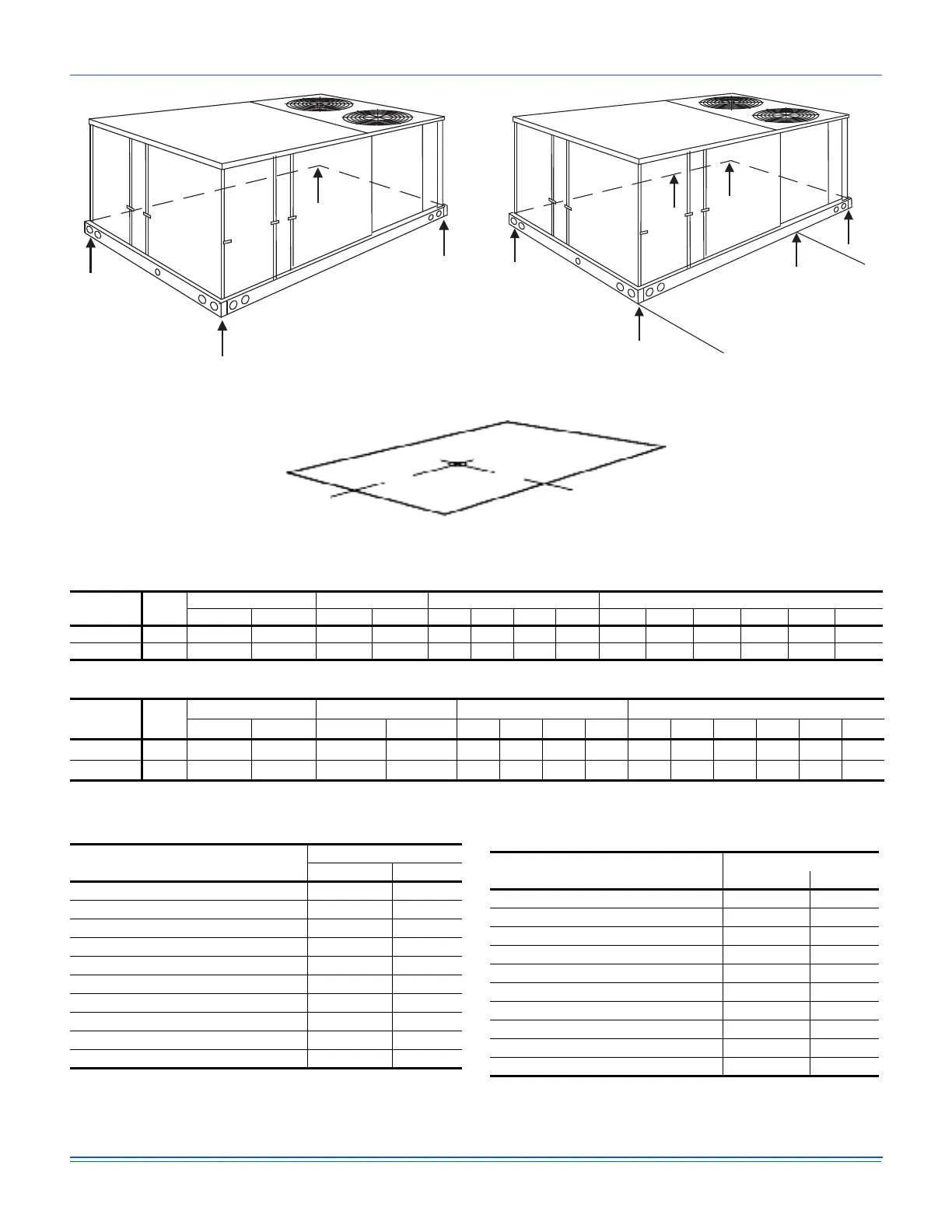

Figure 2: Unit 4 Point Load Weight Figure 3: Unit 6 Point Load Weight
Figure 4: Center of Gravity
Table 2: ZF180-240 Unit Weights Imperial
A
B
C
D
FRONT
A
C
D
F
B
E
FRONT
1624 (64”) (180)
1758 (69”) (240)
X
Y
LEFT
FRONT
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCD A B C D E F
180 (15) ZF 1685 1680 66.5 45.7 391 443 449 397 256 277 302 306 281 259
240 (20) ZF 2405 2400 70 44 558 590 643 609 369 382 397 433 417 402
Table 3: ZF180-240 Unit Weights Metric
Size
(Tons)
Model
Weight (kg.) Center of Gravity (mm) 4 point Load Location (kg.) 6 point Load Location (kg.)
ShippingOperatingX Y ABCDABCDEF
180 (15) ZF 766 764 1689 1161 178 202 204 180 116 126 137 139 128 118
240 (20) ZF 1093 1091 1778 1118 254 268 292 277 168 174 180 197 189 183
Table 4: ZF180-240 Unit Accessory Weights Metric
Unit Accessory
Weight (kg.)
Shipping Operating
Economizer 74.8 72.6
Power Exhaust 40.8 40.8
Electric Heat
1
1. Weight given is for the maximum heater size available
(54KW).
18.1 18.1
Gas Heat
2
2. Weight given is for the maximum number of tube heat
exchangers available (8 tube).
108.9 108.9
Motorized Damper 68 68
Barometric Damper 22.7 22.7
Econ./Motorized Damper Rain Hood 27.2 27.2
Econ./Power Exhaust Rain Hood 43.1 43.1
Wood Skid 99.8 99.8
Roof Curb 86.2 86.2
Table 5: ZF180-240 Unit Accessory Weights Imperial
Unit Accessory
Weight (lbs.)
Shipping Operating
Economizer 165 160
Power Exhaust 90 85
Electric Heat
1
1. Weight given is for the maximum heater size available
(54KW).
40 40
Gas Heat
2
2. Weight given is for the maximum number of tube heat
exchangers available (8 tube).
240 240
Motorized Damper 150 150
Barometric Damper 50 45
Econ./Motorized Damper Rain Hood 60 55
Econ./Power Exhaust Rain Hood 95 90
Wood Skid 220 220
Roof Curb 190 185
