User Manual 3PH HYD5000-HYD20000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1. of 16/03/2021 - Application: GID

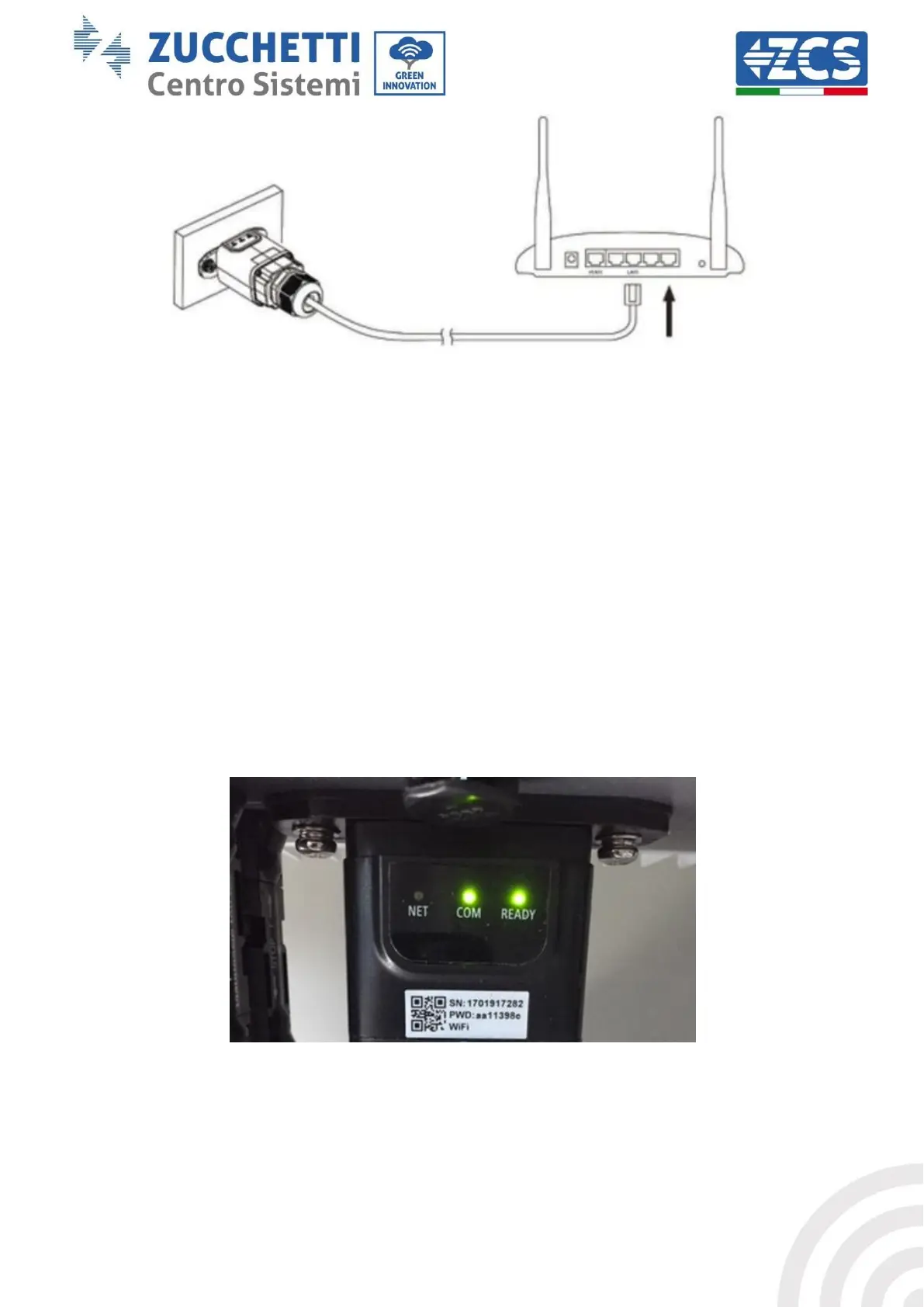

Figure 112 – Connecting the network cable to the modem
6) Switch on the inverter by following the procedure described in the manual.
7) Unlike Wi-Fi cards, the Ethernet adapter does not need to be configured and starts transmitting
data shortly after the inverter is switched on.
11.2.2. Verification
Wait two minutes after installing the adapter, and check the status of the LEDs on the device.
Status of LEDs present on the adapter
1) Initial status:
NET (left LED ): off
COM (central LED): steady on
SER (right LED): flashing on
Figure 113 - Initial status of LEDs
2) Final status:
NET (left LED): steady on
