5.4.3.1. Configuring the Meter parameters
After connecting the cables correctly, it is necessary to set the correct parameters from the Meter
display.

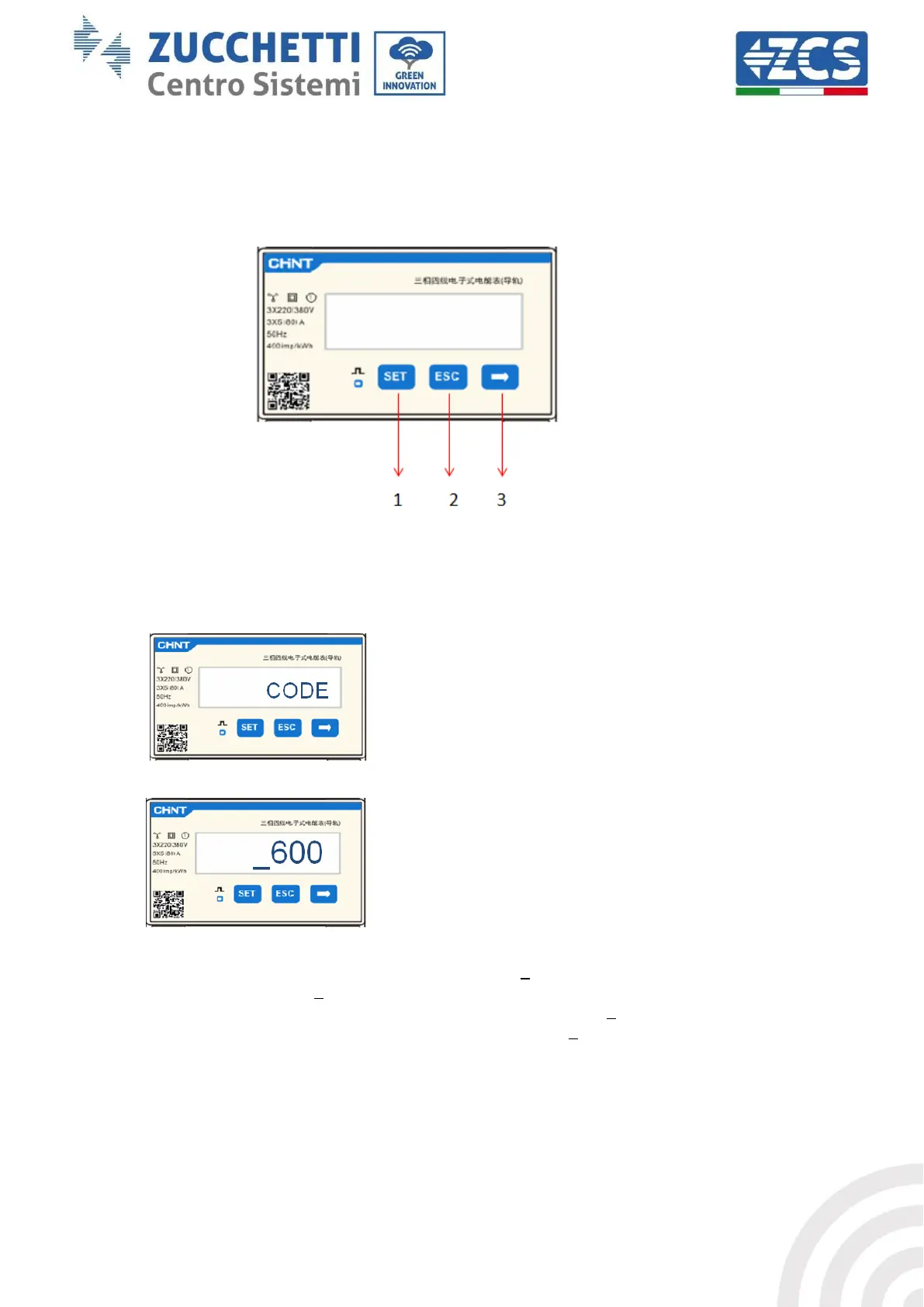

Figure 74 - Meter Legend
Exchange Meter configuration
To configure the device in read mode on exchange, enter the settings menu as shown below:
1. Press SET and the word CODE will appear
2. Press SET again and the number “600” will appear:
3. Enter the number “701”:
a. From the first screen where the number “600” appears, press the “→” key once to write
the number “601”.
b. Press “SET” twice to move the cursor left, highlighting “601”;
c. Press the “→” key once more to write the number “701”
Note: In case of error, press “ESC” and then “SET” again to reset the required code.
1. Press to:
“Confirm”
Move cursor
(to enter digit)
2. Press to “go back”
3. Press to “add”
To Next Page
