User Manual 3PH HYD5000-HYD20000-ZSS
Rev. 1.1 16/03/2021
Identification: MD-AL-GI-00
Rev. 1. of 16/03/2021 - Application: GID
4.2.2.2. Installation with two battery towers

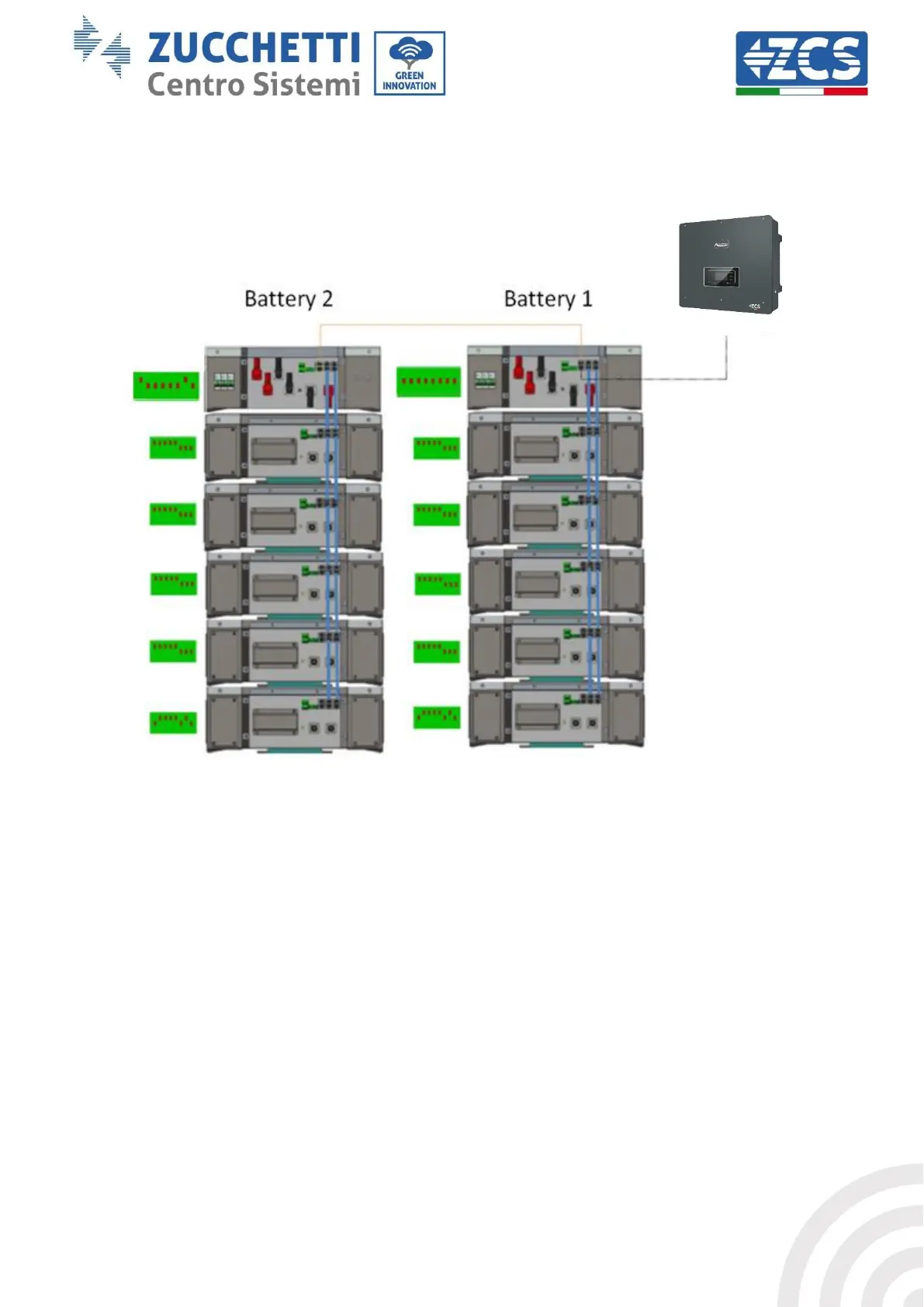

Figure 44 - Double battery tower
Power connections
The power cables in each tower between the battery modules and HV BOX must be connected as
indicated in section 2.1.1.
As for the connection between each tower and the inverter, the two power cables (+ and -) coming
from the HV BOX will be connected to the two inputs of the inverter: BAT1 and BAT2.
