11.3. 4G adapter
The ZCS 4G adapters are sold with a virtual SIM integrated into the device with data traffic fee
included for10 years, which is adequate for the proper transmission of data to monitor the inverter.
In order to monitor the inverter, the RS485 communication address must be set to 01 directly from the
display.
11.3.1. Installation
Installation must be carried out for all inverters compatible with the adapter. However, the procedure
is quicker and easier as there is no need to open the front cover of the inverter.
Installation tools:
Cross screwdriver
4G adapter
1) Switch off the inverter following the procedure described in this manual.
2) Remove the cover for accessing the Wi-Fi/ GPRS connector on the bottom of the inverter by
unscrewing the two cross-head screws (a), or by unscrewing the cover (b), depending on the
inverter model, as shown in the figure.
(a)
(b)

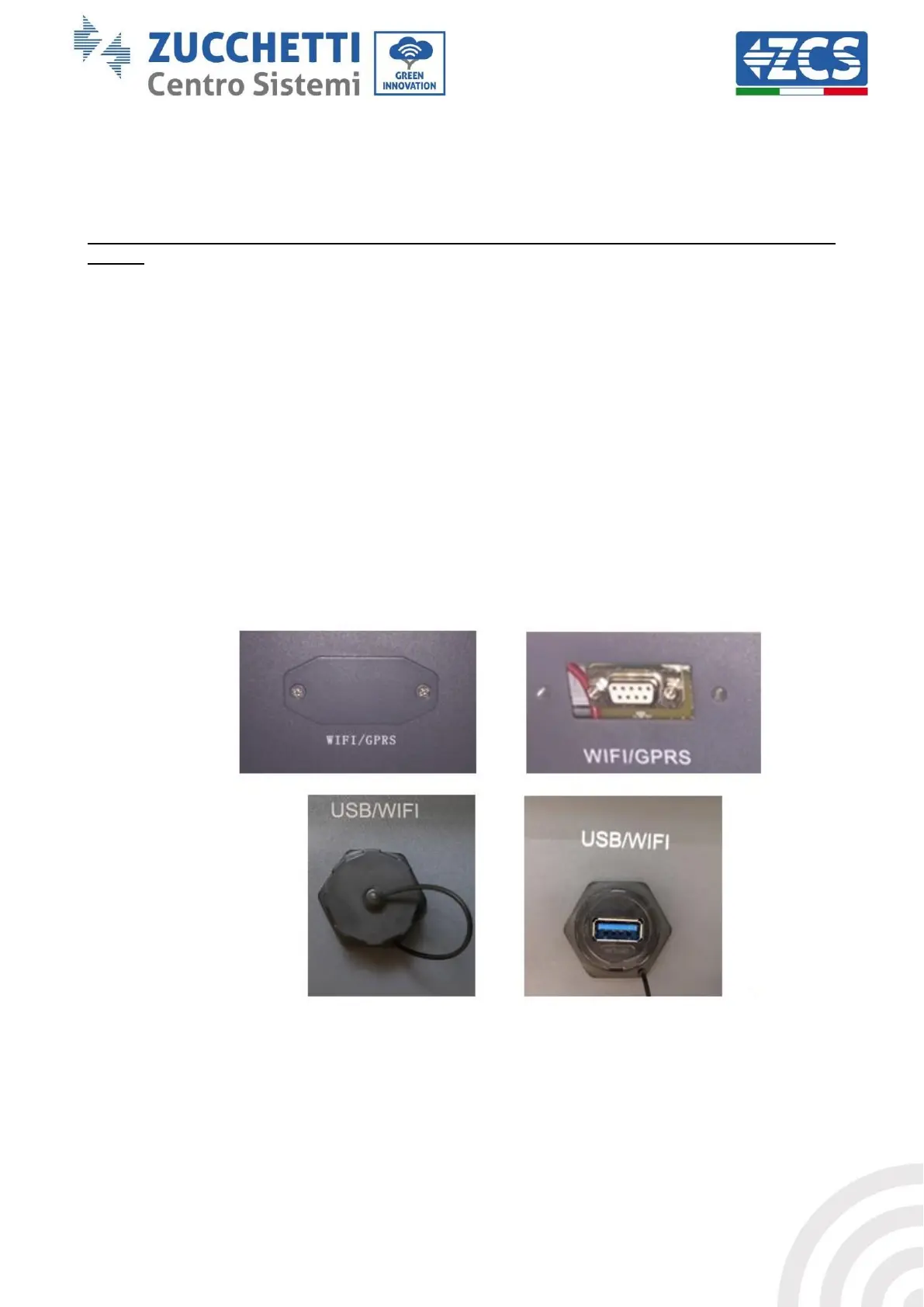

Figure 117 – Port of the 4G adapter
