11 - 64 DS4308/DS4308P Digital Scanner Product Reference Guide
Matrix 2 of 5
Enable/Disable Matrix 2 of 5
Parameter # 618 (SSI # F1h 6Ah)
To enable or disable Matrix 2 of 5, scan the appropriate bar code below.
Set Lengths for Matrix 2 of 5
Parameter # L1 = 619 (SSI # F1h 6Bh), L2 = 620 (SSI # F1h 6Ch)
The length of a code refers to the number of characters (i.e., human readable characters), including check
digit(s) the code contains. Set lengths for Matrix 2 of 5 to any length, one or two discrete lengths, or lengths
within a specific range. The default is 4 to 55.
•
One Discrete Length - Select this option to decode only Matrix 2 of 5 symbols containing a selected
length. Select the length using the numeric bar codes in Appendix G, Numeric Bar Codes. For example,
to decode only Matrix 2 of 5 symbols with 14 characters, scan Matrix 2 of 5 - One Discrete Length, then
scan 1 followed by 4. To correct an error or to change the selection, scan Cancel on page G-2.
•
Two Discrete Lengths - Select this option to decode only Matrix 2 of 5 symbols containing either of
two selected lengths. Select lengths using the numeric bar codes in Appendix G, Numeric Bar Codes.
For example, to decode only Matrix 2 of 5 symbols containing either 2 or 14 characters, select Matrix 2
of 5 - Two Discrete Lengths, then scan 0, 2, 1, and then 4. To correct an error or to change the
selection, scan Cancel on page G-2.
•
Length Within Range - Select this option to decode a Matrix 2 of 5 symbol with a specific length
range. Select lengths using the numeric bar codes in Appendix G, Numeric Bar Codes. For example,
to decode Matrix 2 of 5 symbols containing between 4 and 12 characters, first scan Matrix 2 of 5 -
Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To
correct an error or change the selection, scan Cancel on page G-2.
•
Any Length - Scan this option to decode Matrix 2 of 5 symbols containing any number of characters
within the digital scanner’s capability.

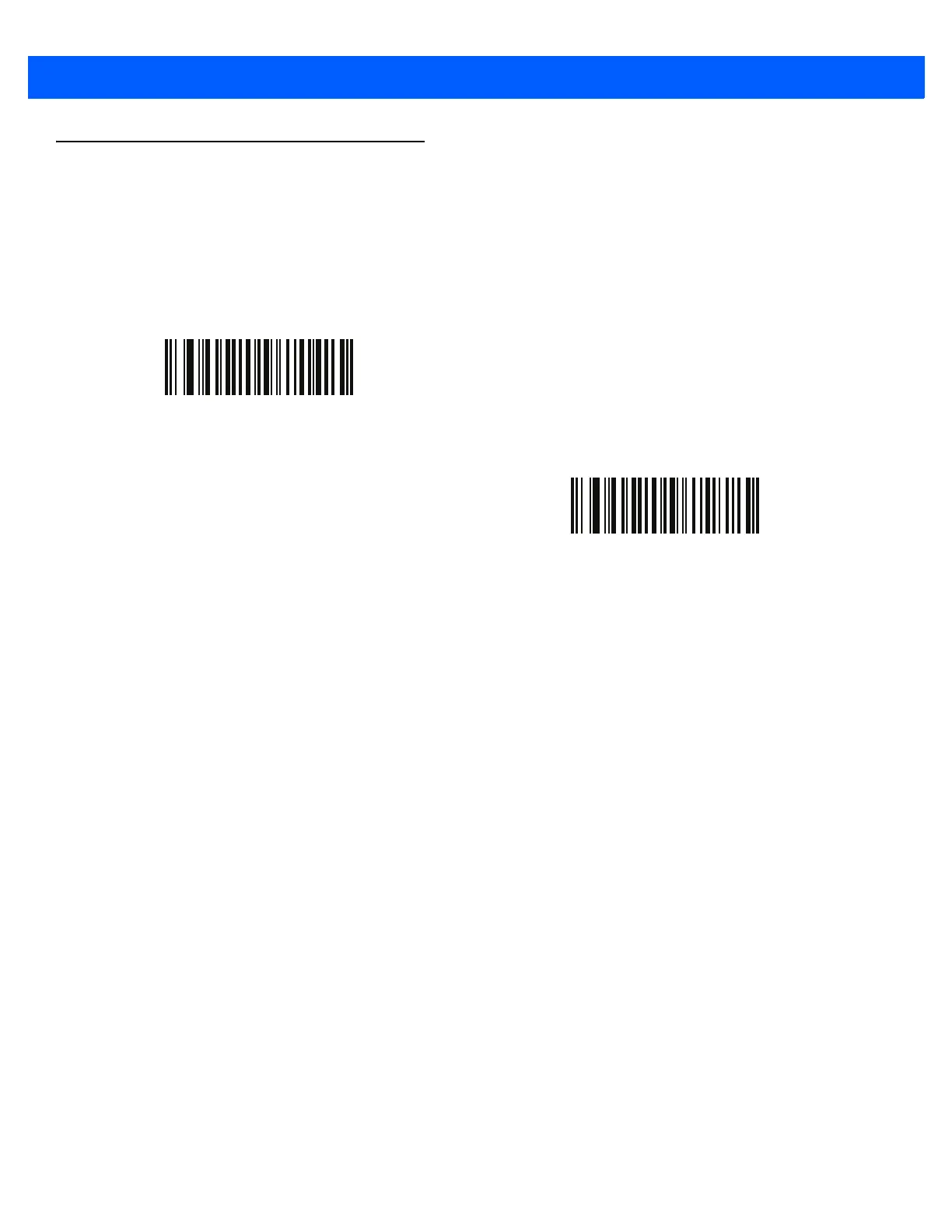

Enable Matrix 2 of 5
(1)
*Disable Matrix 2 of 5
(0)
