Zebra TC77 User Manual

Accessories
190
USB I/O Hub
The USB I/O Hub:
• provides power to a vehicle cradle
• provides USB hub for three USB devices (such as printers)
• provides a powered USB port for charging another device.
The cradle is powered by the vehicle’s 12V or 24V electrical system. The operating voltage range is 9V to 32V
and supplies a maximum current of 3A to the vehicle cradle and 1.5 A to the four USB ports simultaneously.
Refer to the device Integrator Guide for Android 8.1 Oreo for information on installing the USB I/O Hub.

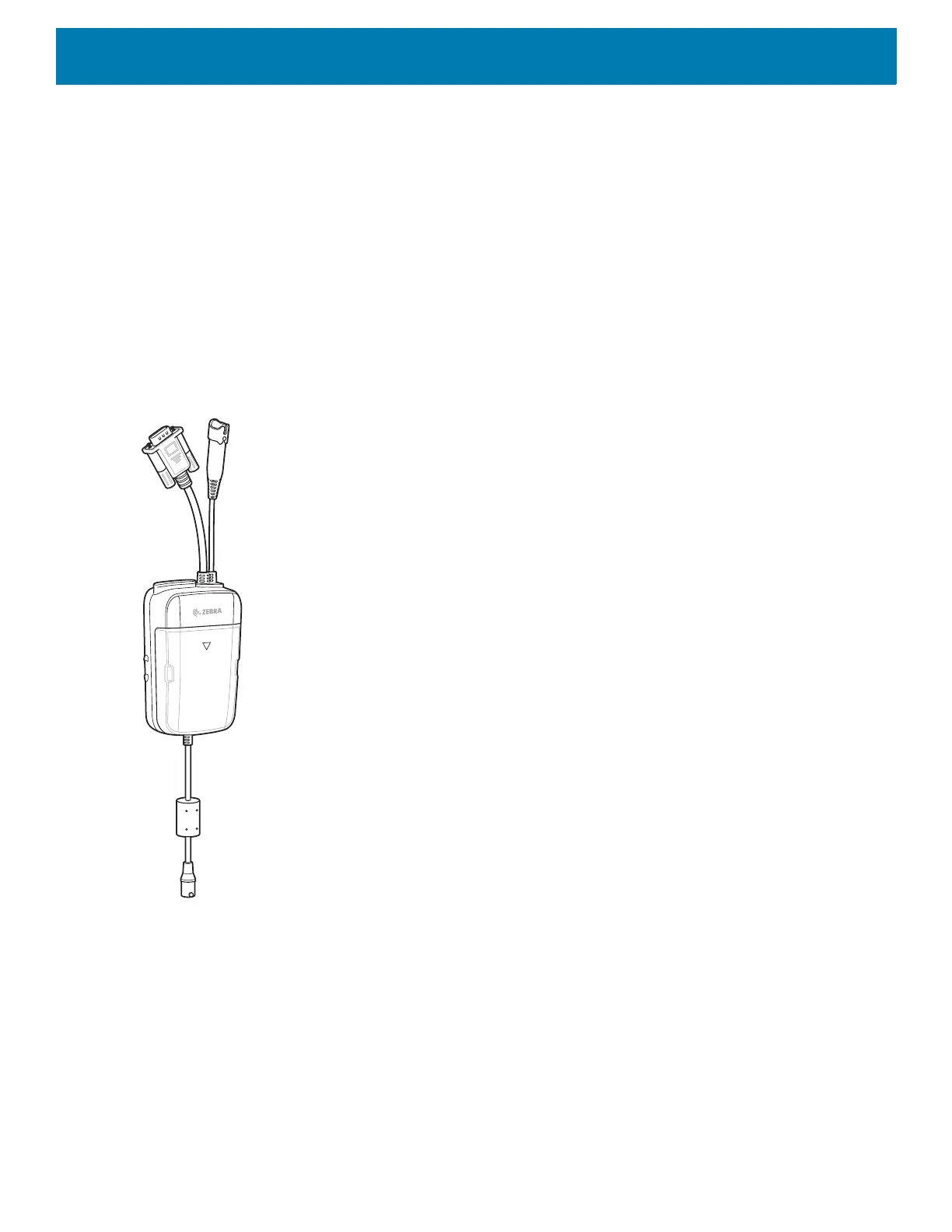

Figure 193 USB I/O Hub
Connect USB Cables
The USB I/O Hub provides three USB ports for connecting devices such as printers to a device in the vehicle
cradle. To connect USB cables:

Zebra TC77 Specifications

General

Display diagonal	4.7 \
Touch technology	Dual-touch
Touchscreen type	Capacitive
Display resolution	1280 x 720 pixels
Flash memory	32 GB
Internal memory	4 GB
Internal memory type	-
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Number of cores	8
Processor family	Snapdragon
Processor frequency	2.2 GHz
Processor manufacturer	Qualcomm
Operating system version	8.1
Operating system installed	Android
Data network	2G, 3G, EDGE, GPRS, HSPA, HSPA+, LTE, UMTS
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.0
GSM bands supported	850, 900, 1800, 1900 MHz
Security algorithms	AES, EAP-TTLS, LEAP, MSCHAPv2, PEAP, TKIP, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Rear camera resolution (numeric)	13 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 90 %
Battery voltage	3.7 V
Battery capacity	4620 mAh
Certification	WFA (802.11n, WMM-PS, 801.11ac, PMF)
Product color	Black, Silver
Linear (1D) barcodes supported	Code 39
International Protection (IP) code	IP65, IP68
Harmonized System (HS) code	84713000

Weight and Dimensions

Depth	28 mm
Width	84 mm
Height	161 mm
Weight	376 g
