111
WHEEL TREAD CHANGE
C505
FRONT WHEEL TOE-IN
Value of front wheel toe-in measured at
the rim at the tractor:
− with non-driven axle 2 to 6 mm
− with driving axle 0 to 4 mm

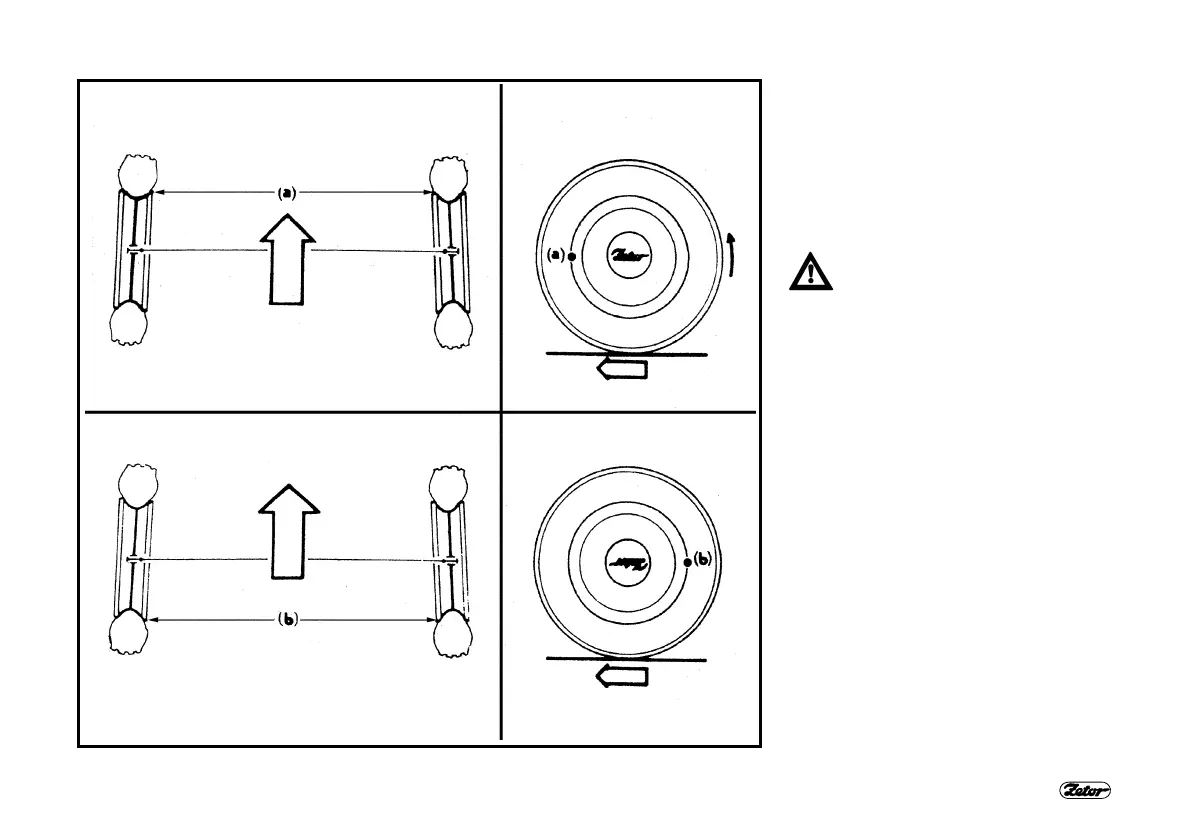

Toe-in „S“ is determined by the
difference of measured values: S = b - a.
Before toe-in checking it is
necessary to check and even-
tually adjust the play of front
wheel bearings and inflate the
front tires to the prescribed
pressure.
Front wheel toe-in measurement
is executed on rims of wheels.
