Zetor Proxima 70 2012 User Manual

77
PTO DRIVE OF AGRICULTURAL MACHINES
C353
E357
∗HAND CONTROL LEVER OF PTO
SHAFT CLUTCH WITH PNEUMATIC
CONTROL
∗As option, the tractor can be equipped
with disengaging of the PTO clutch with
pneumatic control. The function of the
hand control lever of the PTO clutch is
same as standard tractor model. At air
pressure of min. 500 kPa, it is possible,
by depressing of the clutch pedal, to
disengage the PTO clutch simultane-
ously with the travel clutch.

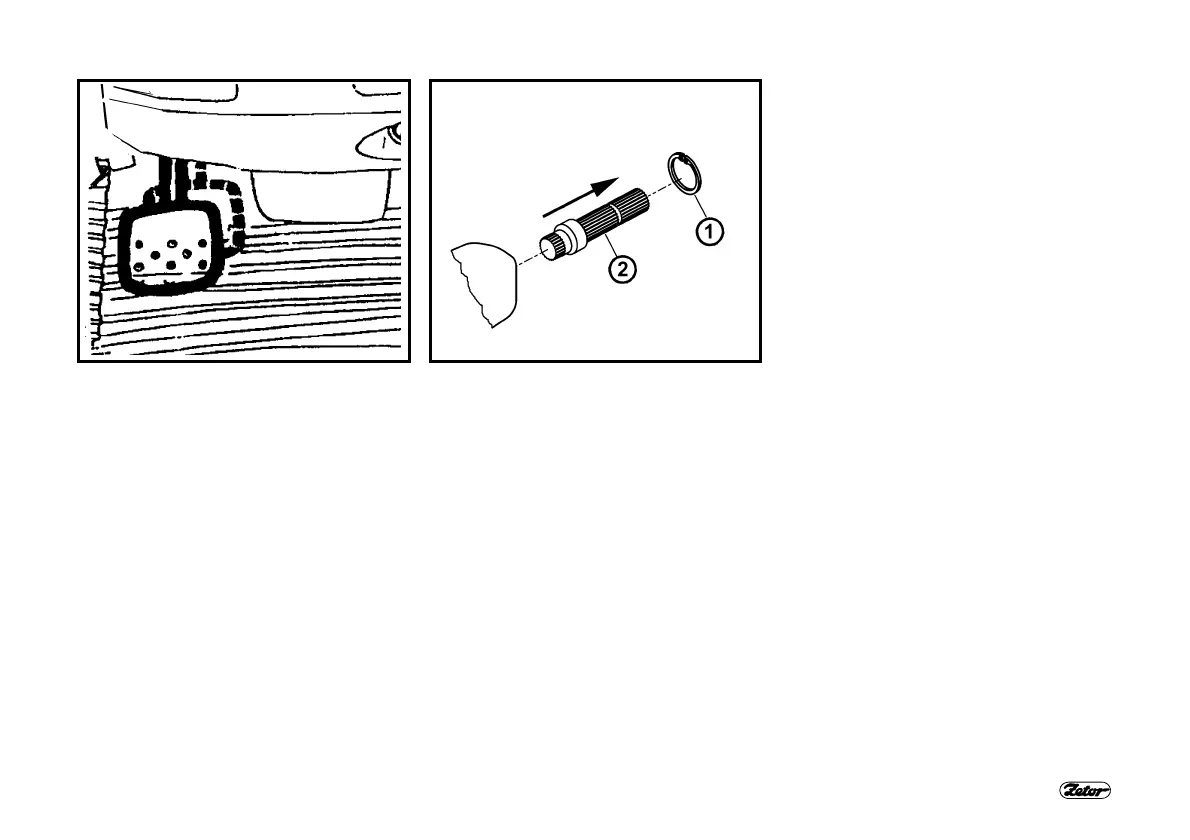

CHANGABLE PTO END PIECES
If equipped with reversation or creeper,
the tractor can be equipped with 6-spline
or 21-spline PTO end piece on request.
Changing the end piece:
1. Use circlip pliers to remove the
circlip (1).
2. Remove the end piece by pulling it
in the direction shown by the arrow
(2).
3. Procede contrariwise to place the
end piece, take proper care while
placing the circlip (1).
