Maintenance Report: Mechanical
MechanicalRoutine Inspectionsl
Mechanical Inspections
1. Check cable and make sure that they are in good condition.
2. Make sure that all locks work properly.
3. Make sure that all wheels are clean and that they move freely.
4. Make sure that the C-Section moves smoothly.
5. Inspect tube head cover seal. Reseal, if necessary.

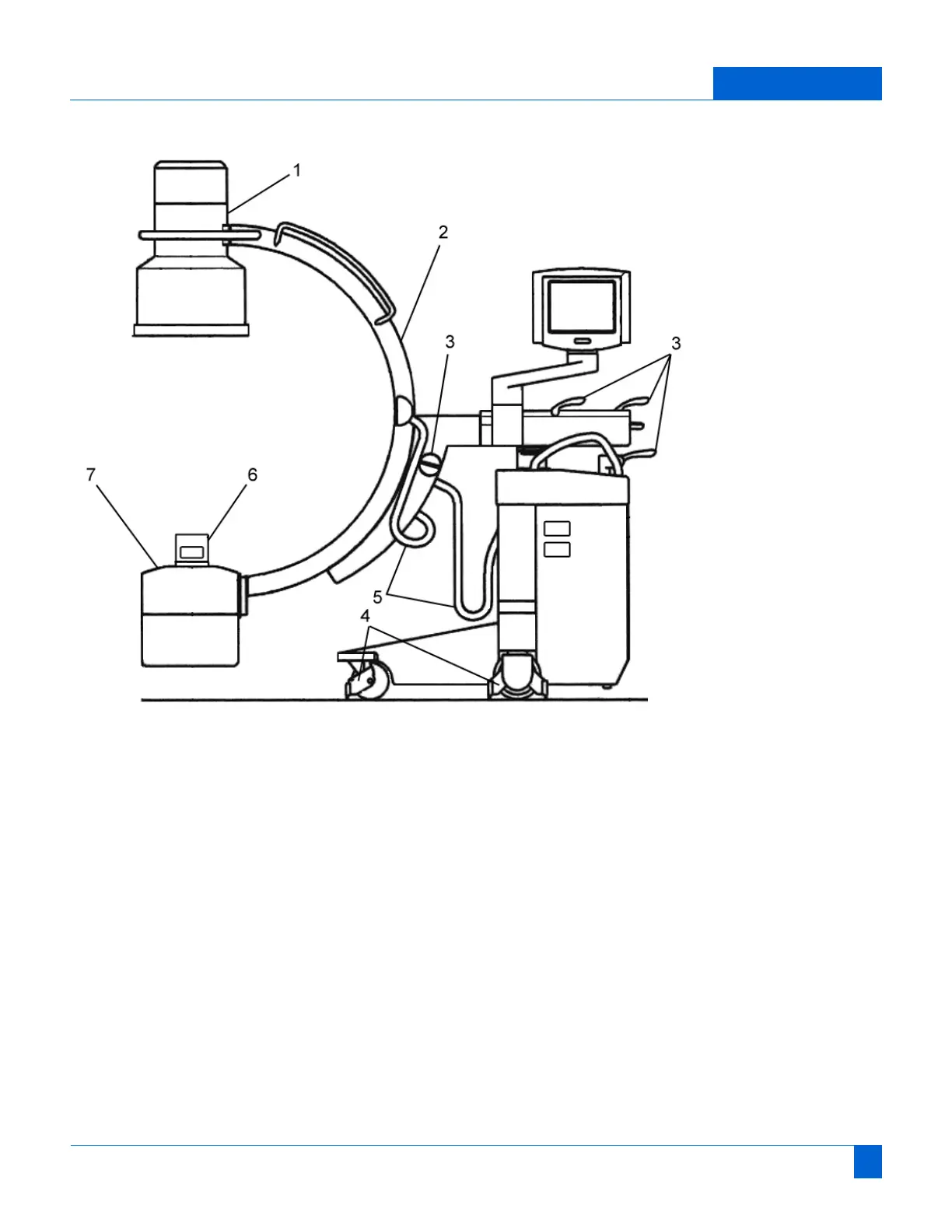

1 Camera Cover
2 C-Section
3 Locks
4 Wheels
5Cables
6 Skin Cone
7 Tube Head Cover
