Fig.4-16 Governor valve

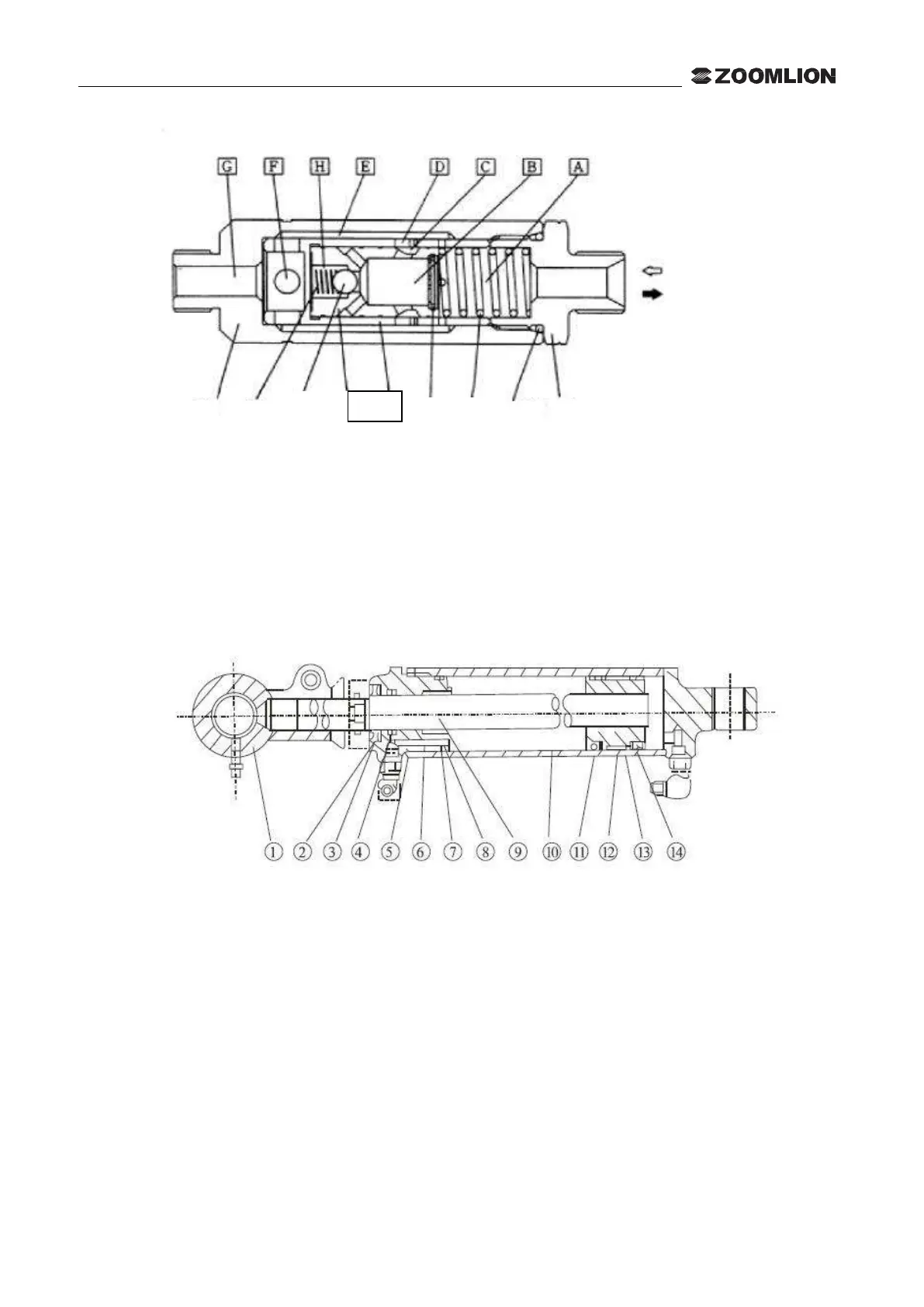

4.4.5 Tilt cylinder (Fig.4-17)
The tilt cylinder is the dual acting piston and composed of the cylinder block, piston rod, piston and cylinder
head. the front end of piston rod is fixed at both sides of gantry, the rear end of cylinder block is fixed on the
frame. It can make the mast tilt60° forward and 120° backward, so to keep the cargo in stable state when the
forklift performs the lifting and handling. The synchronization of left/right tilting cylinders will be achieved by
the adjusting piston rod.
1. Lug
2. Dust ring
3. Baffle ring
4. Yx seal ring
5. "O" ring
6. Guide sleeve
7. Bearing
8. "O" ring
9. Piston rod
10. Cylinder block
11. Yx seal ring
12. Support ring
13. Piston
14. Yx seal ring
Fig.4-17 Tilt cylinder
Fig. 5-17
Normal flow
direction
Throttling direction
Multi-way valve
side
Lifting cylinder side
Connector
Spring
Nylon
ball
Valve
element
Valve
sleev
e
Throttle
plate
Spring
O-ring
Valve body
