Instruction for use of the forklift with the triple pivot battery
29
4.6. Electric System
4.6.1 Overview
The electric system mainly includes the devices like the battery, traveling motor, lifting motor, electronic
control assembly, control switch, combination instrument and lighting lamp etc.

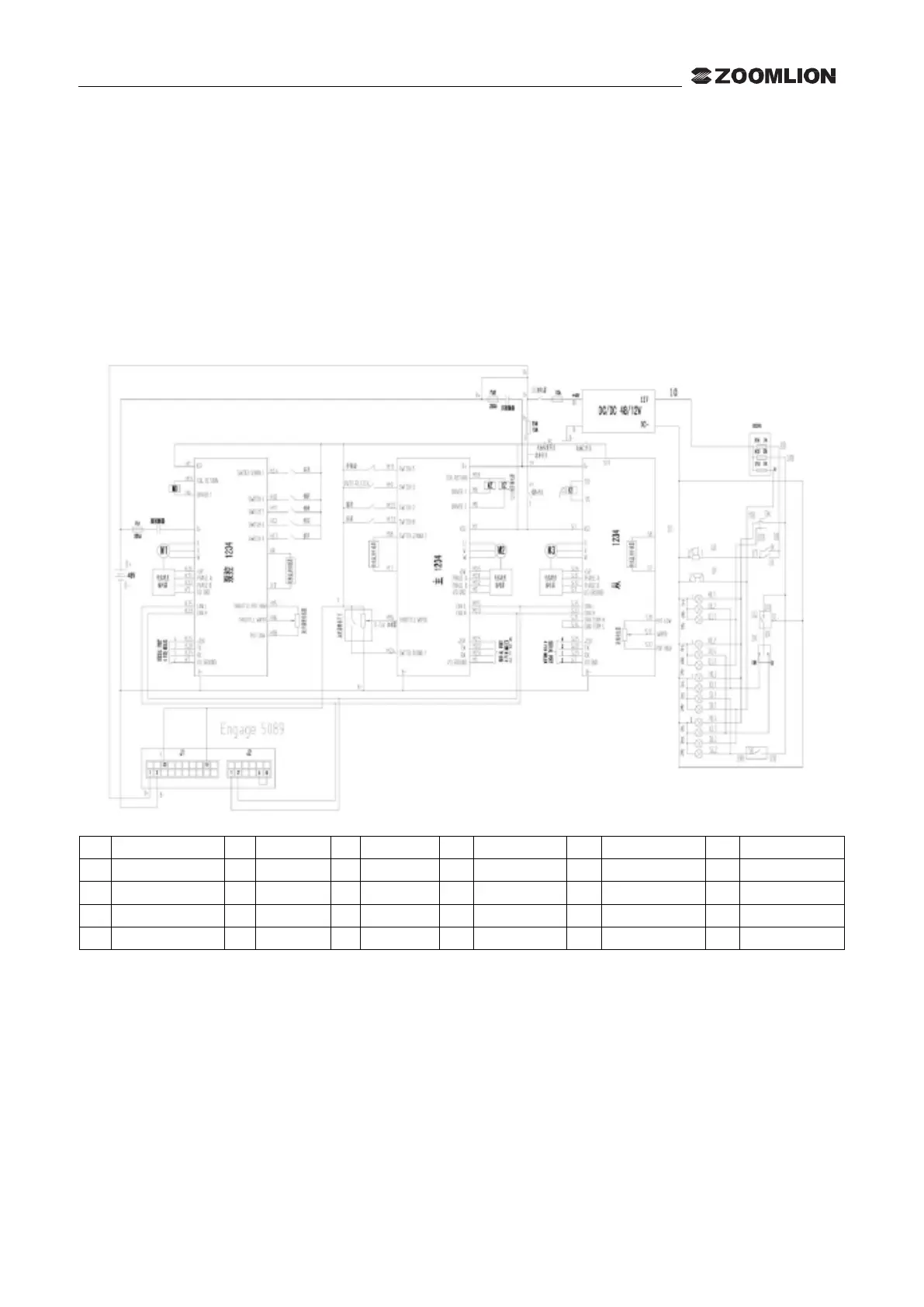

Electric principle drawing as shown in Fig.4-21
M0
Contactor of pump control
M2
Drive motor
JK
Foot horn switch
HL1
Left clearance light
XL4
Right turn signal light
DL1
Left back-up light
M1
Pump motor
M3
Driven motor
LK
Horn switch
XL1
Left turn signal light
QL2
Right headlamp
XL3
Right turn signal light
MZ
Master contactor
K2
DCDC relay
LB
Horn
QL1
Headlamp
HL3
Rear left clearance light
DL2
Rear left clearance light
DZ
Back-up buzzer
DK
Lighting switch
DF
Back-up buzzer
HL2
Right clearance light
SL1
Left brake light
SL2
Right brake light
DL1
Brake light switch
