ZXA10C300CongurationManual(CLI)

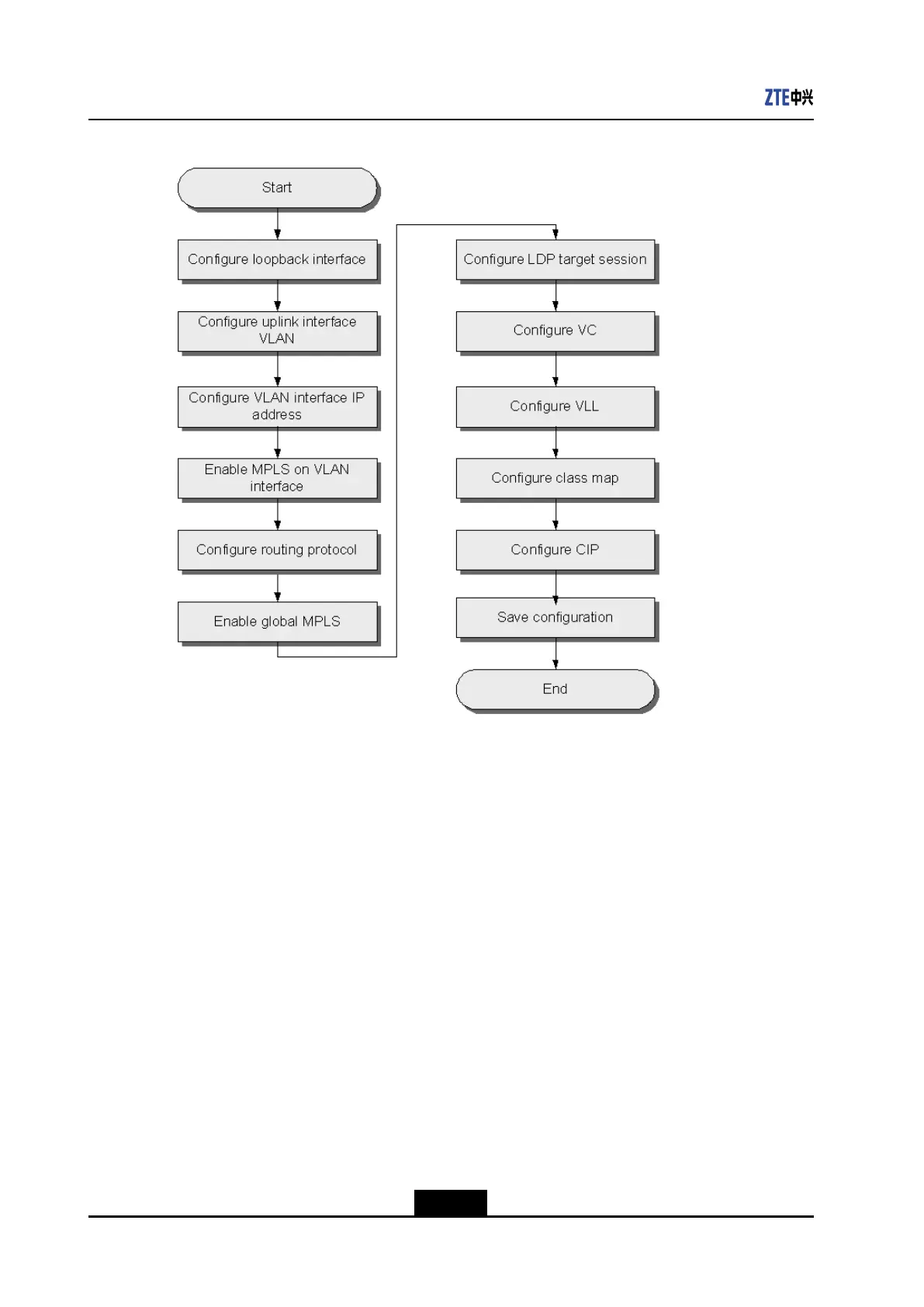

Figure16-21CongurationFlowchartofMulti-SegmentPWs

Steps

lCongurationonC300-1.

1.Conguretheloopbackinterface.

ZXAN(config)#interfaceloopback1

ZXAN(config-loopback1)#ipaddress1.1.1.1255.255.255.255

ZXAN(config-loopback1)#exit

2.ConguretheVLANoftheuplinkinterface.

ZXAN(config)#interfacegei_1/21/1

ZXAN(config-if)#switchportvlan10tag

ZXAN(config-if)#exit

3.ConguretheIPaddressoftheVLANinterface.

ZXAN(config)#interfacevlan10

ZXAN(config-if-vlan10)#ipaddress10.1.1.1255.255.255.0

4.EnabletheMPLSontheVLANinterface.

ZXAN(config-if-vlan10)#mplsip

ZXAN(config-if-vlan10)#exit

16-64

SJ-20130520164529-007|2013-06-30(R1.0)ZTEProprietaryandCondential
