Zte ZXV10 H11X User Manual

ZXV10 H11X (V1.0)Home Gateway User’s Manual
82 Confidential and Proprietary Information of ZTE CORPORATION
 Enable WAN Access
Enabling the host of the WAN to access the services of the
H110
 Mode
Selecting black list or white list
 IP
IP address of the host subject to access control
The default setting only allows hosts at the LAN side to access
services of the H110. If Enable WAN Access is set, then hosts of
the WAN side can also access the services. The parameter Mode is
only effective for the configured IP address. If it is set to white list,
only the configured IP address will be allowed to access services of
the H110. If it is set to black list, the configured IP address will not
be allowed to access services of the H110.

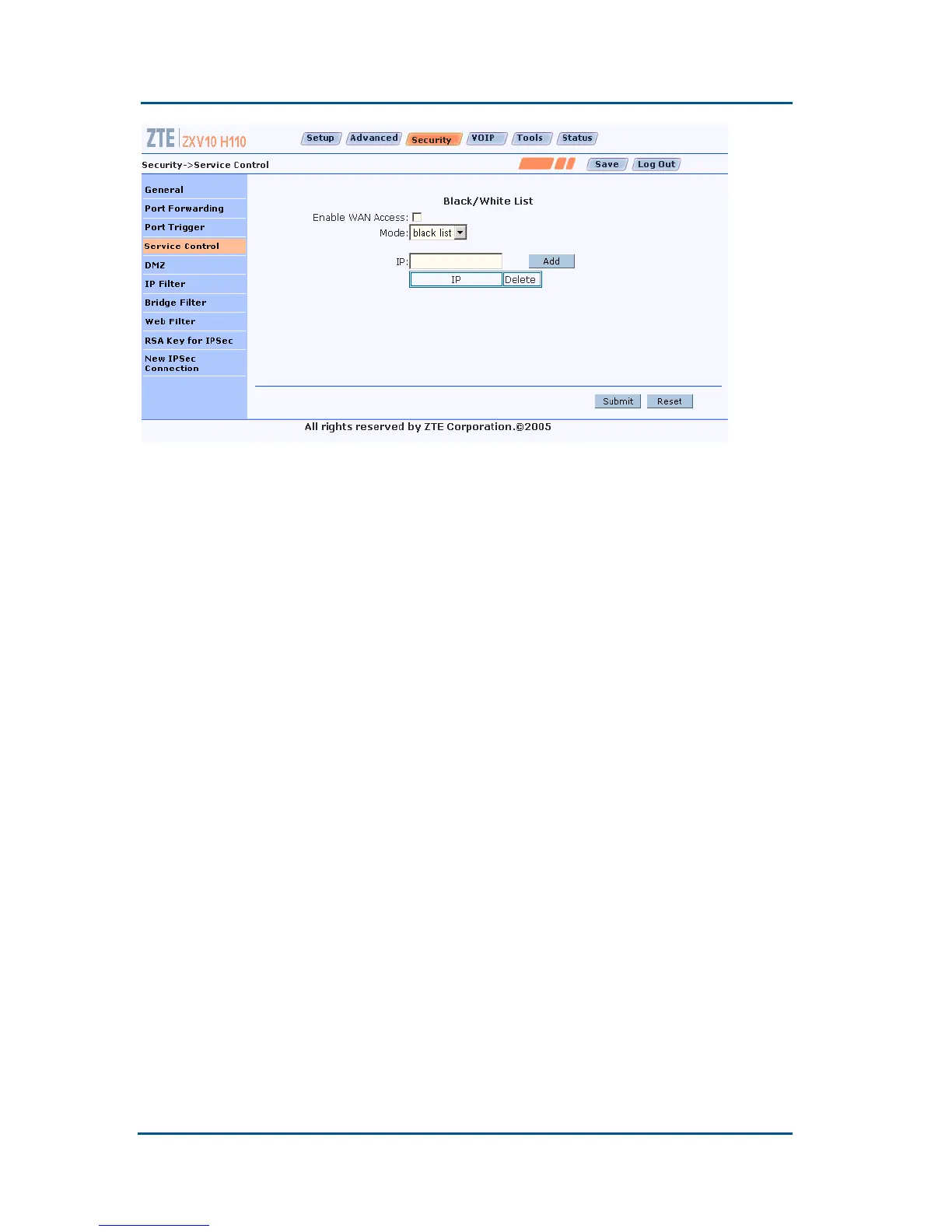

For example, configure a policy that allows the IP address
192.168.1.2 to access services of the H110.

Zte ZXV10 H11X Specifications

General

Model	ZXV10 H11X
Category	Gateway
Wireless	Yes
Operating Temperature	0°C to 40°C
Humidity	5% to 95% (non-condensing)
Antennas	2
Supported Protocols	IEEE 802.11b/g/n
Power Supply	12V DC
