Appendix C – IEC Installation
ACS/ACC/ACP 604/607 Drives ACx=ACS/ACC/ACP C-7
9. Earth the other end of the mains cable screen at the distribution
board.
10. Earth the motor cable screen 360 degrees on the motor side.
11. Connect the additional PE conductors (if present) of the mains and motor cables
to the PE terminal of the cabinet.
12. Connect the separate PE conductor (if used) to the PE terminal of the cabinet.
Mains and Motor Cable
Connections
13. Connect the phase conductors of the mains cable to the U1, V1
and W1 terminals and the phase conductors of the motor cable to
the U2, V2 and W2 terminals.
14. Check that the earthing is still OK.
15. Close the hinged assembly plate.

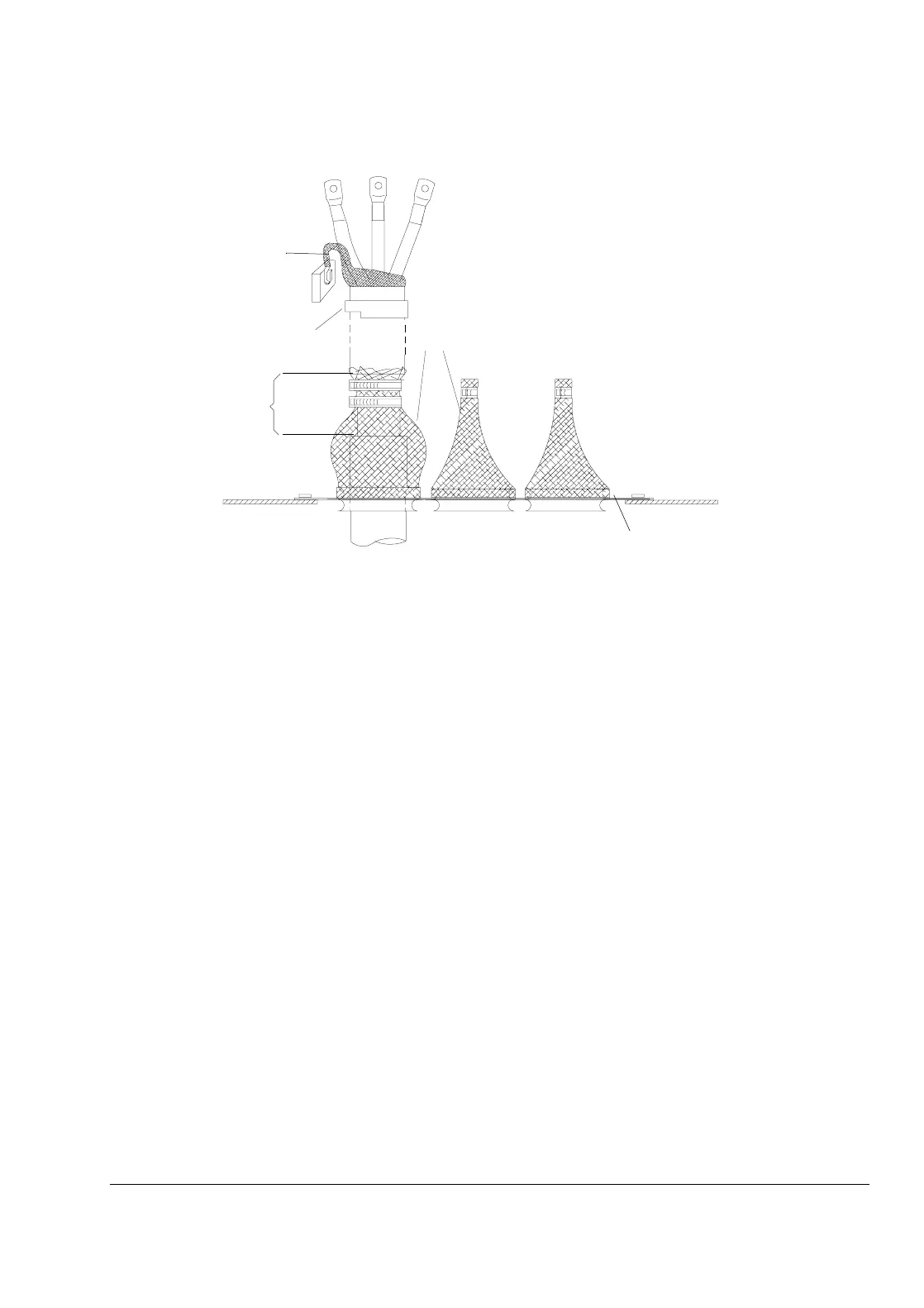

EMC sleeve
Lead-through
plate
Strip this part of
the cable
Cable shield
Base plate
PE terminal
Strain relief
To Next Page
