ABB aquamaster User Manual

Electronic Commercial Water Meter
AquaMaster™ 3 Electrical Installation
IM/AM Issue 13 13
3 Electrical Installation
3.1 Bonding/Grounding
Caution. For safety reasons and optimum performance, the flowmeter, pipelines and medium must be
correctly bonded and grounded according to regulations.
Note.
 The flow sensor must not be connected to a ground spike.
 For bonding connections use ≥4mm2 (<10AWG) cable.
 Sensors ≤80mm do not require grounding rings.
 Connect the transmitter ground connection to the flowmeter body ground – see Fig. 3.6 and
Fig. 3.7.

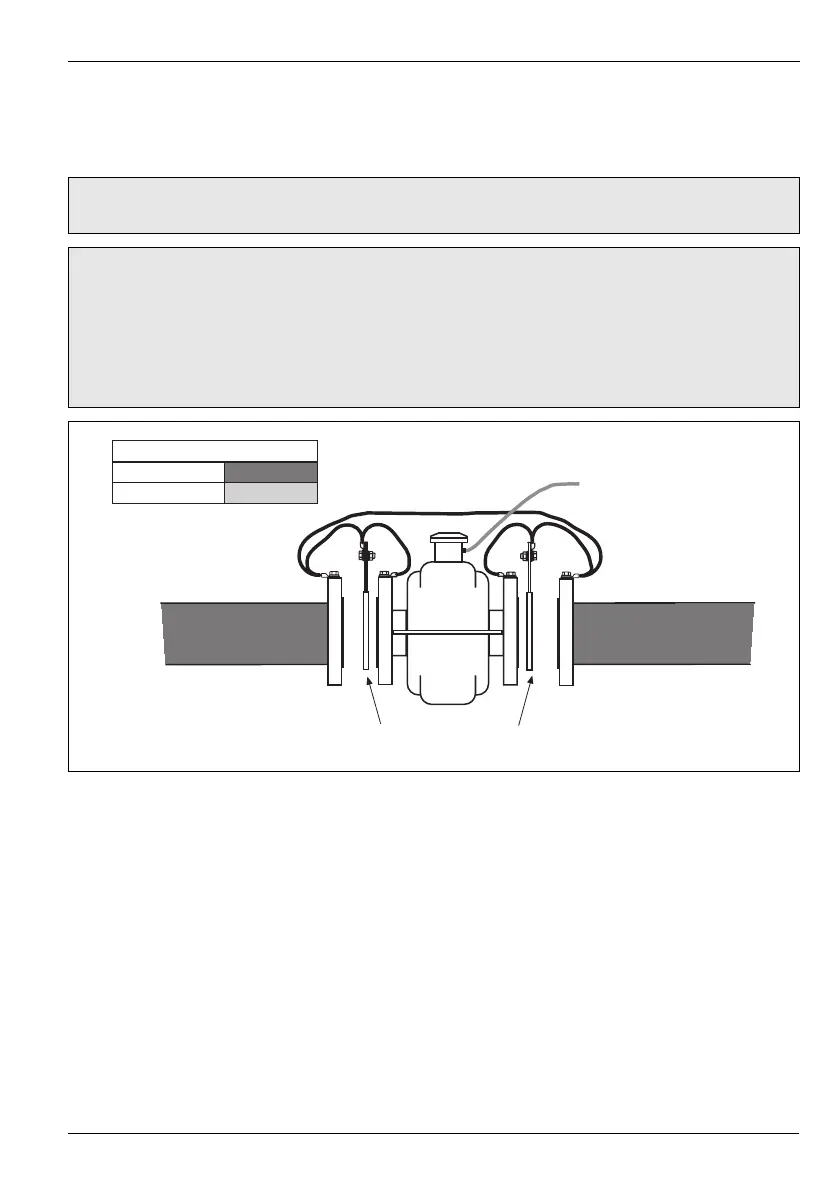

Fig. 3.1 All Metal Pipe, Including Lined Metal Pipe.
Fluid Contact Rings
See Figs. 3.6 and 3.7
Key for Figs. 3.1 to 3.9
Metal Pipes
Plastic Pipes

ABB aquamaster Specifications

General

Type	Electromagnetic flowmeter
Power Supply	100 to 240 VAC, 24 VDC
Communication	HART, Modbus, Profibus
Ingress Protection	IP68
Temperature Range	-40°C to +70°C (-40 to +158 °F)
Applications	Water, wastewater
Lining material	rubber
Electrode material	Stainless steel, Hastelloy, Titanium
Protection Rating	IP67, IP68
Output Signals	4-20 mA, pulse, frequency
Storage Temperature	-40 to +70 °C (-40 to +158 °F)
Accuracy	±1 mm/s
Operating Temperature	-40°C to +60°C
Ambient Temperature	-40°C to +60°C
