AquaMaster™ 3 Electrical Installation
32 IM/AM Issue 13
3.3.10 Environmental Protection
Warning.
 Potting materials are toxic – use suitable safety precautions.
 Read the manufacturers instructions carefully before preparing the potting material.

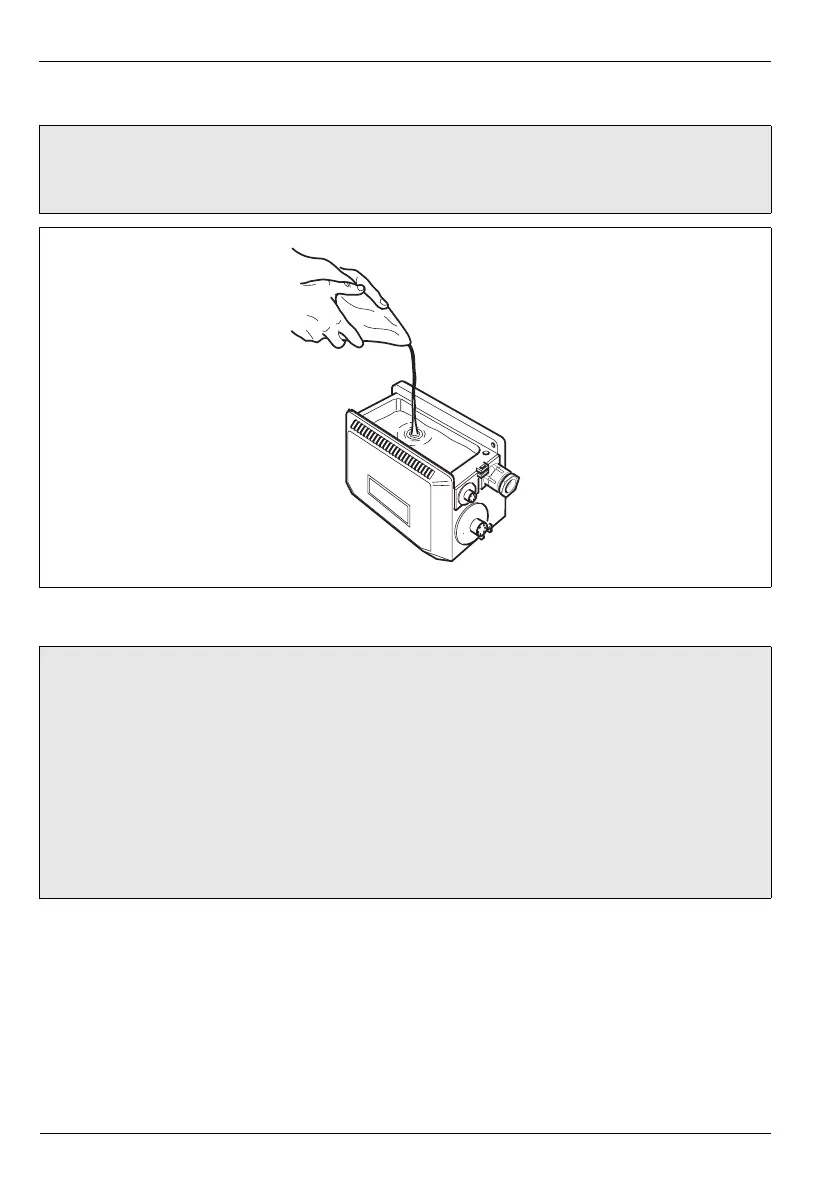

Fig. 3.25 Potting the Transmitter
Caution.
 For IP68 protection against water ingress, pot the termination area on the metal transmitter
versions.
 Check all connections and operations before potting – see ELECTRICAL INSTALLATION.
 Do not overfill or allow the potting material to come into contact with O-rings or grooves; allow for
inserting battery tray.
 Do not let potting material enter conduit(s), if used.
 Insert battery tray into potting before it sets and pull through the battery connection wires, thereby
ensuring they are above the potting level.
 Keep unit upright whilst potting sets (minimum – two hours).
