102 EasyLine EL3000 Series Commissioning Instructions
Operation - Menu Mode

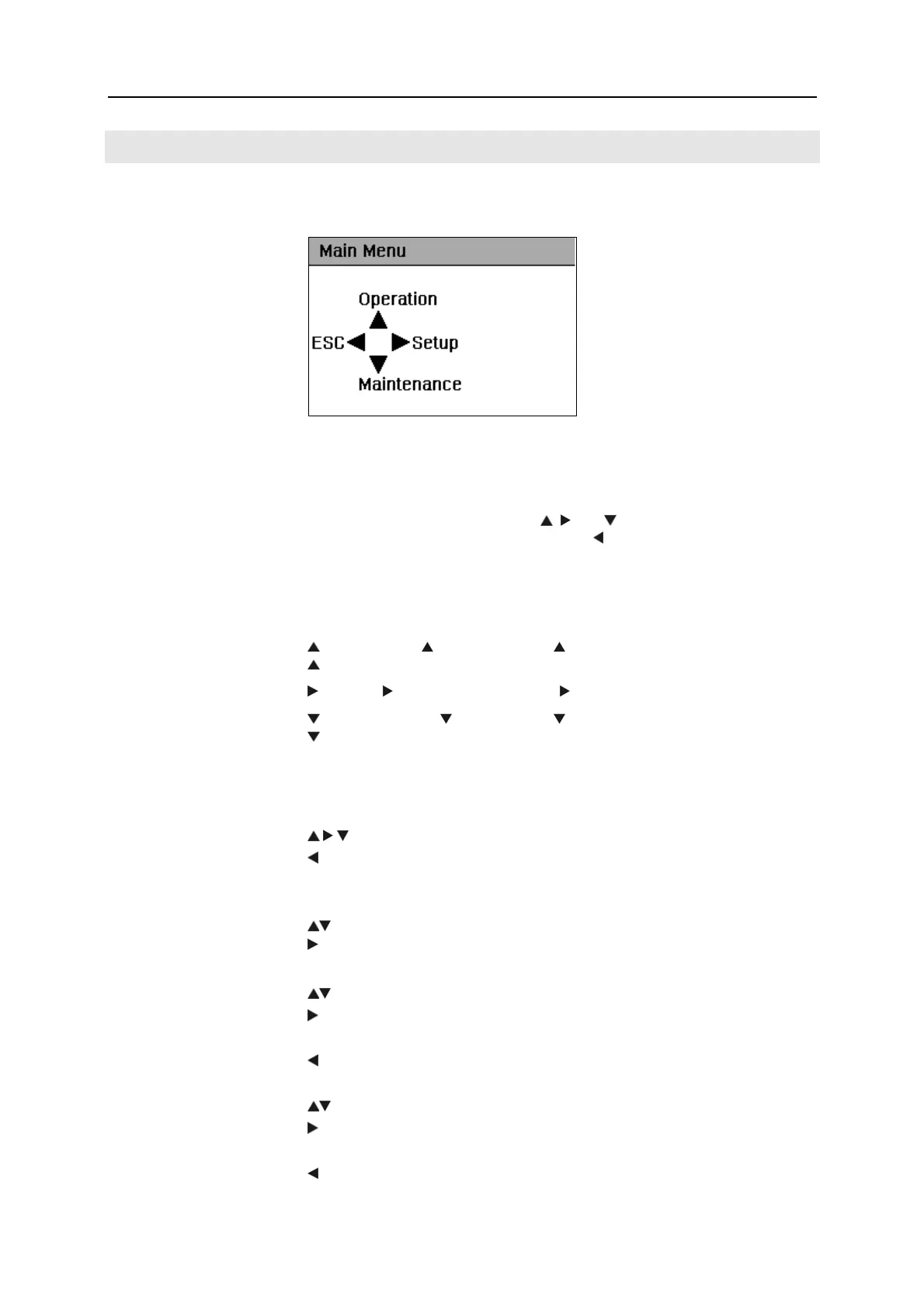

Display in Menu Mode
Structure of the Menus
Starting from the main menu, each menu (see page 104) contains a
maximum of three menu items ("3-point menu"). Each menu option is
assigned to one of the three keys
, and ; each menu option can
therefore be selected directly. The button
is used to return to the next
higher menu.
The functions which are normally most frequently required are arranged
in the menu in such a way that they can be called by repeatedly pressing
the same button:
Operation Calibration Manual Calibration
Zero Point / Single Point
Setup Calibration Data Test Gas Set Points
Maintenance Diagnosis Device Status
Status Messages
Key Functions in Menu Mode
3-point menu
Select menu item
Return to the next higher menu
OK
Return to measuring mode
Component list
Select component
or OK Call up selected component for processing
Parameter list ("Selector")
Select parameters
Call up change in value
OK
Accept all displayed values and return to the next higher menu
Discard all displayed values and return to the next higher menu
Change in value
Change selected position
Select position to be changed
OK
Confirm altered value and return to the parameter list
Discard altered value and return to the parameter list
