ABB EasyLine Series User Manual

54 EasyLine EL3000 Series Commissioning Instructions
Gas Connections for Limas23 (Model EL3020)

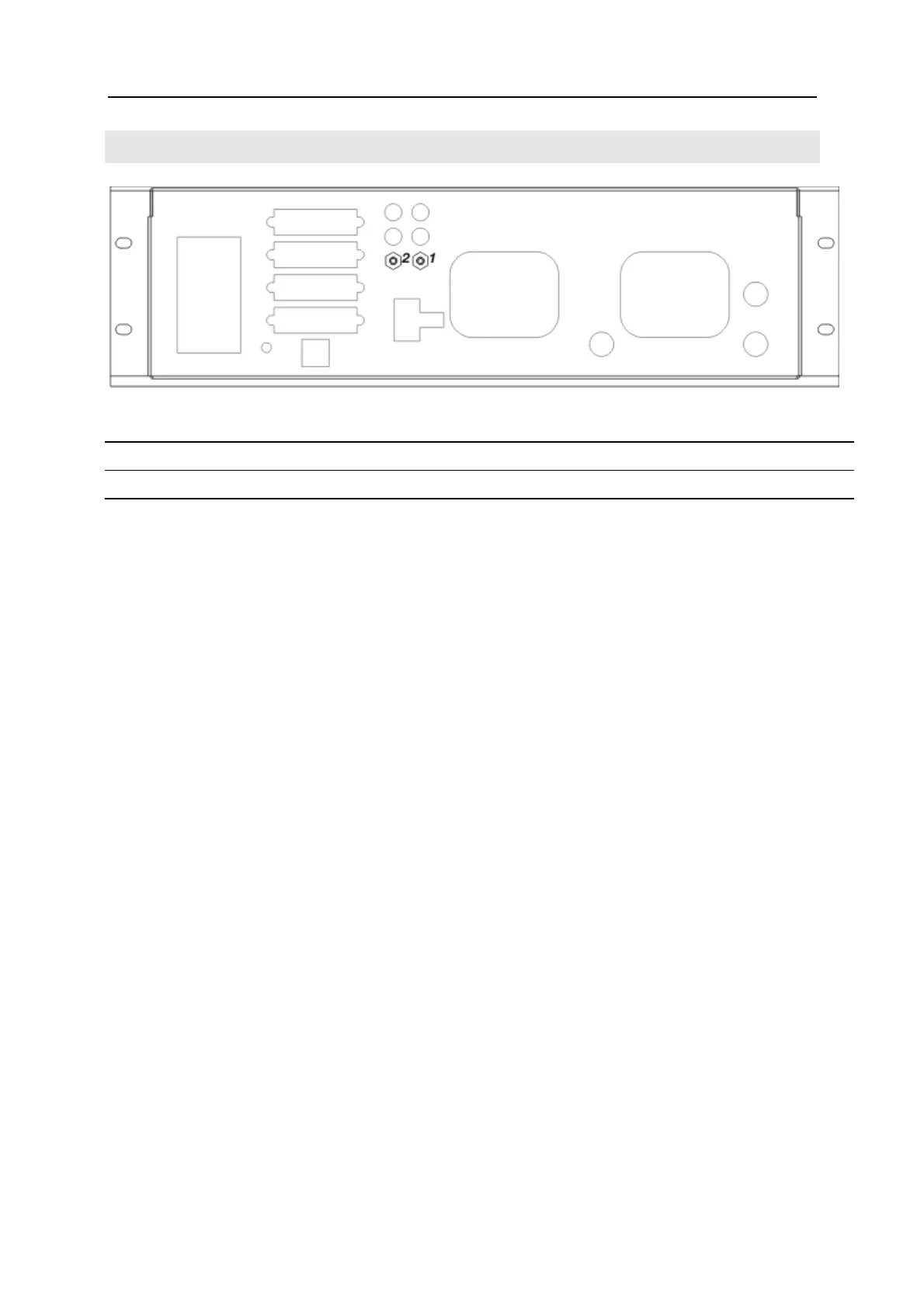

Limas23: Gas Connections
1
Sample gas inlet
2
Sample gas outlet
Design: Screwed fittings with hose nozzles (stainless steel 1.4305/SAE 303) for hoses
with 4 mm inner diameter (supplied)
Note: The pressure sensor (standard) and the oxygen sensor (option) are connected
internally in the outlet of the sample cell.
