ABB EasyLine Series User Manual

Installing the Gas Analyzer 67

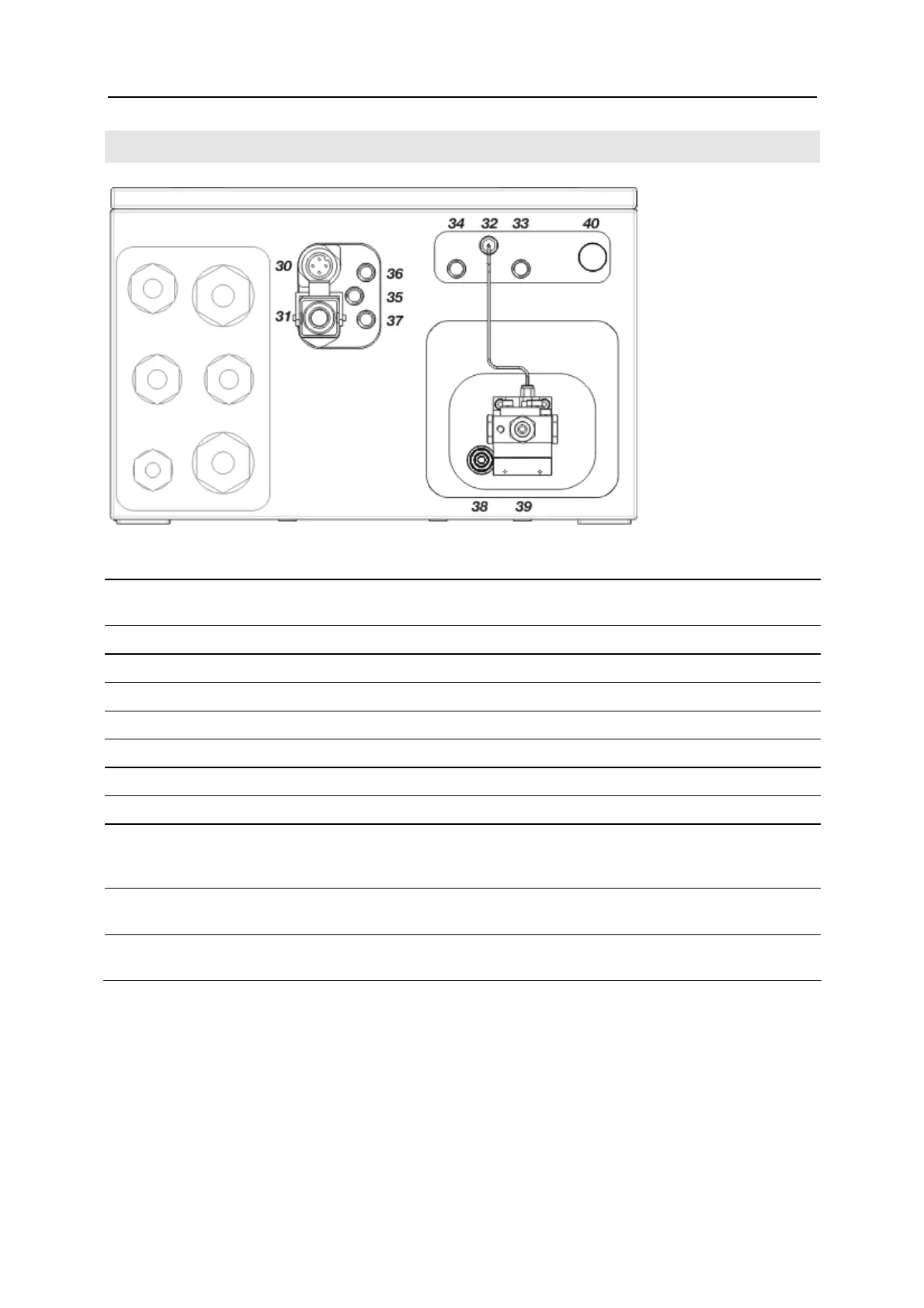

Gas and Electrical Connections for Fidas24 (Model EL3040)
Fidas24: Gas and Electrical Connections
30
Power supply 115 V AC or 230 V AC for heating the detector and sample gas inlet
(4-pin plug connector, connecting cable supplied)
31
Electrical connection to the heated sample gas inlet (hard mounted)
32
Test gas outlet
33
Zero gas inlet
34
Span gas inlet
35
Combustion air inlet
36
Combustion gas inlet
37
Instrument air inlet
38
Exhaust air outlet
Design: Male fitting for connecting the exhaust air outlet (stainless steel tube with outside
diameter = 6 mm, included in the scope of supply and delivery of the gas analyzer).
39
Sample gas inlet, heated or unheated
Design: Screw joint for PTFE or stainless steel tube with outside diameter = 6 mm
40
Pressure equalizing opening with protective filter (the protective filter must be protected against
moisture)
Design of the gas connections unless stated otherwise:
1/8 NPT female thread for threaded connections (not supplied)
