Action

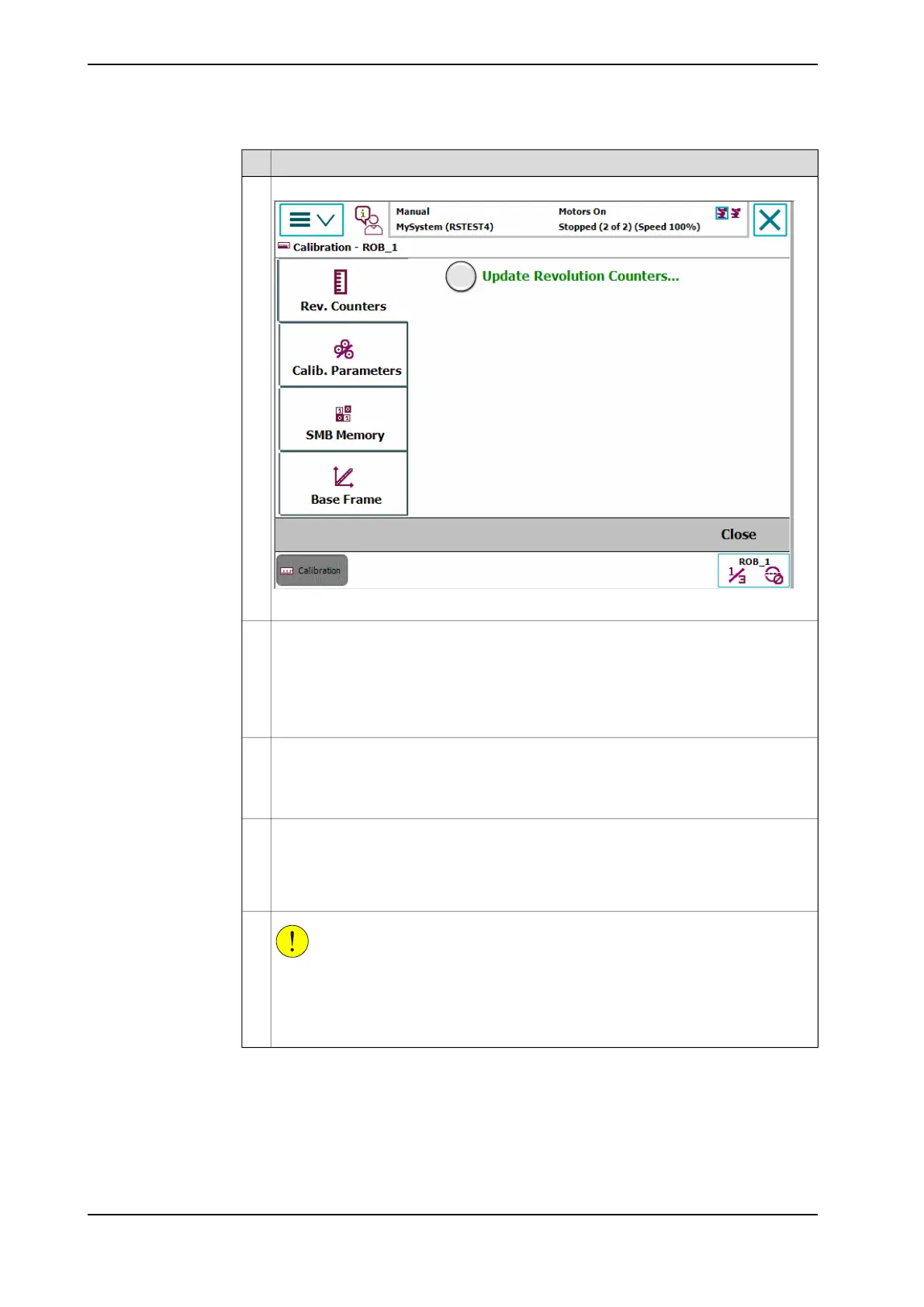

A screen is displayed, tap Rev. Counters.
en0400000771
3
Tap Update Revolution Counters....
A dialog box is displayed, warning that updating the revolution counters may change
programmed robot positions:
• Tap Yes to update the revolution counters.
• Tap No to cancel updating the revolution counters.
Tapping Yes displays the axis selection window.
4
Select the axis to have its revolution counter updated by:
• Ticking in the box to the left
• Tapping Select all to update all axes.
Then tap Update.
5
A dialog box is displayed, warning that the updating operation cannot be undone:
• Tap Update to proceed with updating the revolution counters.
• Tap Cancel to cancel updating the revolution counters.
Tapping Update updates the selected revolution counters and removes the tick from
the list of axes.
6
CAUTION
If a revolution counter is incorrectly updated, it will cause incorrect manipulator posi-
tioning, which in turn may cause damage or injury!
Check the synchronization position very carefully after each update. See Checking
the synchronization position on page 215.
7
214 Product manual - IRB 2400
3HAC022031-001 Revision: P
© Copyright 2004-2018 ABB. All rights reserved.
5 Calibration information
5.5 Updating revolution counters
Continued
