2 Installation and commissioning
2.5.9. Fitting equipment on robot
993HAC022033-001 Revision: K
© Copyright 2004-2011 ABB. All rights reserved.
xx0300000299

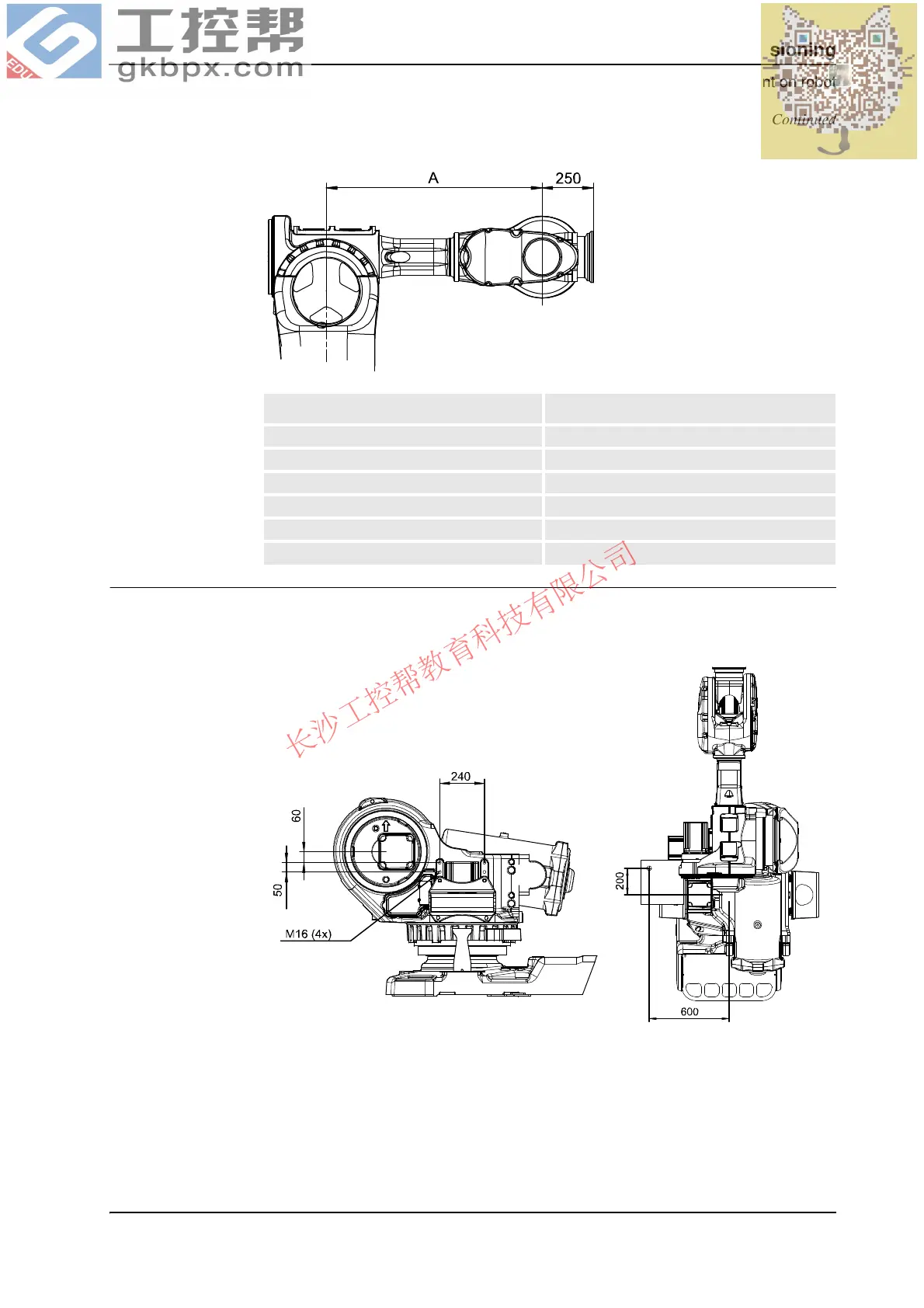

Illustration, fitting of extra equipment on frame
The illustration below shows the mounting holes available for fitting extra equipment on the
frame.
xx0100000117
Robot variant A
IRB 7600 - 500/2.55 1056 mm
IRB 7600 - 500/2.3 806 mm
IRB 7600 - 400/2.55 1056 mm
IRB 7600 - 340/2.8 1306 mm
IRB 7600 - 325/3.1 1556 mm
IRB 7600 - 150/3.5 2012 mm
Continued
Continues on next page
