ABB MNS iS System Setup & Operation Quick Guide / System Release 6.0 – Rev.2 / Aug. 2011
1
1
5
5
*Specifi
c characteristics of Fixed MStart modules
see page 10
1.6.2 Power Modules MStart / MFeed
The withdra
wable MStart / MFeed modules are
available in the sizes from 6E/4 to 24E depending
on the kW rating of the connected motor / load.
For module dimensions and selection tables,
please see page 9.
A combin
ation of high precision shunt and micro-
processor forms a complete measuring system,
which does not only measure current very
precisely, but at the same time measures the
voltage and contact temperature.

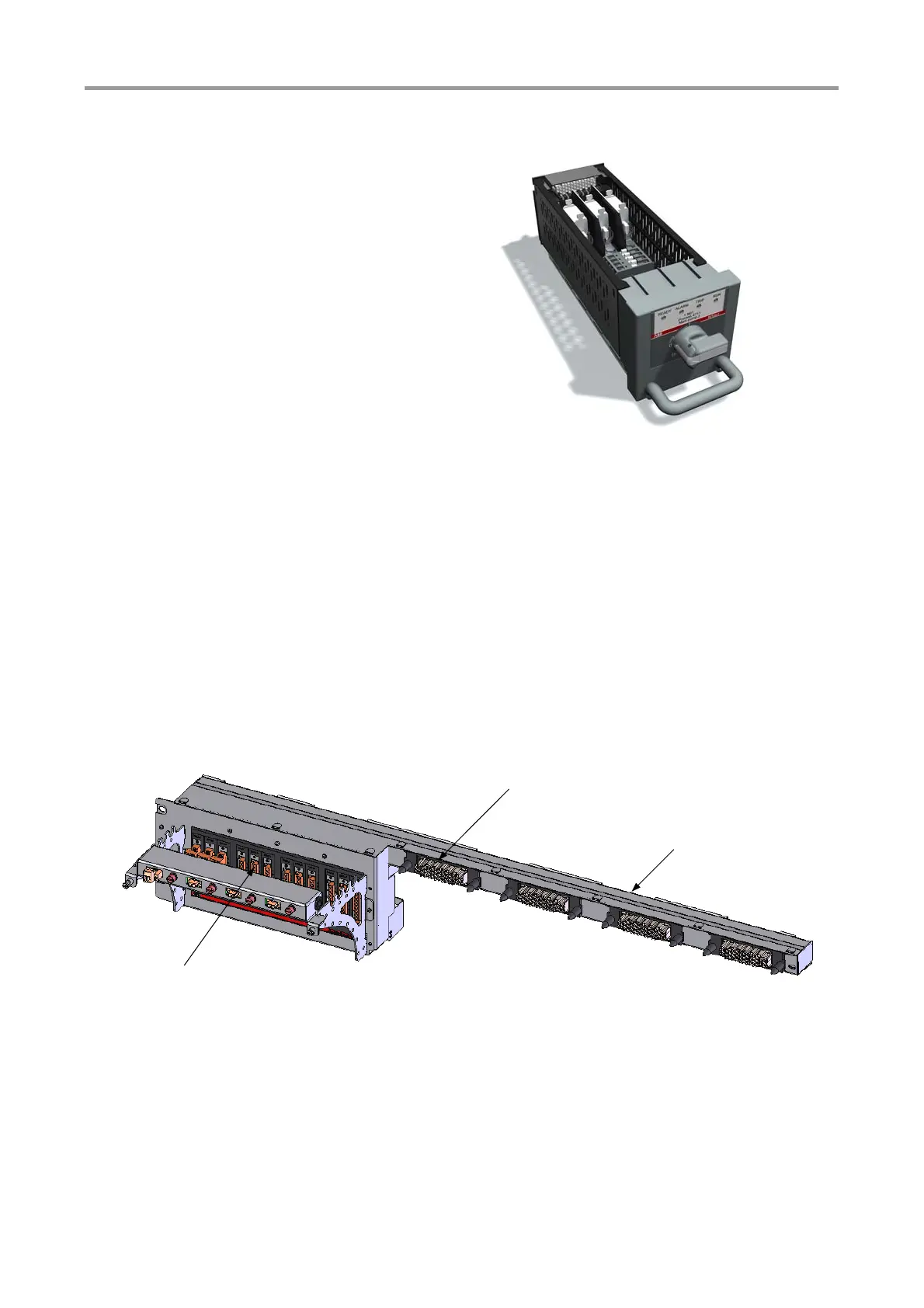

Figure 10 MStart module size 6E/4
1.6.3
Conventional Feeder Modules
Feeder modules with module sizes described on
page 9, are also available for conventional
solutio
ns, ready to be integrated into MNS iS
switchgear.
Utilisation of this option enables more cost
effective solutions for energy distribution
applications, where integrated solutions are not
required.
Connection details see section
Control terminal plug for
6E/4 conventional feeder module
Control Condapter
conventional type
Control connection plug set
with 3x8 control terminals
Figure 11 Control Condapter for conventional feeders
