1.6.6 MSpeed - Integration of Variable
Speed Drives ACS850
MSpeed
stands for the integration of industrial
drives (variable speed drives) in MNS iS.
MSpeed is engineered for withdrawable and fixed
techniques:
 The withdrawable technique is available up to
and includes 45kW for 400V, and 55kW for
500V motors.
 The fixed technique (full height cubicle, without
illustration) is designed for motors up to 160kW
for 400V, and 200kW for 500V systems.
Available module types are:
 fused and fuseless type 2 coordination for
65kA at 400V / 500V
 fused type 2 coordination for 80kA for 400V /
500V
For the integration into the MNS iS
communication concept no MControl is needed.
Instead, MSpeed is directly connected to fieldbus
communication to DCS and accessed via MView.

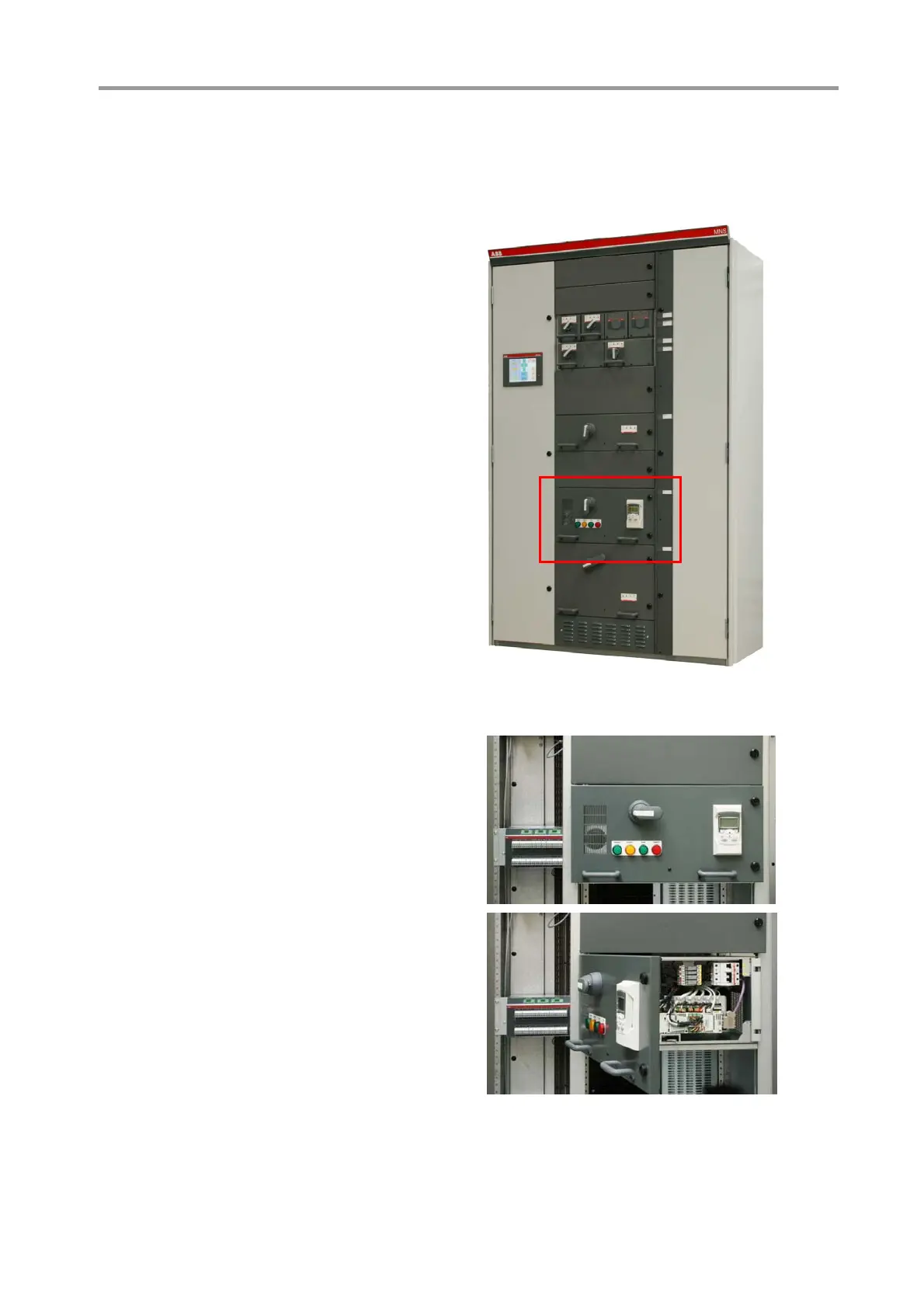

Figure 16 MSpeed in MNS iS board
Figure 17 MSpeed mounted in withdrawable MStart
module
1
1
8
8
