1.6.4 Integrated Controller Module MControl
The MControl is a po
werful and modular platform
for communication, control, data processing and
protection functions. The main control board is
based on a microprocessor platform and includes
memory for application and process data and a
fast communication interface to MLink as well as
an interface to the MStart / MFeed.
The module is fully scalable and offers multiple
solutions for digital and analogue I/O together
with addition relay, measurement and
communication cards for specific applications
For description of available interfaces/
connectors, please see section 2.3.
Main board
DIDO board
PTC board
AIAO board
PROFIBUS board
Version example
The MControl modules are plugged into separate
slots of the control condapter in the control cable
compartment. Each slot belongs to a dedicated
power module.

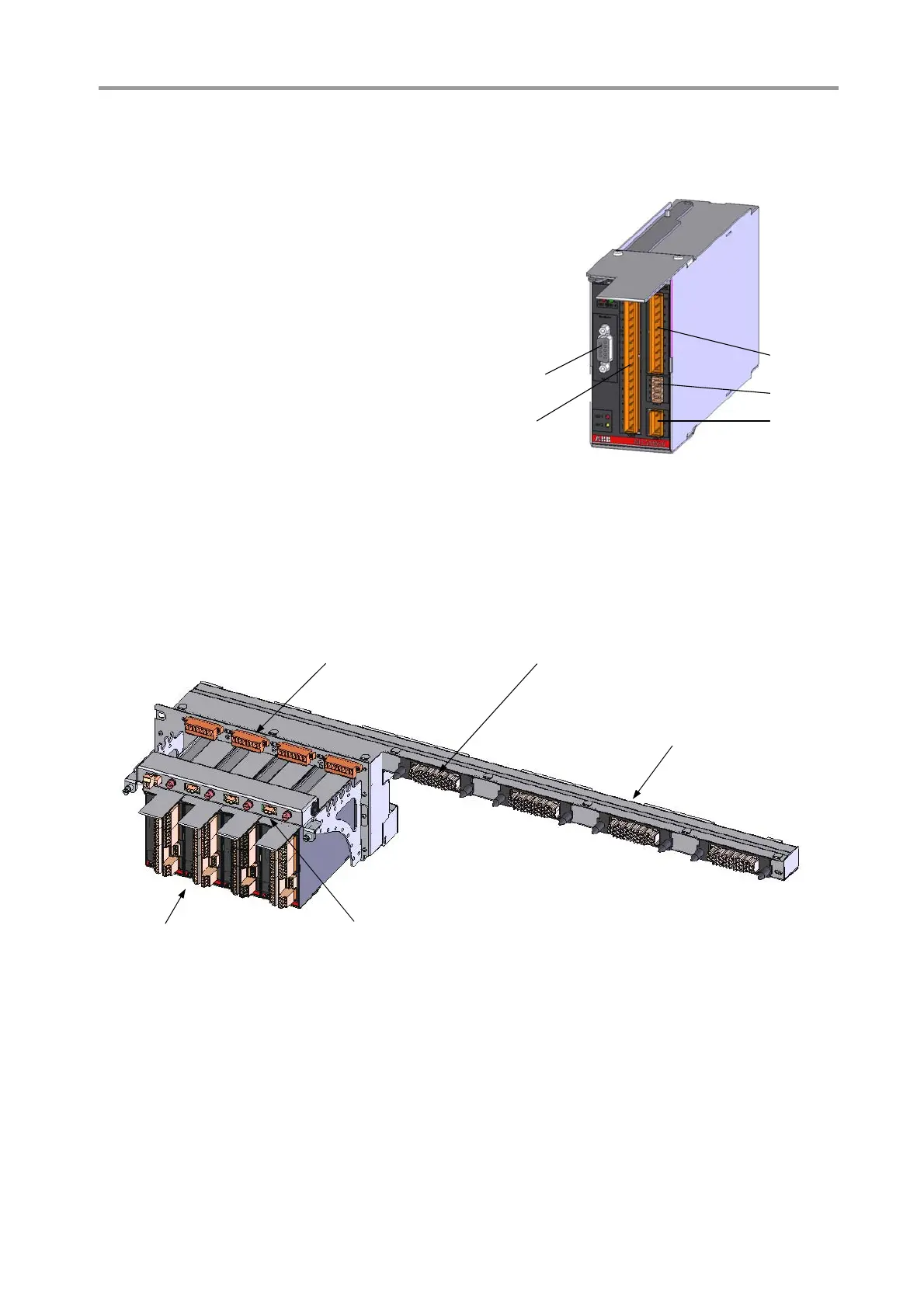

Figure 12 MControl module
Remote Control Unit and
Emergency Stop connection
Control Terminal Plugs
(interface to MStart / MFeed))
MFuse connection
MControl connected to
Control Condapter
Control Condapter
Figure
13 MControl connected to Control Condapter
