ABB MNS iS System Setup & Operation Quick Guide / System Release 6.0 – Rev.2 / Aug. 2011
2
2
5
5
2.3.2 Connection to Control Condapter
Each MControl is plugged into a slot of the
control condapter located in the control
compartment of the MNS iS cubicle (see Figure
25).
The ho
rizontal and vertical position of this slot
corresponds with the dedicated power module
(MStart / MFeed) location. After insertion, the
MControl unit is internally connected (hardwired)
to this MStart / MFeed module.
1 2 3 4
MStart / MFeed module position in compartment
MControl
1 2 3 4

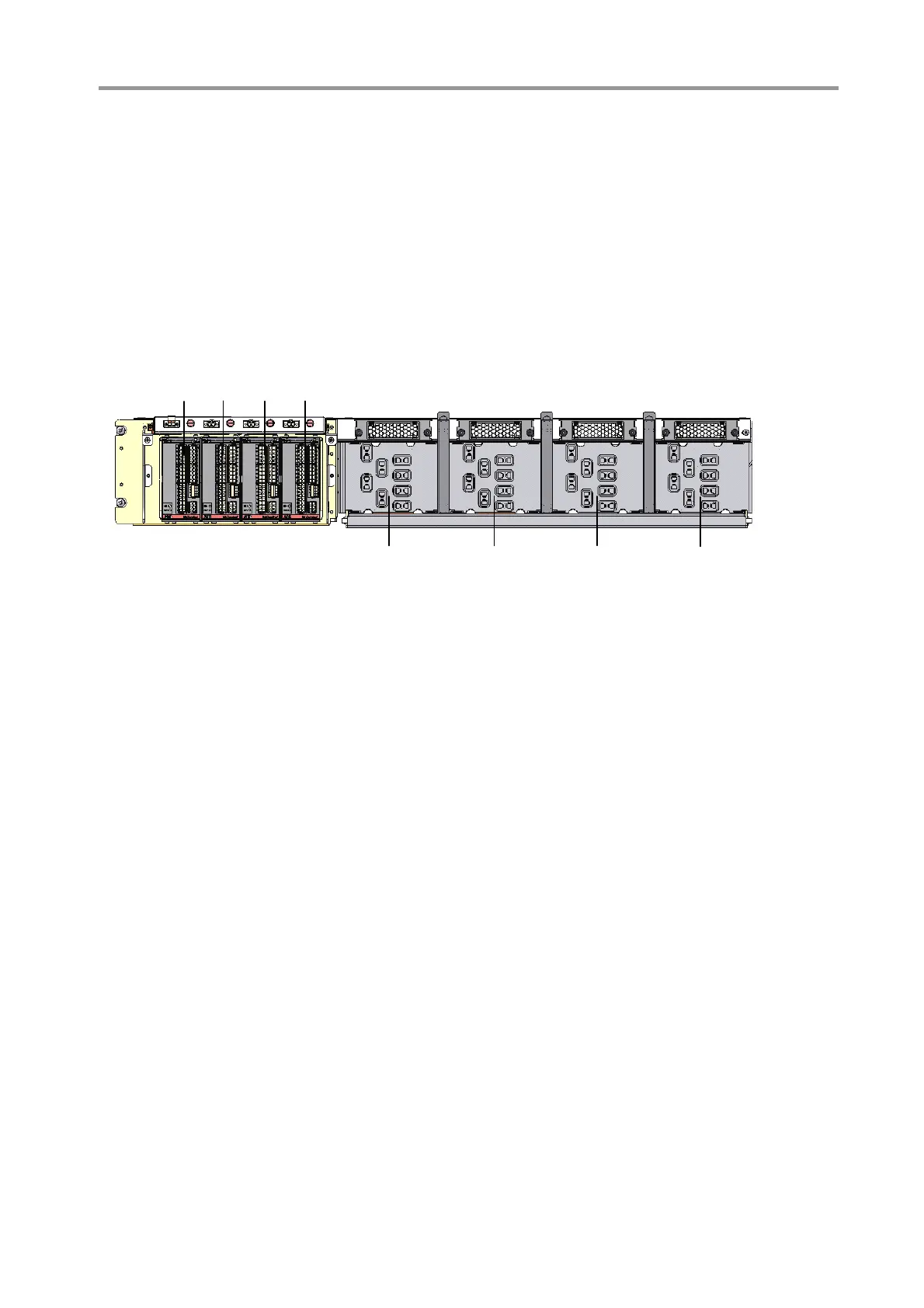

Figure 25 MControl location
