Electrical accessories | 1 - Electrical control accessories
YO-YC-YO2: Connections
Further information is available on page 59, or on the site http://www.abb.com/abblibrary/DownloadCenter/,
where the wiring diagram is available 1SDM000091R0001.
A4
X
XV
X
XV
A1
A4
+
~
SC
~
-
C2
C2
C2
YC
C1
C1
C1
77
1XB3
2XB3
A4
X
XV
X
XV
A1
A4
75
C11
C11
C11
YO
C12
C12
C12
-
~
SO
~
+
XB4 1
XB4 2
+
~
SO
~
-
D2
D2
D2
YO2
D1
D1
D1
72
XB5 1
XB5 2

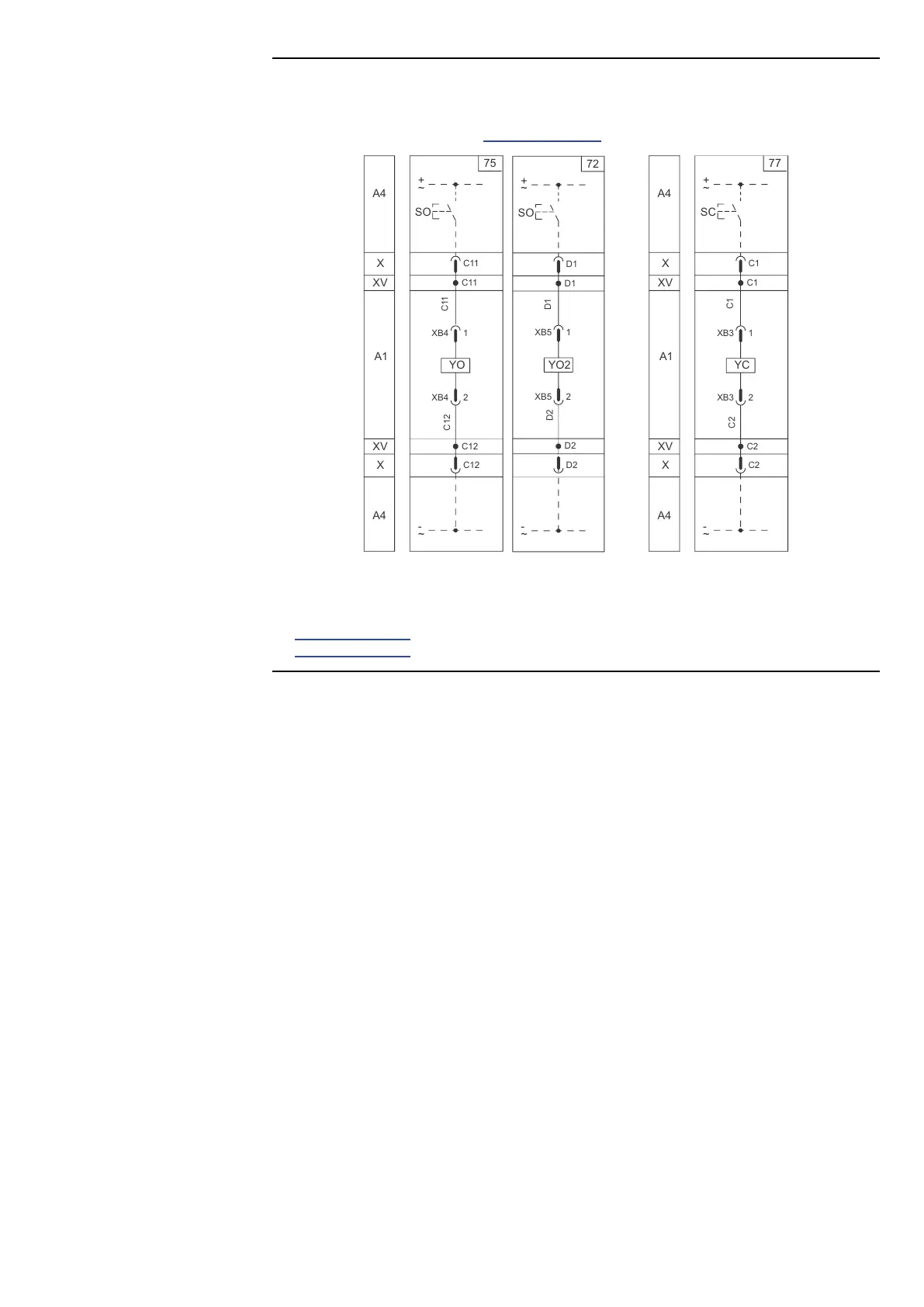

Diagrams 75 - 72 - 77
Information on assembly is available on the web site http://www.abb.com/abblibrary/DownloadCenter/, in
particular with the kit sheets:
• 1SDH000999R0502 for coils YO and YO2
• 1SDH000999R0503 for the YC coil

ABB SACE Emax 2 Specifications

General

Type	Air circuit breaker
Rated Current	800 A to 6300 A
Breaking Capacity	Up to 150 kA at 415 V AC
Frequency	50/60 Hz
Number of Poles	3, 4
Installation	Fixed or withdrawable
Standards	IEC 60947-2
Trip Unit	Ekip Touch, Ekip Hi-Touch
Communication	Modbus, Profibus, Ethernet
