ABB TPS48-F Series User Manual

Operation Manual / TPS44-F.. - TPS61-F..
8 Disassembly and assembly / 8.6 Table of tightening torques
© Copyright 2020 . All rights reserved. HZTL2412_EN Rev.G March 2020

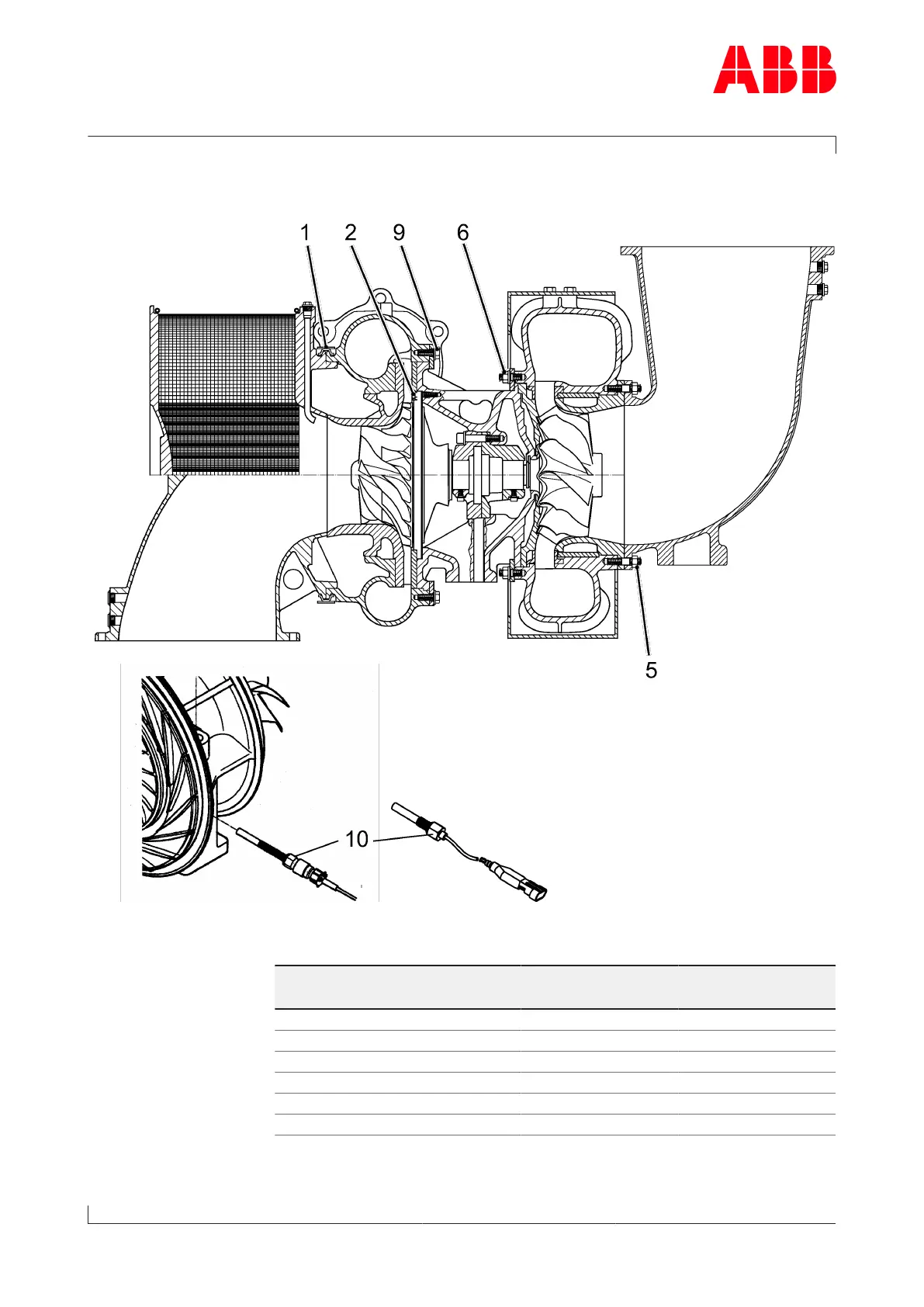

8.6 Table of tightening torques
The following tightening torques must be observed for the specified
bolted connections:
Tightening torques [Nm]
Position Part num-
ber
TPS44 TPS48 TPS52 TPS57 TPS61
1 72020 60Nm 60Nm 60Nm 60Nm 60Nm
2 42008 6Nm 10Nm 10Nm 20Nm 40Nm
5 52433 20Nm 20Nm 40Nm 65Nm 65Nm
6 51007 25Nm 25Nm 45Nm 75Nm 75Nm
9 72011 35Nm 35Nm 70Nm 105Nm 170Nm
10 86505 15Nm 15Nm 15Nm 15Nm 15Nm
Page 100 / 113
