8.3 Disassembling and assembling turbocharger

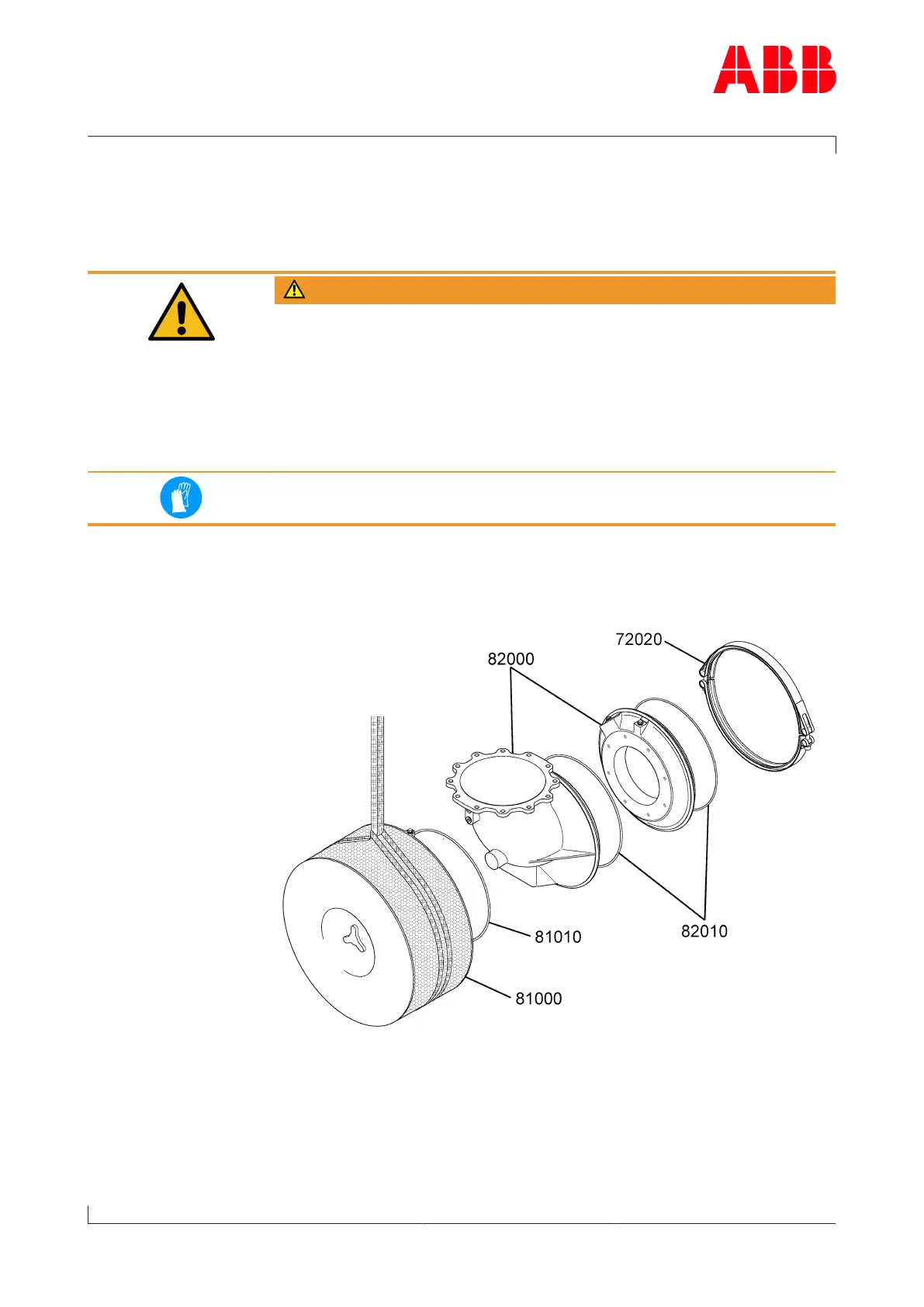

Removing the compressor casing
WARNING
Risk of burning
Touching hot surfaces or contact with hot operating materials can lead
to serious burns.
u Do not touch hot surfaces and heed the warning plate on the tur-
bocharger.
u Wear heat-resistant safety gloves and protective clothing.
u Allow the turbocharger to cool down before carrying out any work.
Wear safety gloves to protect against thermal hazards.
u Disconnect all air lines in accordance with the enginebuilder’s instruc-
tions.
If provided
u Remove the screws for the compressor casing insulation and dis-
mantle the insulation.
u Undo the V-clamp (72020) and remove the filter silencer (81000) or air
suction branch (82000).
